Condenser Fan: Testing and Inspection
A/C Condenser Fan Assembly Inspection -

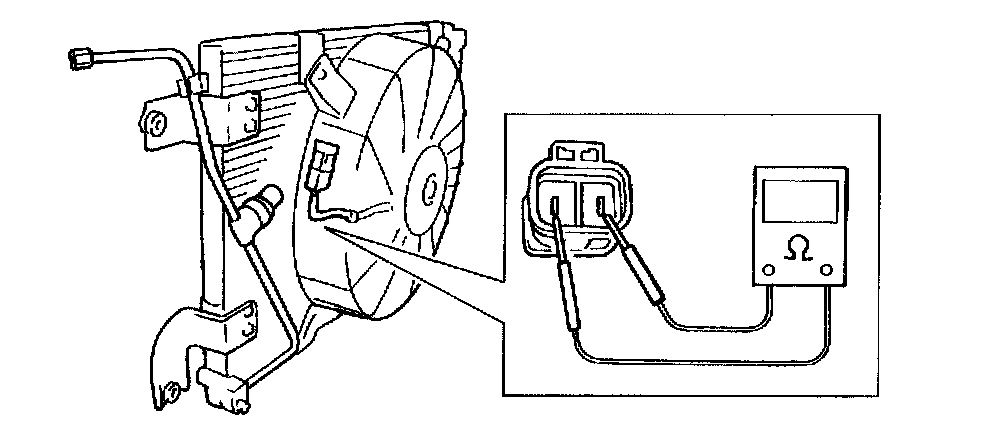

Check continuity between terminal to terminal as shown in figure.
If check results are continuity, proceed to next operation check. If not, replace.
-

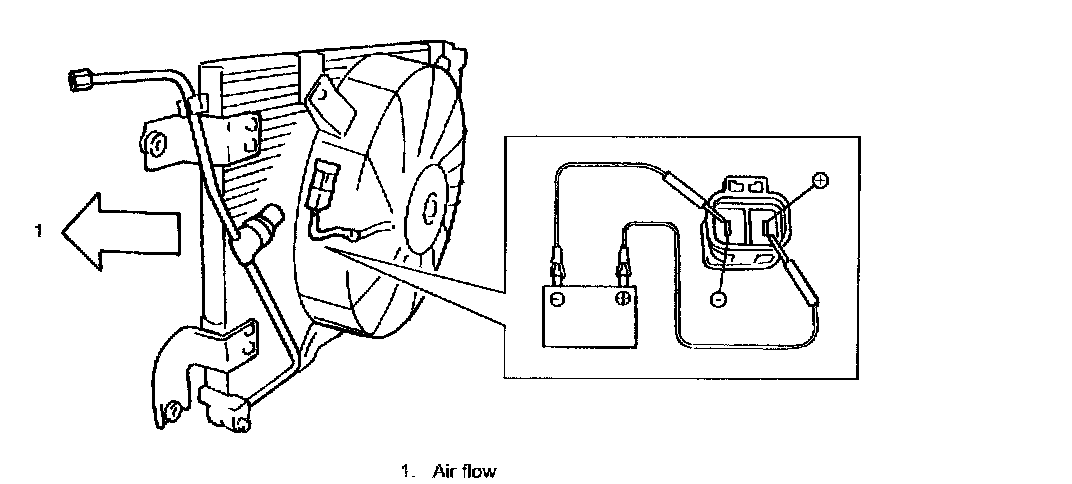

Connect battery to condenser fan motor as shown, then check that the condenser fan motor operates smoothly.
Reference current for A/C condenser fan
8 - 12 A at
12 V
