Rear A/C Evaporator Temperature Controller
1.

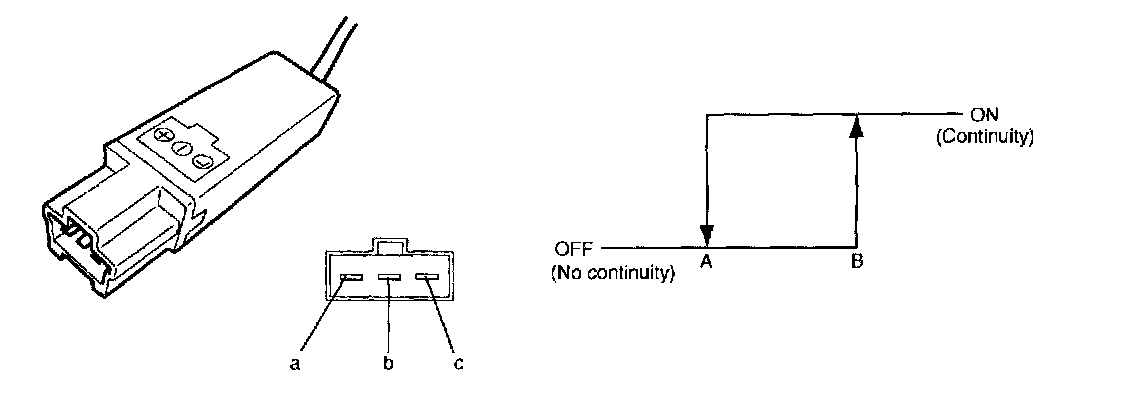

Connect battery positive (+) cable to terminal "b" and battery negative (-) cable to terminal "c" as shown.
2.
Using ohmmeter, check continuity between terminal "a" and terminal "b" at specified temperature as shown.
Rear A/C evaporator temperature controller specification
"A": Approximately
3.5 °C (38.3 °F) "B": Approximately
5.0 °C (41 °F)
