Evaporator Temperature Sensor / Switch: Testing and Inspection
A/C Evaporator Thermistor (Evaporator Temperature Sensor)Check resistance between A/C evaporator thermistor terminals.
Check results are as not specified, replace thermistor.

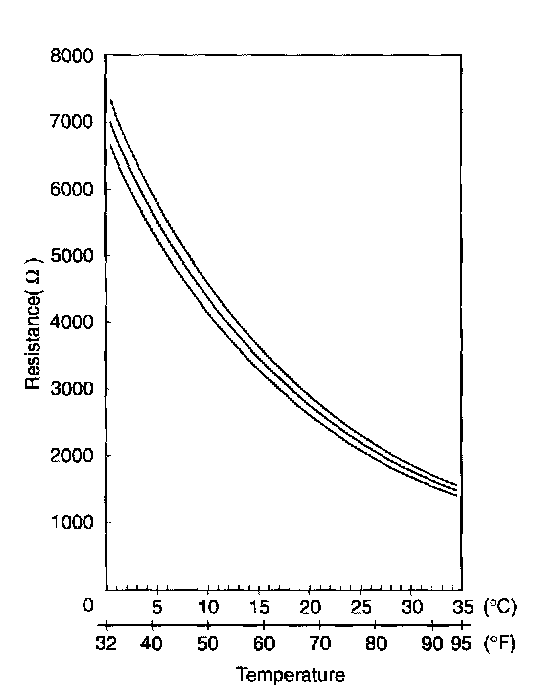

Evaporator thermistor resistance
7.0 - 7.7 kOhm at
0 °C (32 °F)2.1 - 2.4 kOhm at
25 °C (77 °F)
