Heater Control Valve Cable: Service and Repair

Removal




1. Remove heater control lever assembly. Refer to "Heater Control Lever Assembly Removal and Installation:".

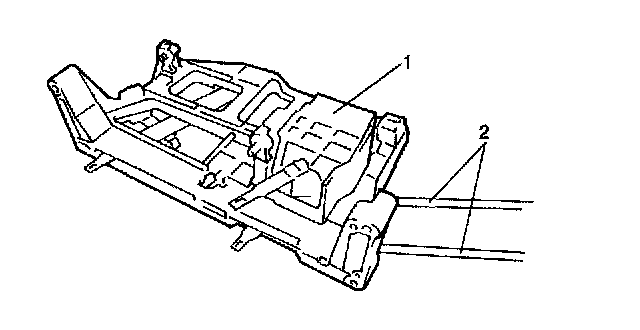

2. Disconnect control cables (2) from control lever assembly (1).

Installation
Install in reverse order of removal procedure and fix each cable with clamp in position referring to "Heater Control Lever Assembly Removal and Installation:".
- After installing control cables be sure that control levers move smoothly and stop at proper position.

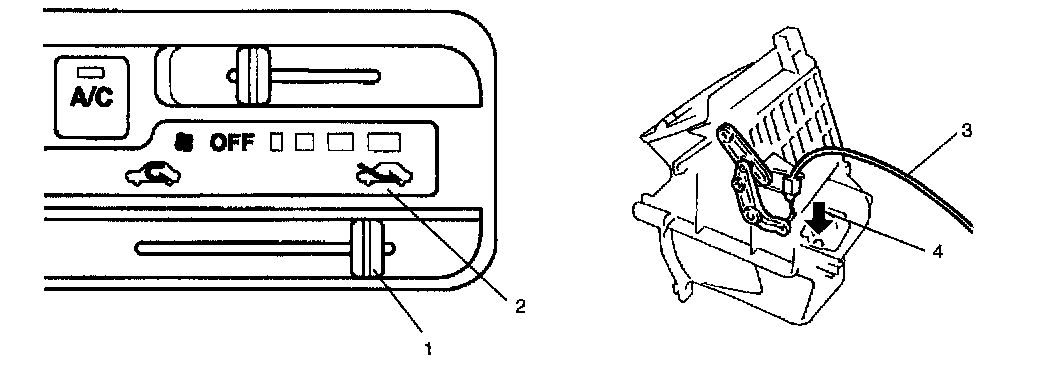

- Move control lever (1) to FRESH position (2), then push lever fully in arrow direction (4) and fix cable (3) with clamp in position as shown in the figure.
