Inspection

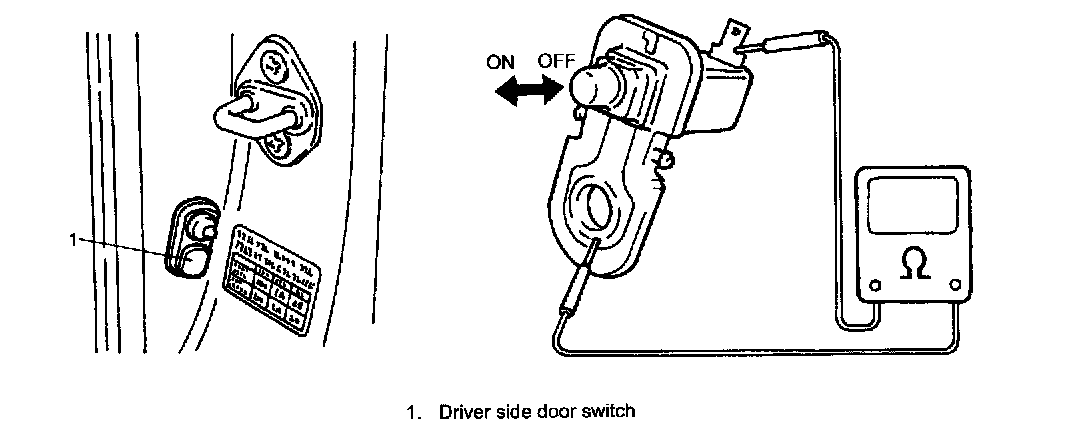

Driver Side Door Switch Inspection
Use an ohmmeter to check switch for continuity. If found defective, replace switch.

Driver side door switch specification
OFF position (Door closed): No continuity
ON position (Door open): Continuity
