Fog/Driving Lamp: Service and Repair

Removal
1. Disconnect negative (-) cable at battery.
2. Remove front fender lining.
3. Disconnect front fog light coupler.

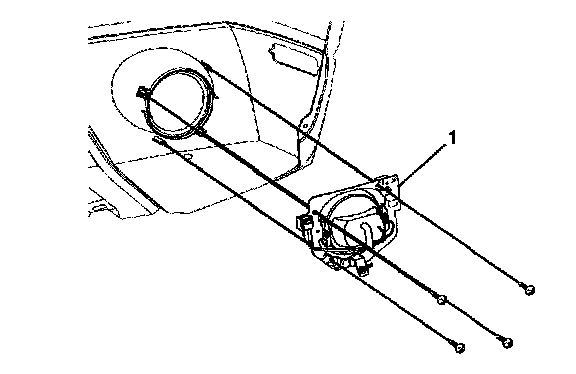

4. Remove front fog light from front bumper (1).

Installation
Reverse removal procedure for installation nothing the following:

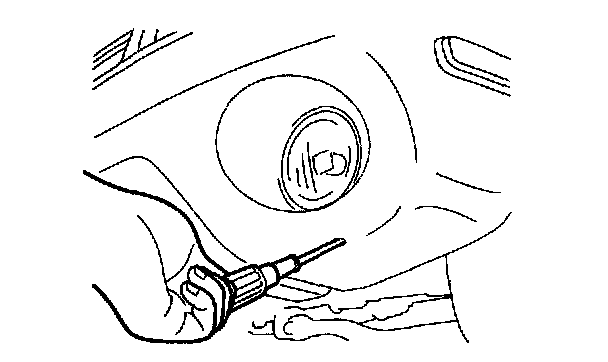

- After installing, adjust aiming with adjusting screw according to local regulation if obligated.
- Unless otherwise obligated by local regulations, check aiming adjusting screw height "a" before installing and adjust it if it is not specified height below.

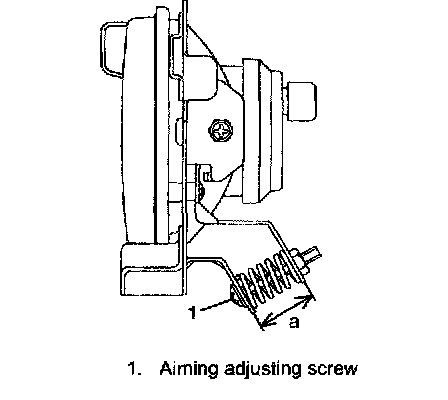

Aiming adjusting screw height "a": 24.5 mm (0.964 in.)
