Drive Belt: Testing and Inspection

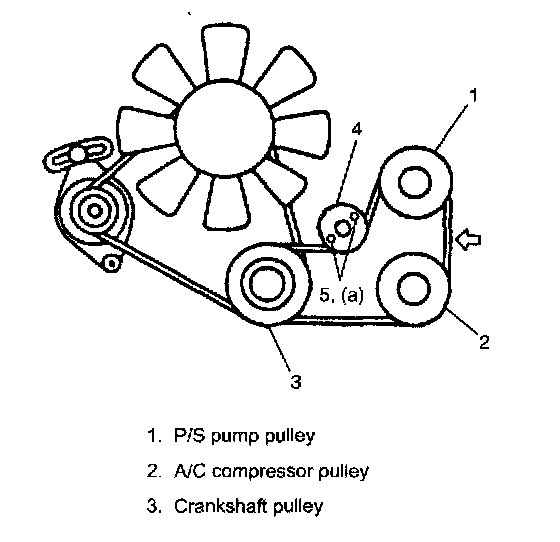

A/C Compressor Drive Belt Inspection 1.
To adjust A/C compressor drive belt tension, loosen tension pulley bolts (5) and turn tension pulley (4) using hexagon wrench.
2.
Adjust belt tension to specification.
Then tighten tension pulley bolts to specified torque.
Tightening torque
Tension pulley bolt (a):
25 N.m (2.5 kg-m, 18.5 lb-ft)
