Fluid - A/T: Service and Repair

A/T Fluid Change
1. Lift up vehicle.

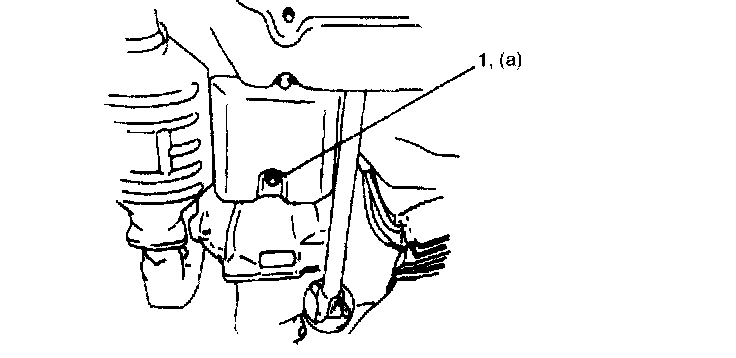

2. With engine is cool, remove drain plug (1) from oil pan and drain A/T fluid.





3. Install drain plug (1).
Tightening torque
A/T fluid drain plug (a): 23 Nm (2.3 kgf-m, 17.0 ft. lbs.)
4. Lower vehicle and fill proper amount of an equivalent of DEXRON (R)III.

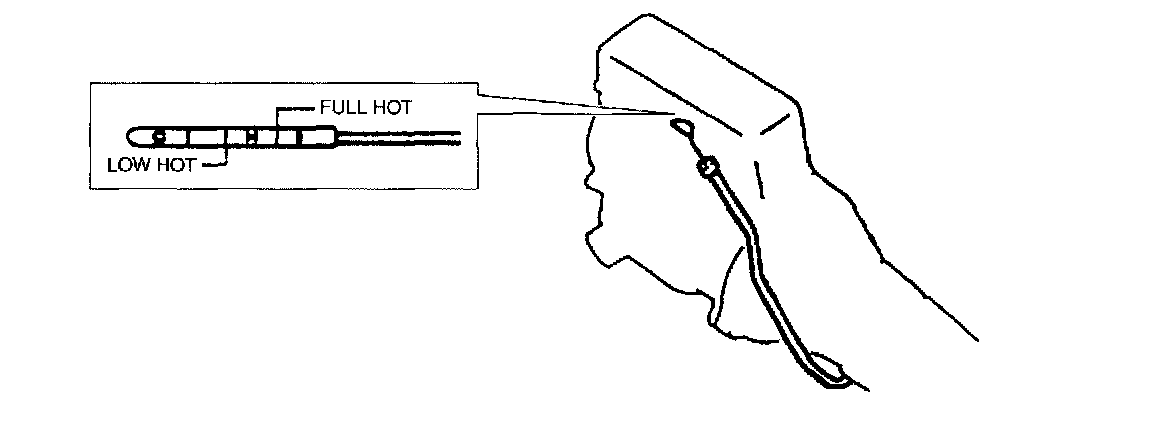

5. Check fluid level.
Fluid specification
An equivalent of DEXRON (R)III
Fluid capacity
When draining from drain plug hole: 2.5 liters (5.28/4.40 US/Imp.pt.)
When overhauling: 6.8 liters (14.37/11.97 US/Imp.pt.)
