Drivetrain - Rear Axle/Wheel Bearing Service Update

XL-7

Section Title: Suspension
TSB No. TS 01 10224

Division: Automotive
Category: Technical

SUBJECT:
SERVICE MANUAL UPDATE ON REAR SUSPENSION AXLE SHAFT
AND WHEEL BEARING SERVICE PROCEDURE

MODEL(S):
XL-7 (JA627)

YEAR:
2001-2004

CONDITION:
Service Manual update due to parts change.





CAUSE:

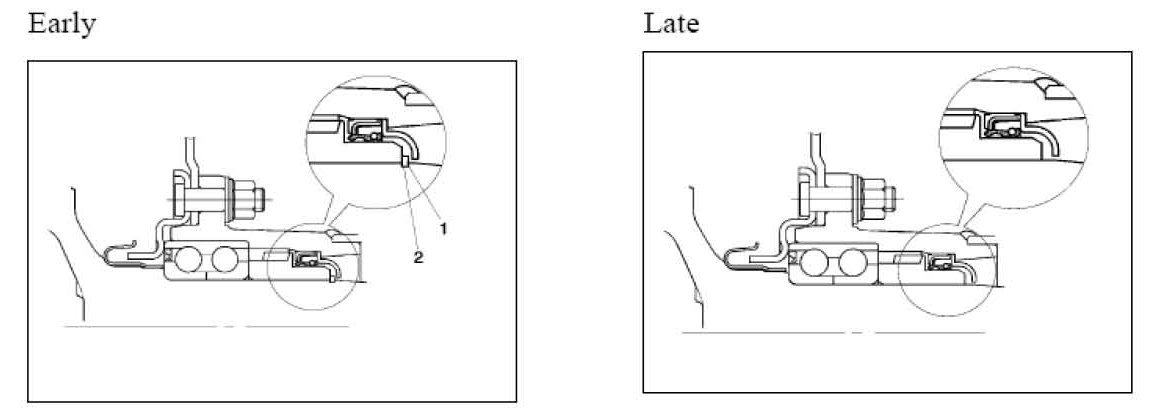

The circlip (1) and circlip groove (2) in the axle have been discontinued on vehicles and spare parts produced starting July 2004.

CORRECTION:

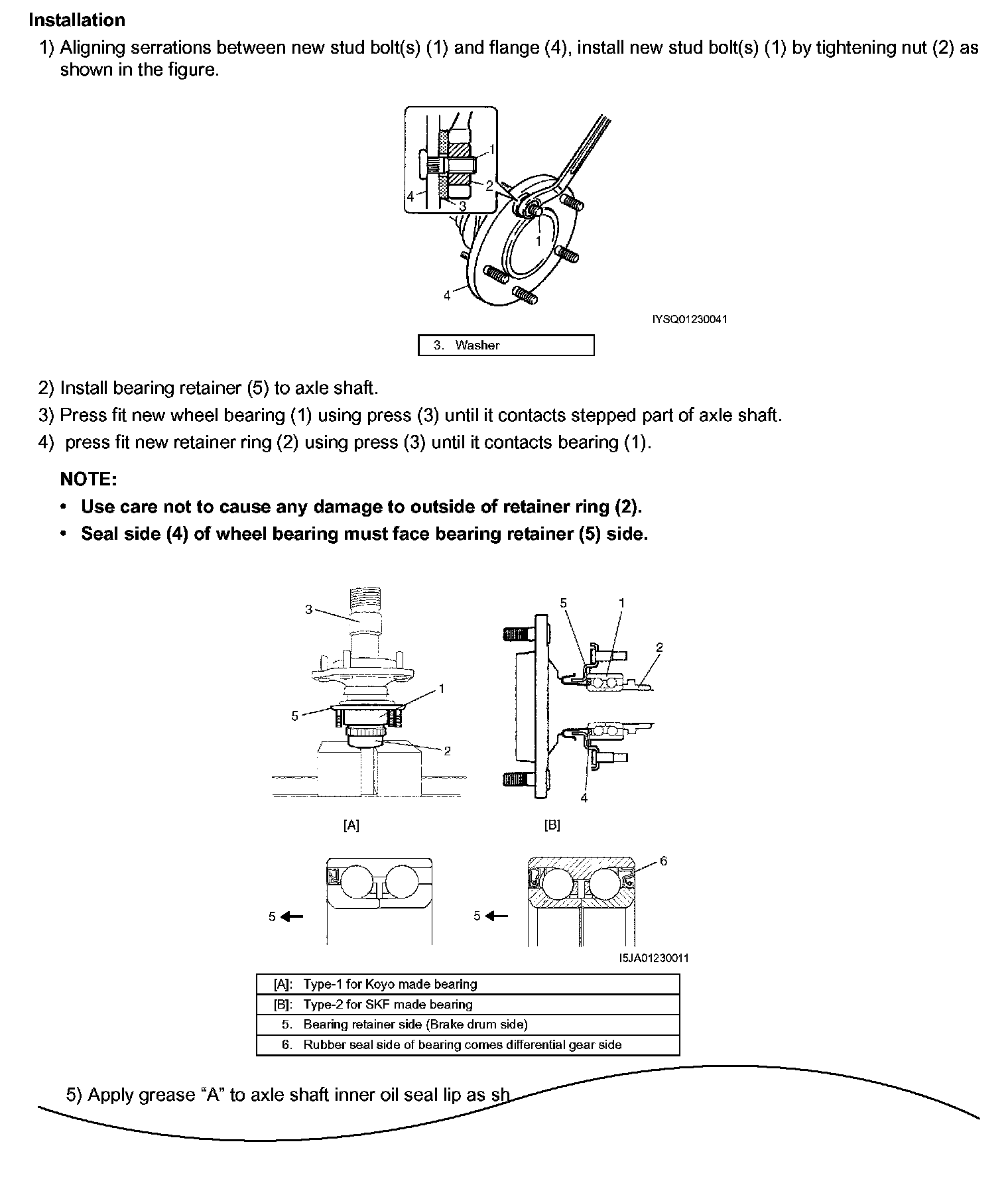

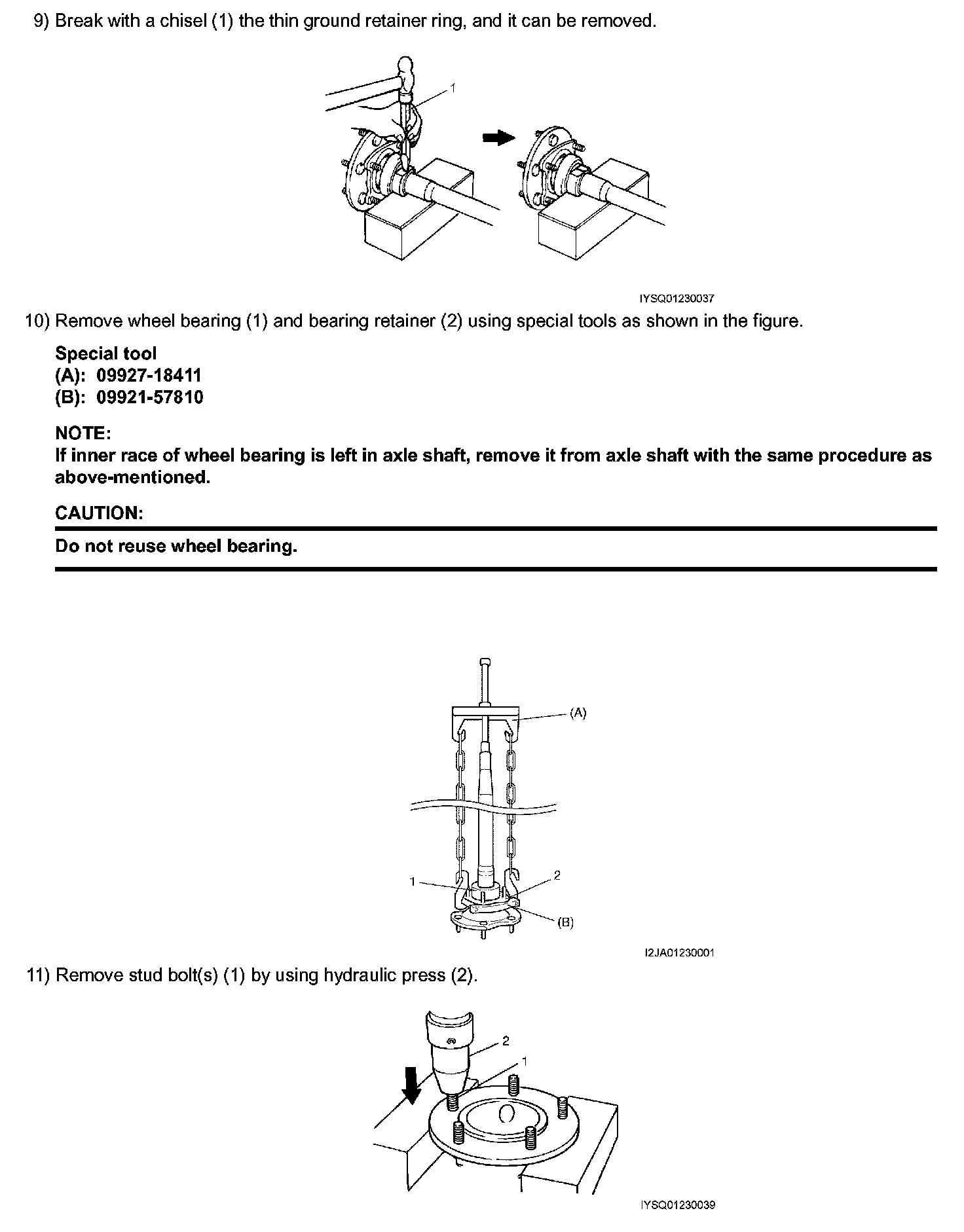

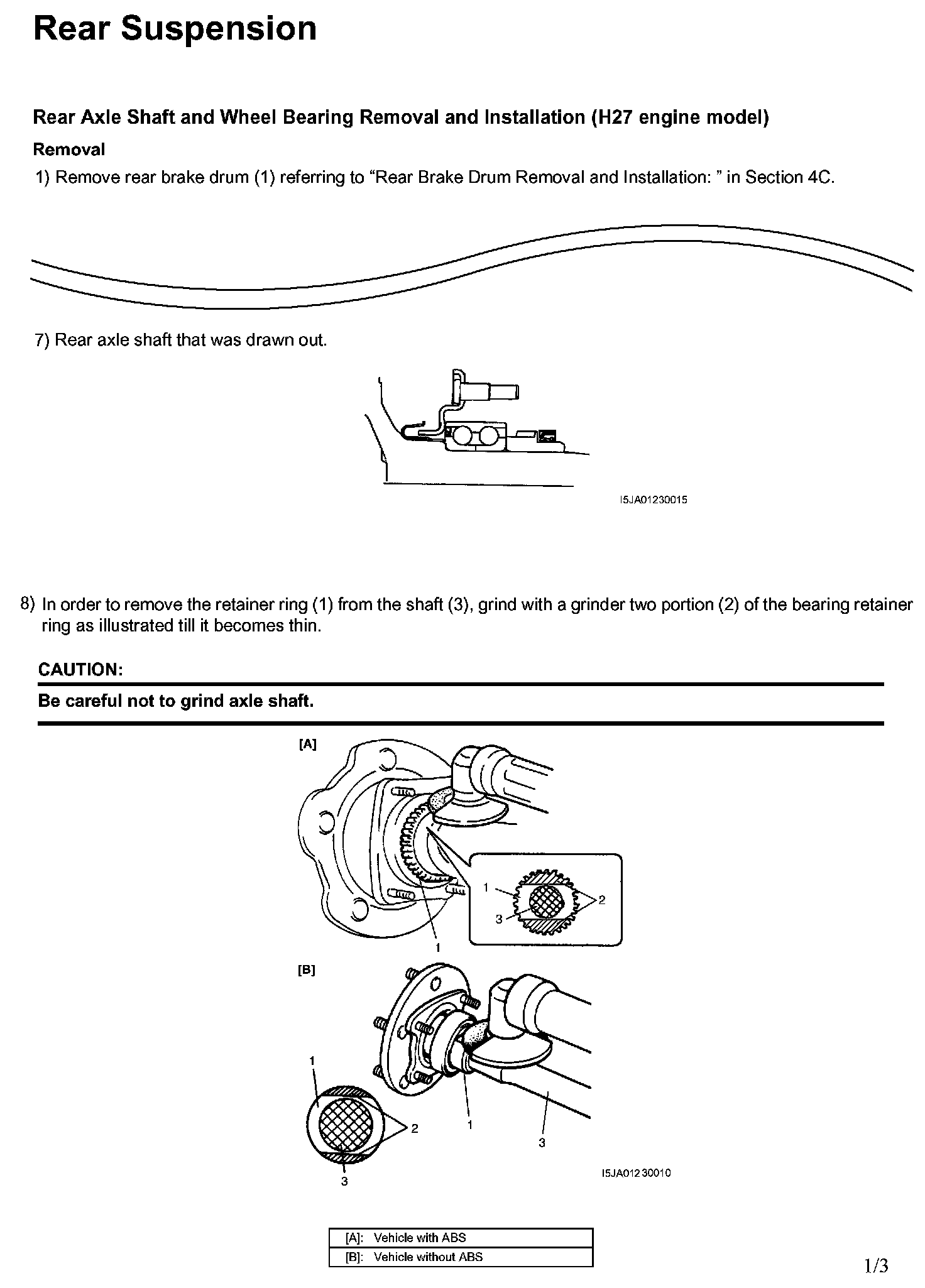

Please update your Service Manual according to sheets.

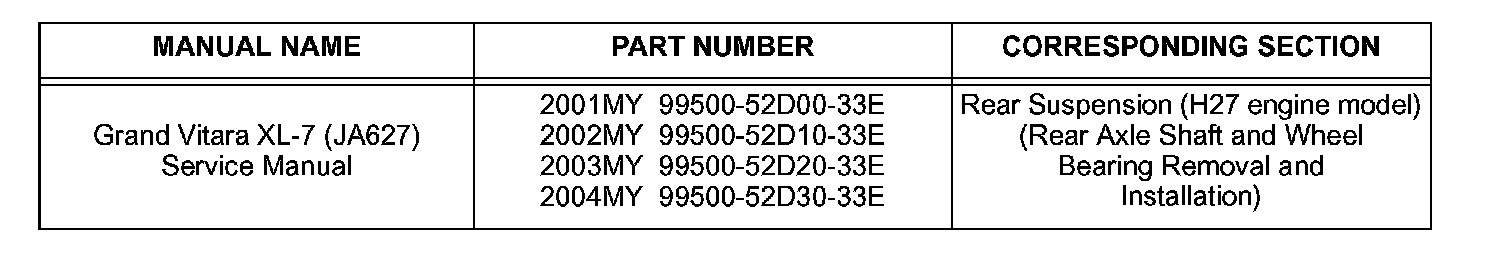

AFFECTED SERVICE MANUAL(S):
