Heated Oxygen Sensor Heater On-Vehicle Inspection
1.
Disconnect HO2S-1 or-2 coupler.
2.

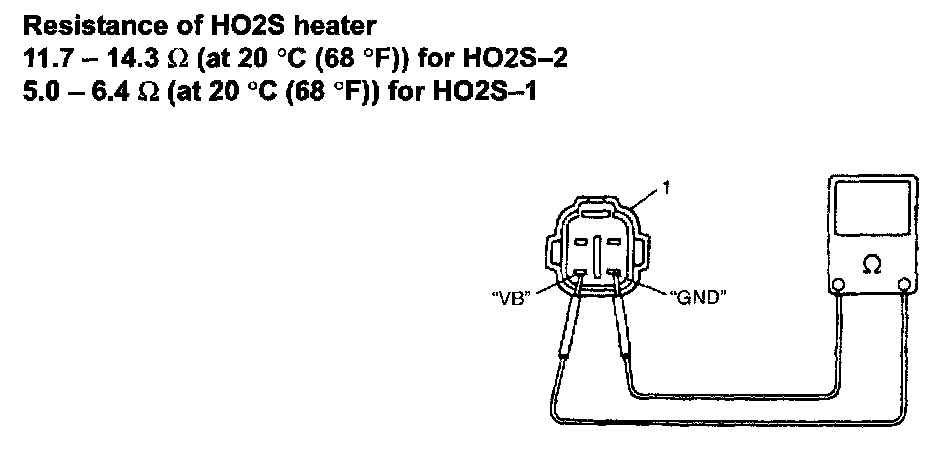

Using ohmmeter, measure resistance between terminals "VB" and "GND" of HO2S coupler (1).
If found faulty, replace HO2S.
NOTE: Temperature of HO2S affects resistance value largely. Make sure that HO2S heater is at correct temperature.
3.
Connect HO2S coupler securely.
