Fuel Pressure Control System Inspection

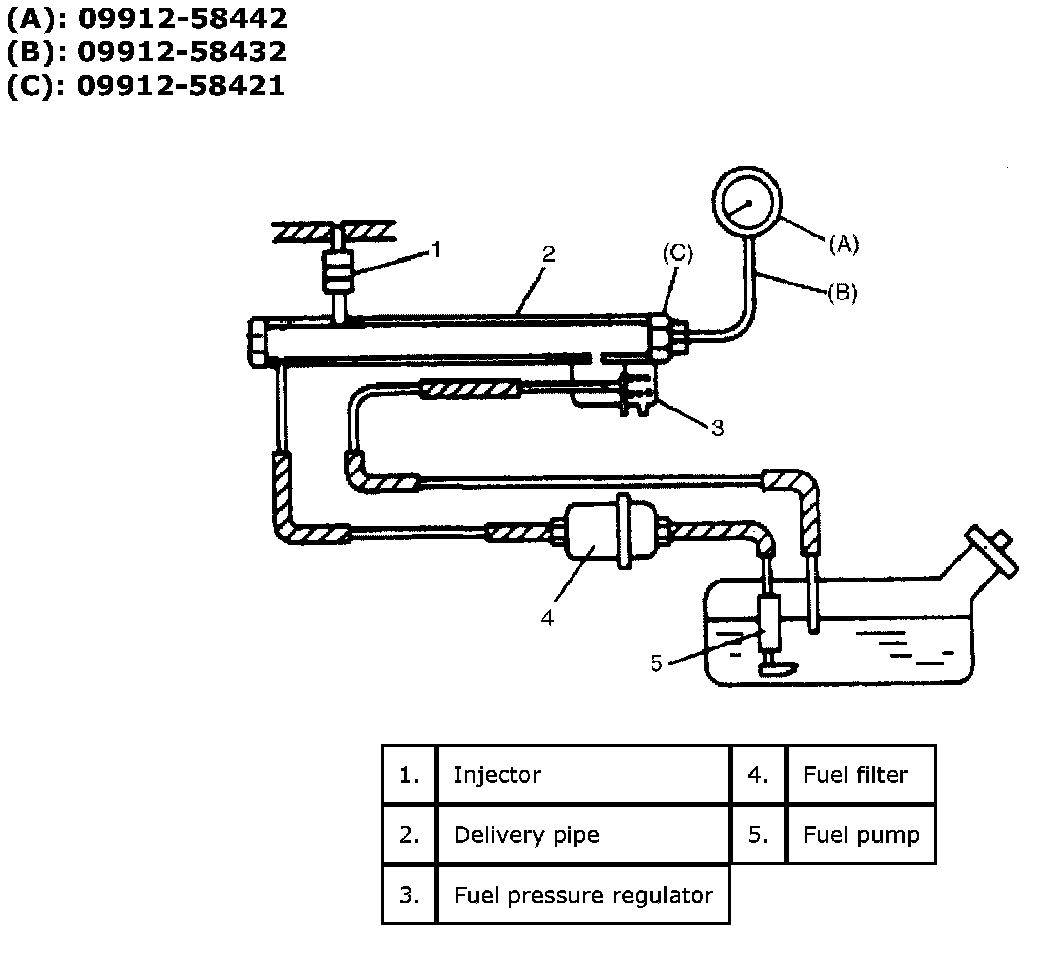

Fuel Pressure Control System InspectionSystem DiagramSpecial Tool(A): 09912-58442
(B): 09912-58432
(C): 09912-58421

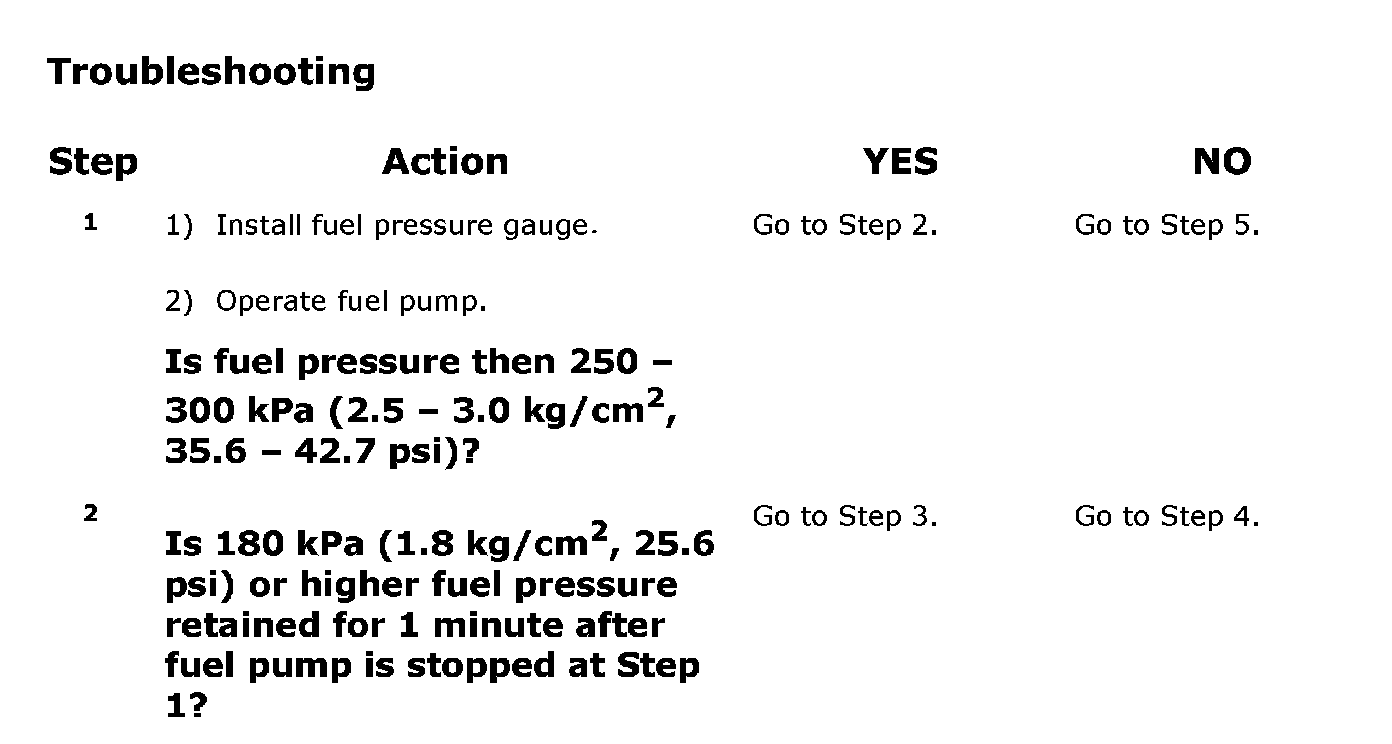

Step 1 - 2:

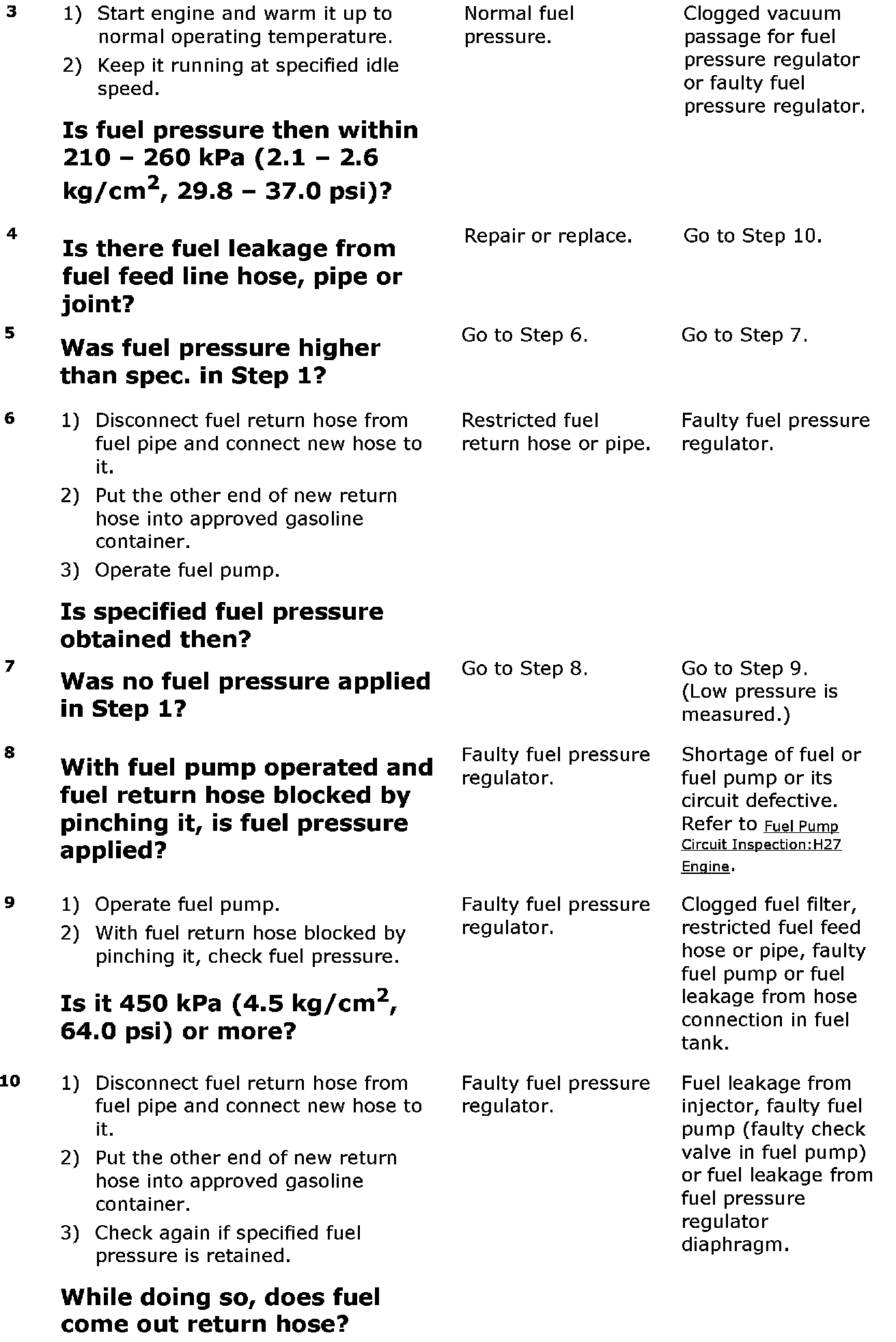

Step 3 - 10:
TroubleshootingNOTE: Before using the following flow, check to make sure that battery voltage is higher than
11 V. If battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in good condition.
