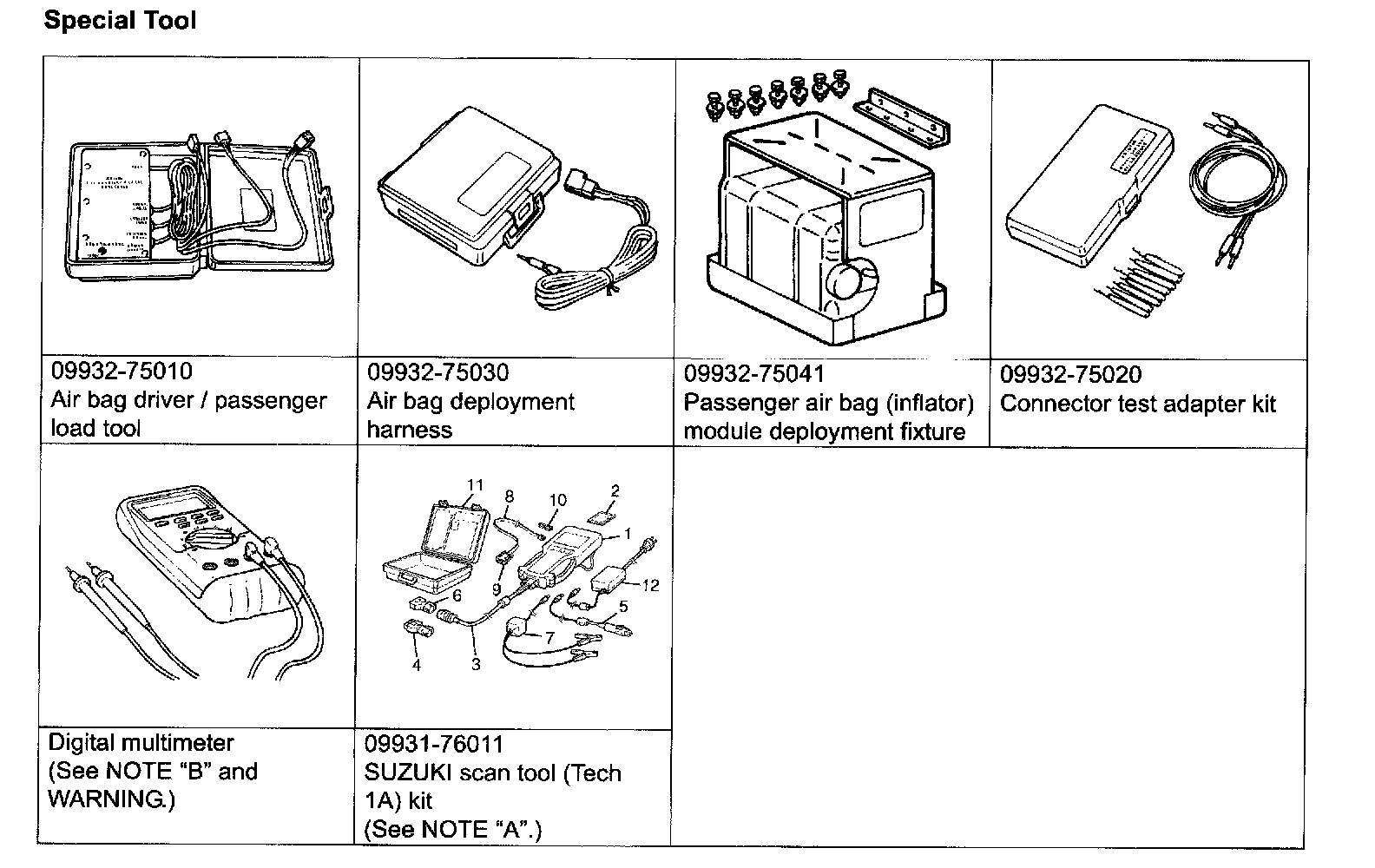

Air Bag Systems: Tools and Equipment






WARNING: Be sure to use the specified digital multimeter. Otherwise, air bag deployment or personal injury may result.

NOTE:
- "A": This kit includes the following items.
1.Tech 2, 2. PCMCIA card, 3. DLC cable, 4. SAE 16/19 adapter, 5. Cigarette cable, 6. DLC loopback adapter, 7. Battery power cable, 8. RS232 cable, 9. RS232 adapter, 10. RS232 loopback connector, 11. Storage case, 12. Power supply
- "B": Digital multimeter specification: The maximum test current is 10 mA or less at the minimum range of resistance measurement.
