Stator: Testing and Inspection
Stator -

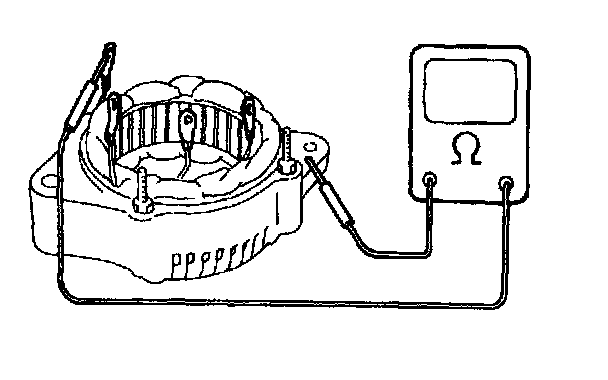

Using ohmmeter, check all leads for continuity. If there is no continuity, replace
stator.
-

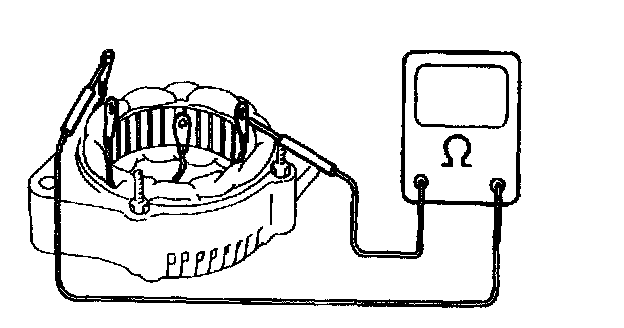

Using ohmmeter, check that there is no continuity between coil leads and
stator core. If there is continuity, replace stator.
