Ignition Switch and Door Switch Circuit

Ignition Switch and Door Switch Circuit
1. Disconnect negative (-) cable at battery.
2. Disconnect coupler of power door lock and keyless entry controller, and connect negative (-) cable at battery.

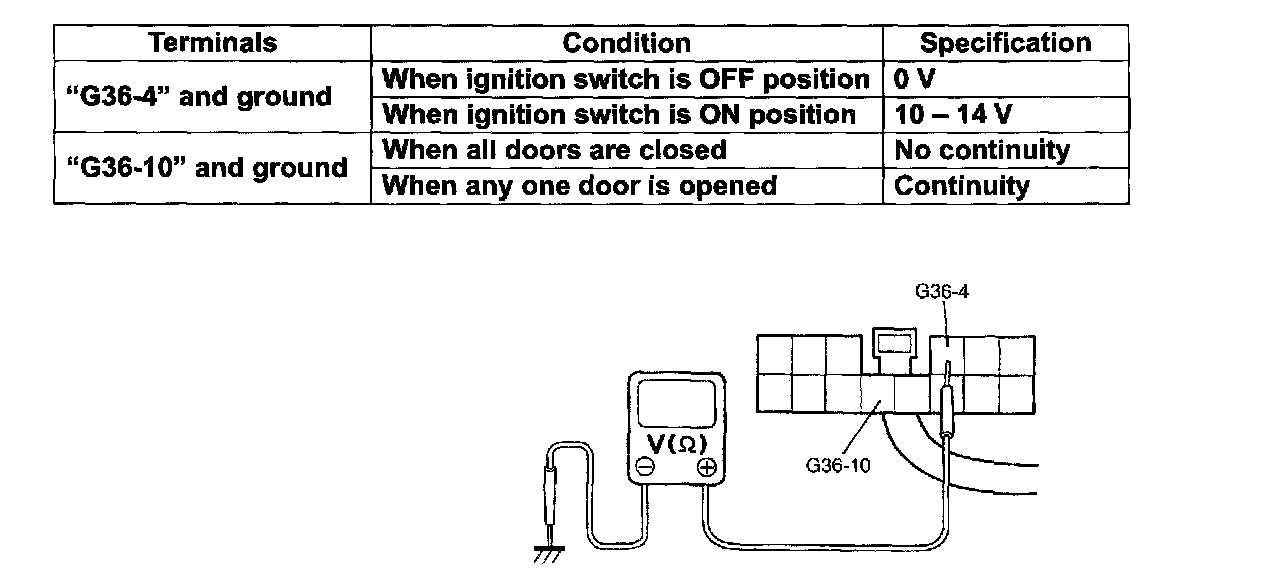

3. Check that the voltage and resistance between the following terminals are specifications. If check result is satisfactory, this circuit is OK.




Ignition switch and door switch circuit (for keyless entry controller) specification
