Electronic Shift Control System

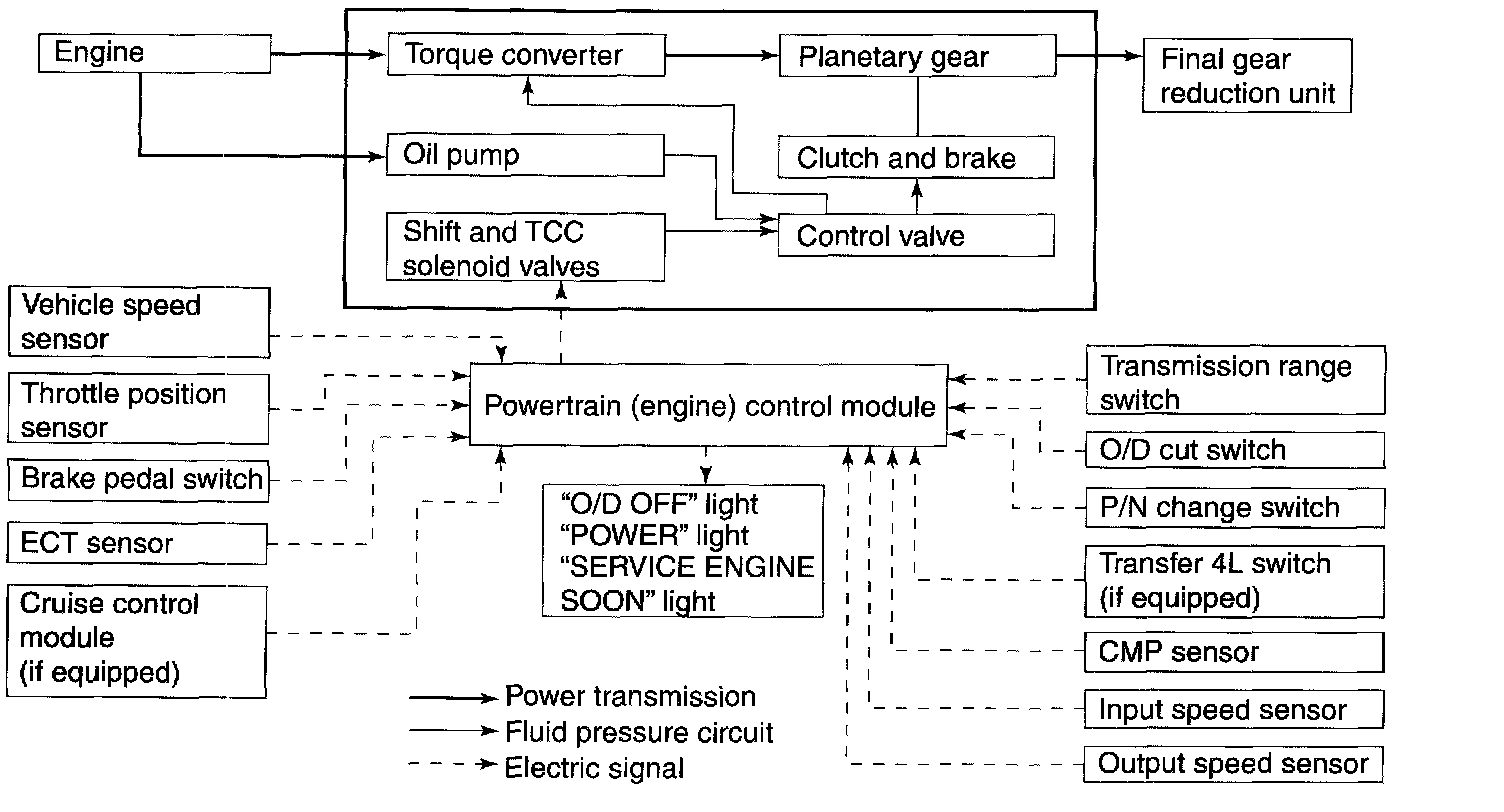

Electronic Shift Control System Description





The gear ratio change in "D" or "2" range and torque converter clutch operation are controlled by Powertrain (Engine) Control Module.

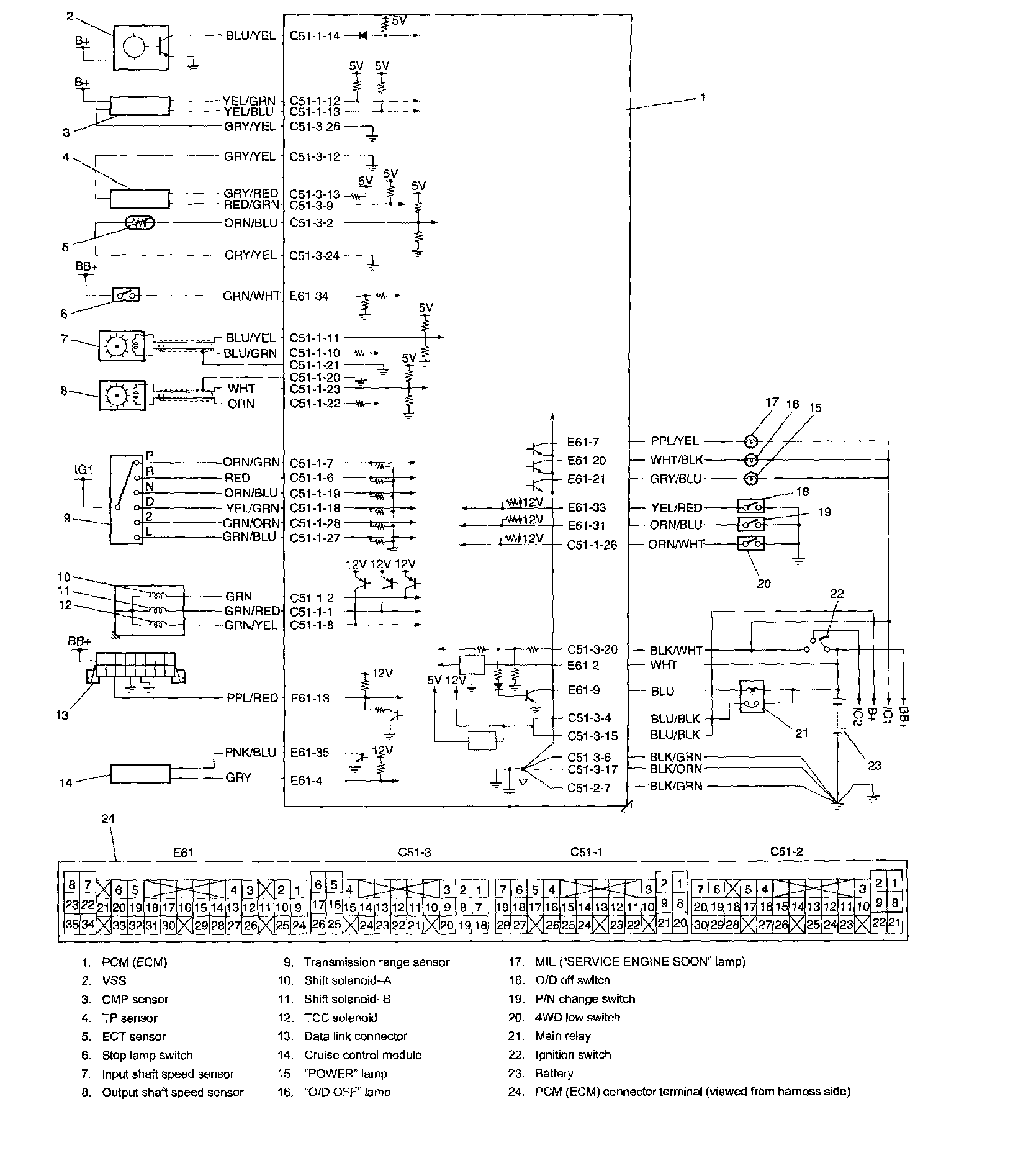

Electronic Shift Control System Wiring Diagram

Fail Safe Function





This function is provided by the safe mechanism that assures safe driveability even when the shift solenoid valve or speed sensor fails.

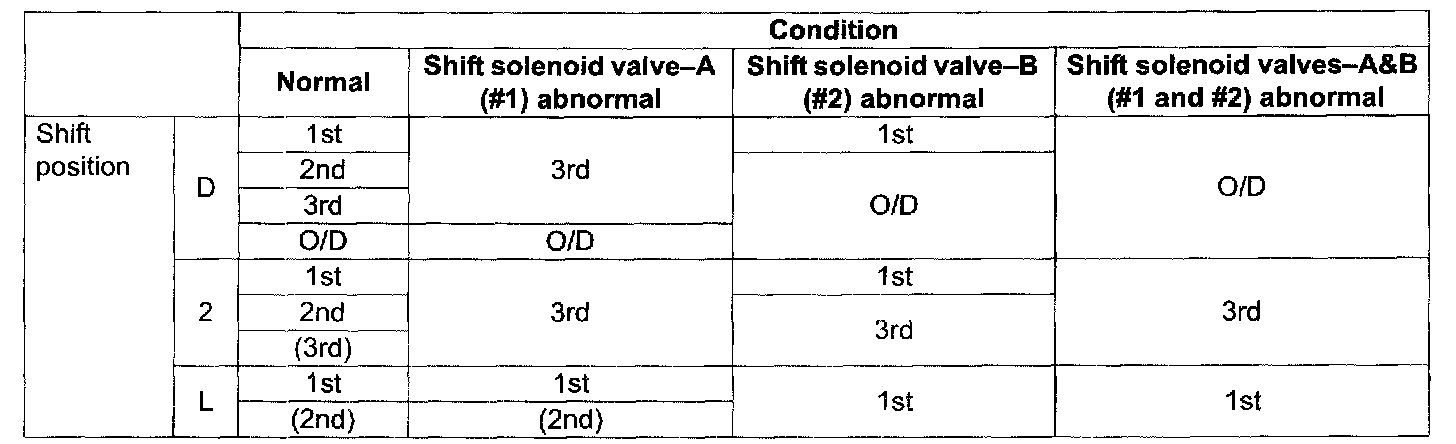

The table below shows the gear position in each shift under a normal/abnormal condition.

Change Mechanism





The same select pattern shift lever is used as the floor type and frequently used "N" and "D" ranges are made selectable freely.

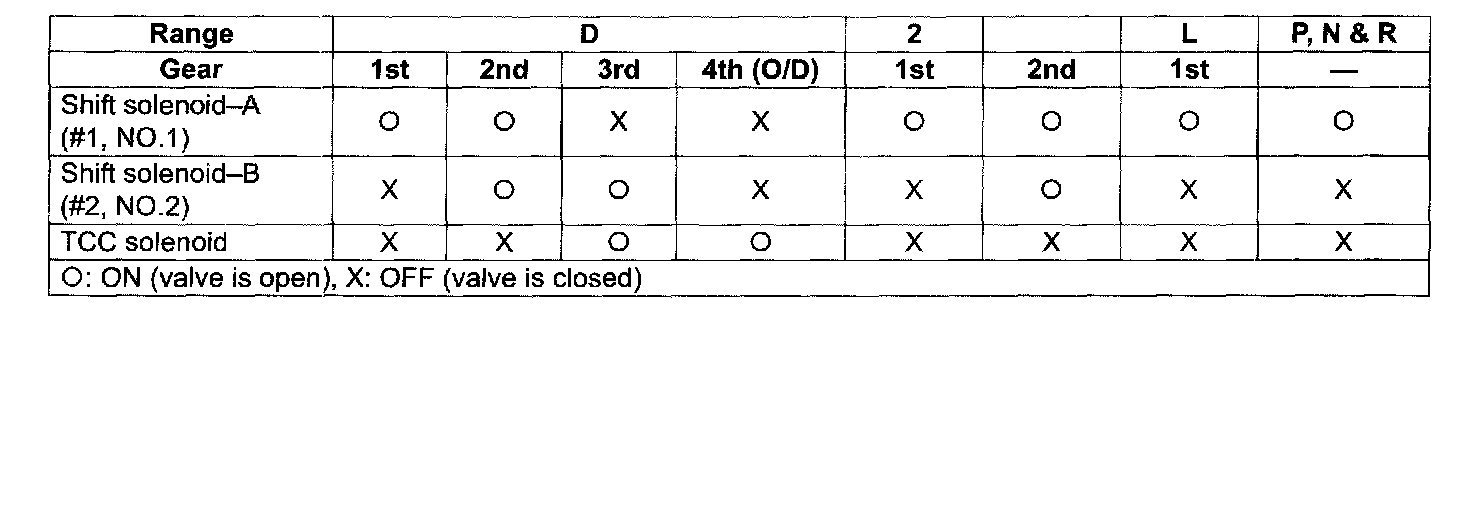

Operation of Shift Solenoids and TCC Solenoid
