Front Door Window Regulator: Service and Repair

Front Door Window Regulator Removal and Installation

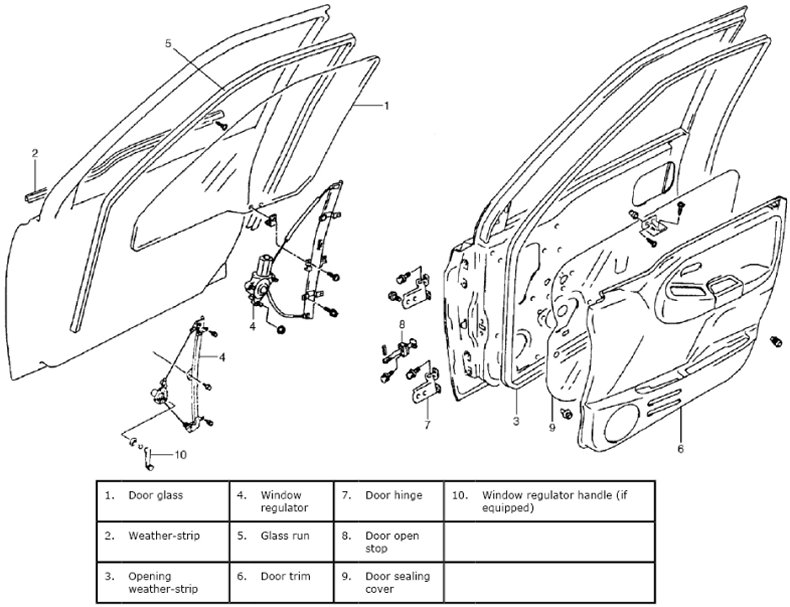

Front Door Glass Components:






Removal
1. Remove door glass.
2. Disconnect power window motor lead wire at coupler and loosen clamp.

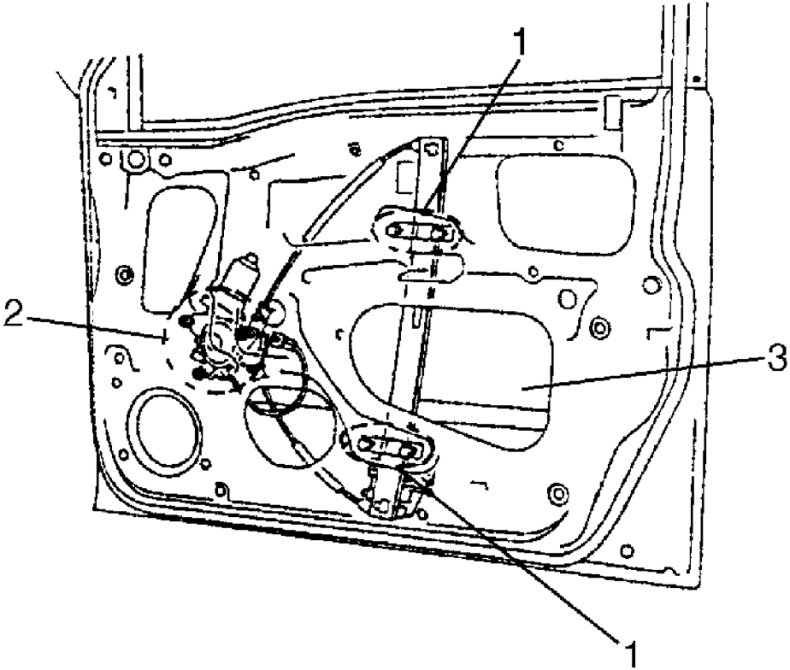

3. Loosen regulator mounting bolts (1), nuts (2) and take out regulator through hole (3) as shown in the figure.







Installation
Reverse removal procedure to install window regulator noting the following point.

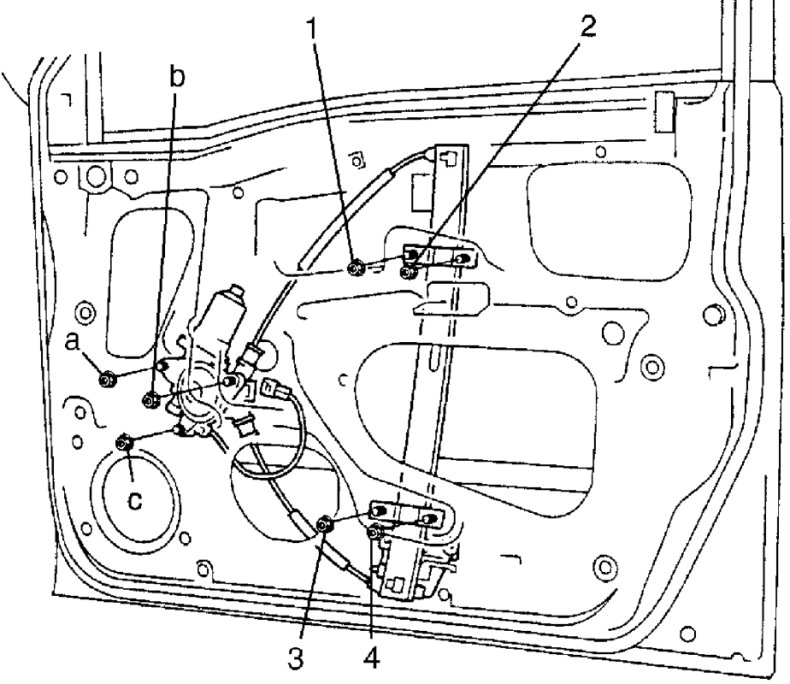

- Tighten bolts and nuts according to the order (a, b, c / 1, 2, 3, 4) shown in the figure.







- When installing glass, check that the top part of the glass contacts that the glass moves up and down smoothly.

If the glass is tilted with respect to the glass run, make a fine adjustment with the screws.
