Rear Door Window Regulator: Service and Repair

Rear Door Window Regulator Removal and Installation


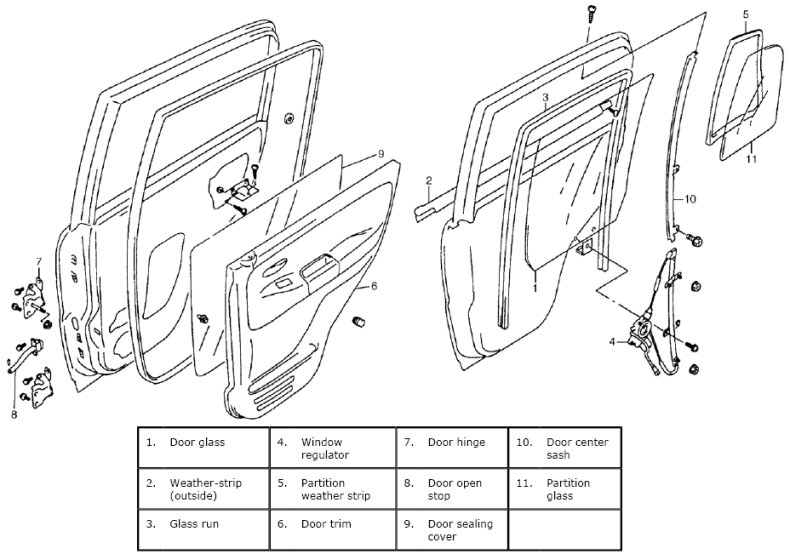

Rear Door Glass Components:






Removal
1. Remove door glass.
2. Disconnect power window motor lead wire at coupler and clamp.

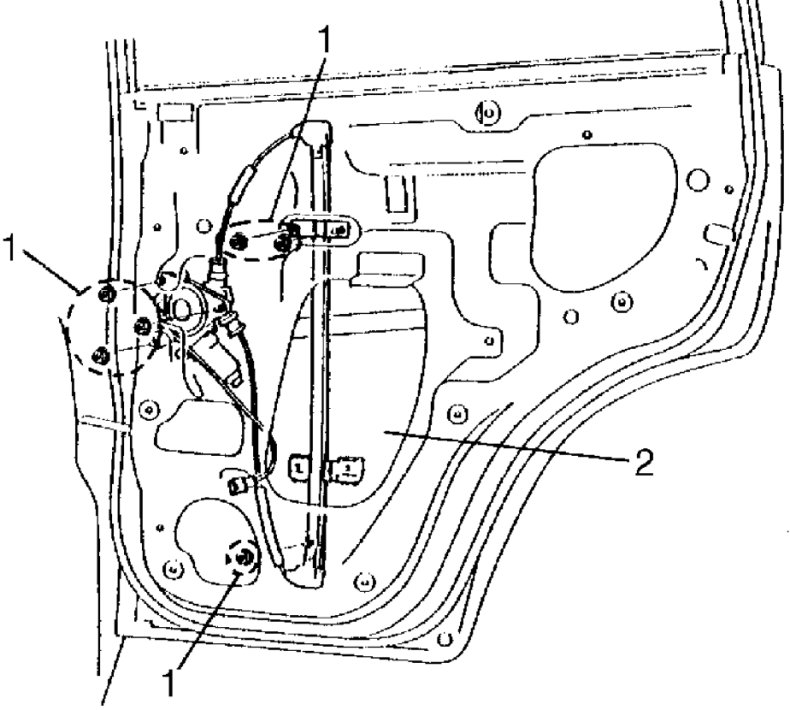

3. Remove door window regulator attaching nuts (6 pcs) (1), and take out regulator through hole (2) as shown in the figure.







Installation
Reverse removal sequence to install door window regulator noting the following points.

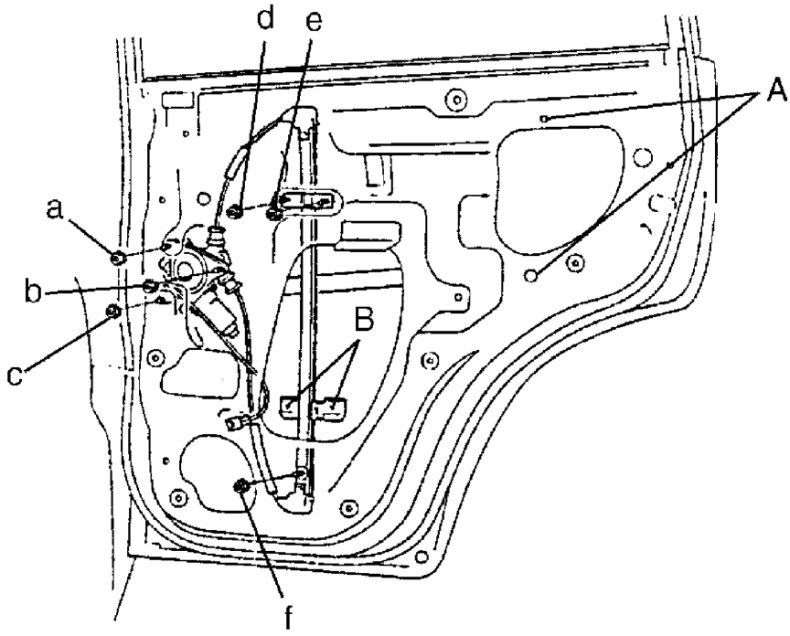

- Tighten regulator base nuts according to the order (a, b, c) shown in the figure.
- Adjust door window regulator according to the following procedure.
a. Loosen 3 nuts, 2 screws and 2 bolts.
b. Raise window fully.
c. Tighten 3 regulator rail nuts according to the order (d, e, f) shown in the figure and 2 center sash bolts A.
d. Lower window.
e. Tighten 2 screws B to specified torque. Tighten front screw first, then rear.

Tightening torque
Glass attaching screw (front and rear): 2.5 N.m (0.25 kg-m, 1.8 lbf-ft)







f. Check that the glass moves up and down smoothly and that the top part of the glass contacts the glass run evenly.

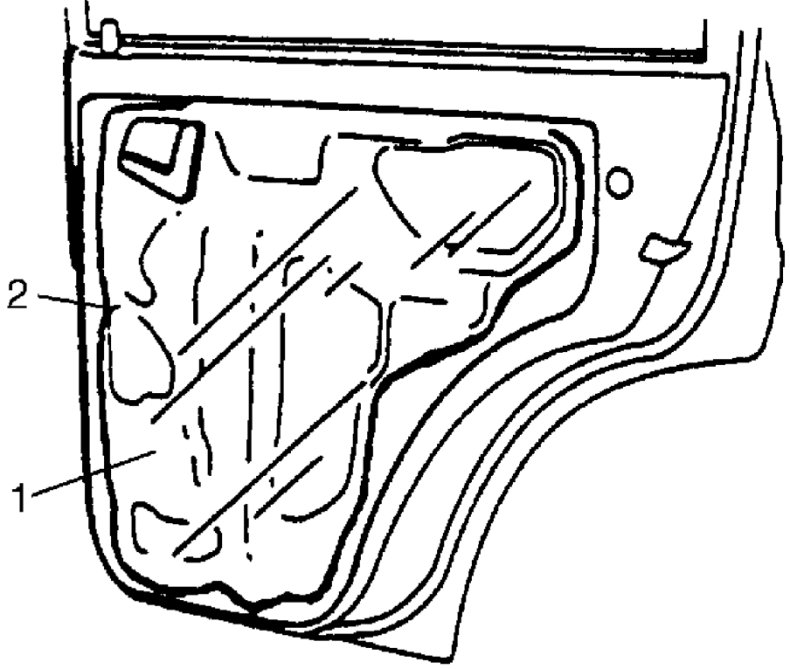

- Securely seal door sealing cover (1) with adhesive (2).
