Clutch Switch: Service and Repair

Clutch Pedal Position (CPP) Switch for Cruise Control Removal and Installation

Removal




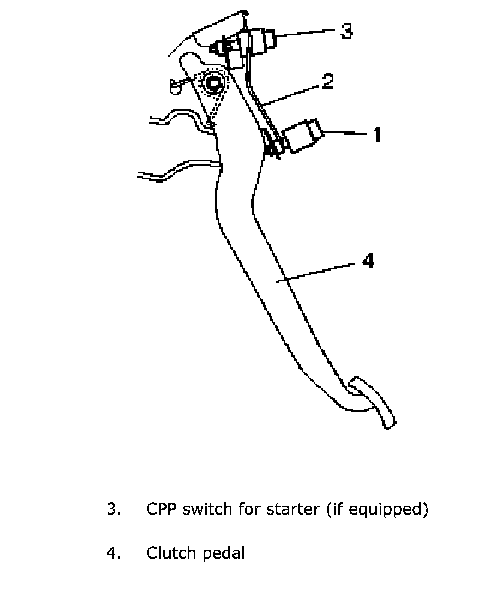

1. Disconnect CPP switch (1) connector with ignition switch OFF.
2. Remove CPP switch (1) from pedal bracket (2).

Installation
1. Install CPP switch (1) to pedal bracket (2).
2. Pull up clutch pedal (3).

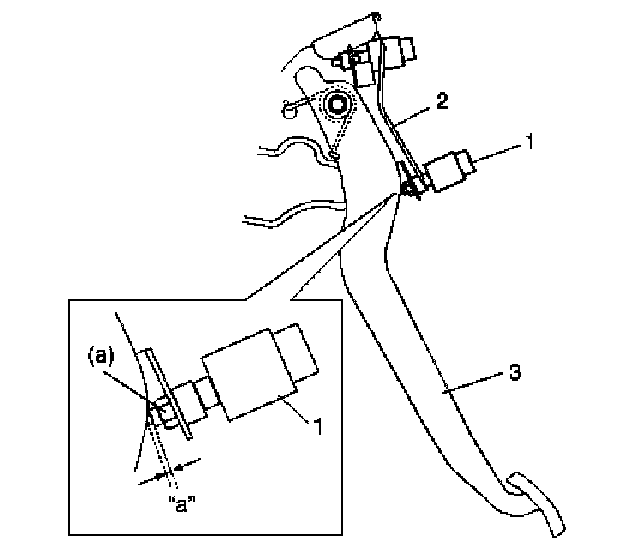

3. Adjust switch position so that clearance between end of thread and clutch pedal bracket is within specification.

Clearance "a" between end of thread and clutch pedal bracket: 1.5 - 2.0 mm (0.06 - 0.08 in)

4. Tighten lock nut to specified torque.

Tightening torque
CPP switch lock nut (a): 7.5 N.m (0.75 kg-m, 5.5 lb-ft)




5. Connect connector to CPP switch (1) securely.
