Clutch Switch: Testing and Inspection

Clutch Pedal Position (CPP) Switch for Cruise Control Inspection

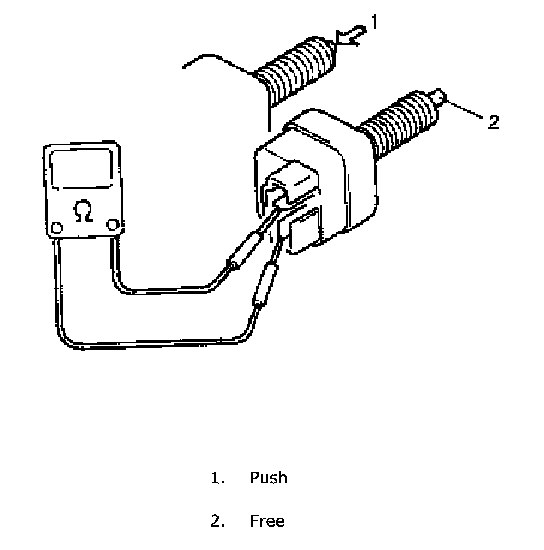

Check for resistance between terminals under each condition in the following. If check result is not satisfactory, replace.

CPP switch resistance
When switch shaft is free: Continuity
When switch shaft is pushed: No continuity
