Manifold Pressure/Vacuum Sensor: Testing and Inspection

Manifold Absolute Pressure (MAP) Sensor Inspection

1) Disconnect connector from MAP sensor.
2) Remove MAP sensor.

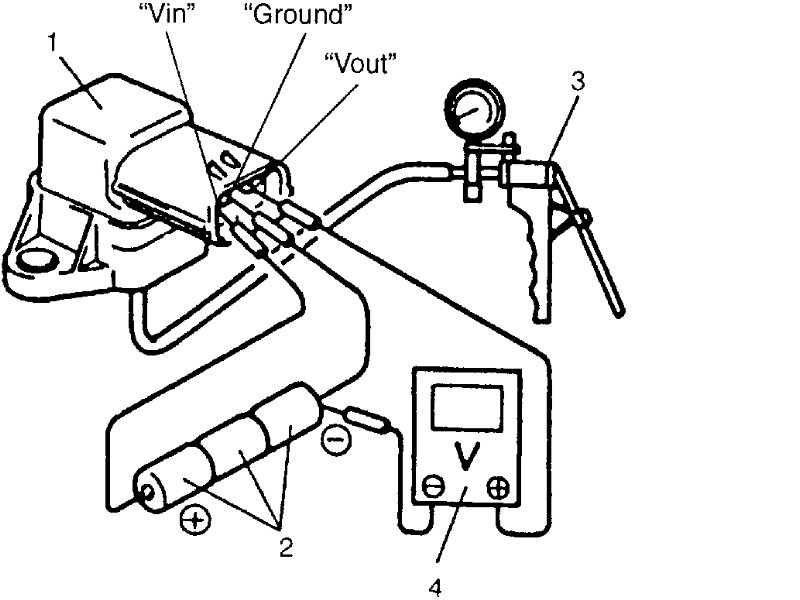

3) Arrange 3 new 1.5 V batteries (2) in series (check that total voltage is 4.5 - 5.0 V) and connect its positive terminal to "Vin" terminal of sensor and negative terminal to "Ground" terminal. Then check voltage between "Vout" and "Ground".

Also, check if voltage reduces when vacuum is applied up to 400 mmHg by using vacuum pump (3).

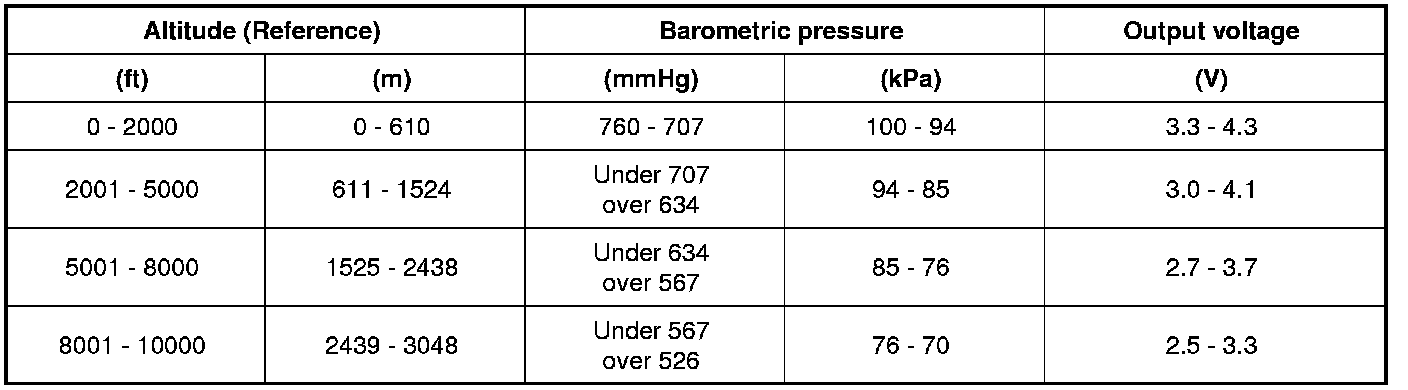

Output voltage (When input voltage is 4.5 - 5.5 V, ambient temp. 20 - 30 °C, 68 - 86 °F)






If check result is not satisfactory, replace MAP sensor (1).

4) Install MAP sensor (1) securely.
5) Connect MAP sensor (1) connector securely.
