Throttle Position Sensor: Service and Repair

Throttle Position (TP) Sensor Removal and Installation

Throttle Position (TP) Sensor On-Vehicle Inspection

Removal

1) Disconnect battery negative cable at battery.
2) Disconnect coupler from TP sensor.
3) Remove TP sensor from throttle body.

Installation

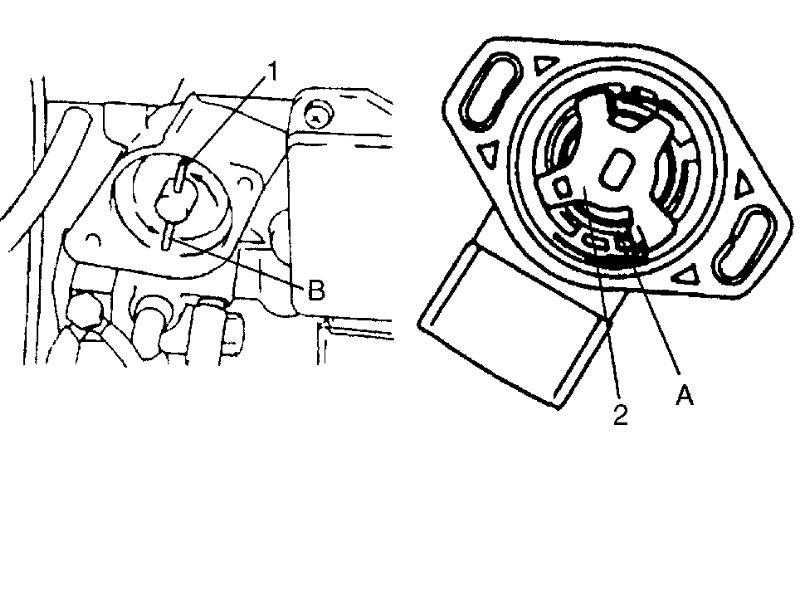

1) To install sensor, place it onto throttle body so that sensor pickup lever (2) can engage with throttle body lever (1).

A: Should engage with B





2) Hand-tighten TP sensor screws.
3) Connect coupler to TP sensor securely.
4) Connect battery negative cable to battery.
5) Adjust installation angle of TP sensor according to Adjustments Throttle Position (TP) Sensor Adjustment.
