A/C Signal Circuits Inspection

A/C Signal Circuits Check (Vehicle With A/C)

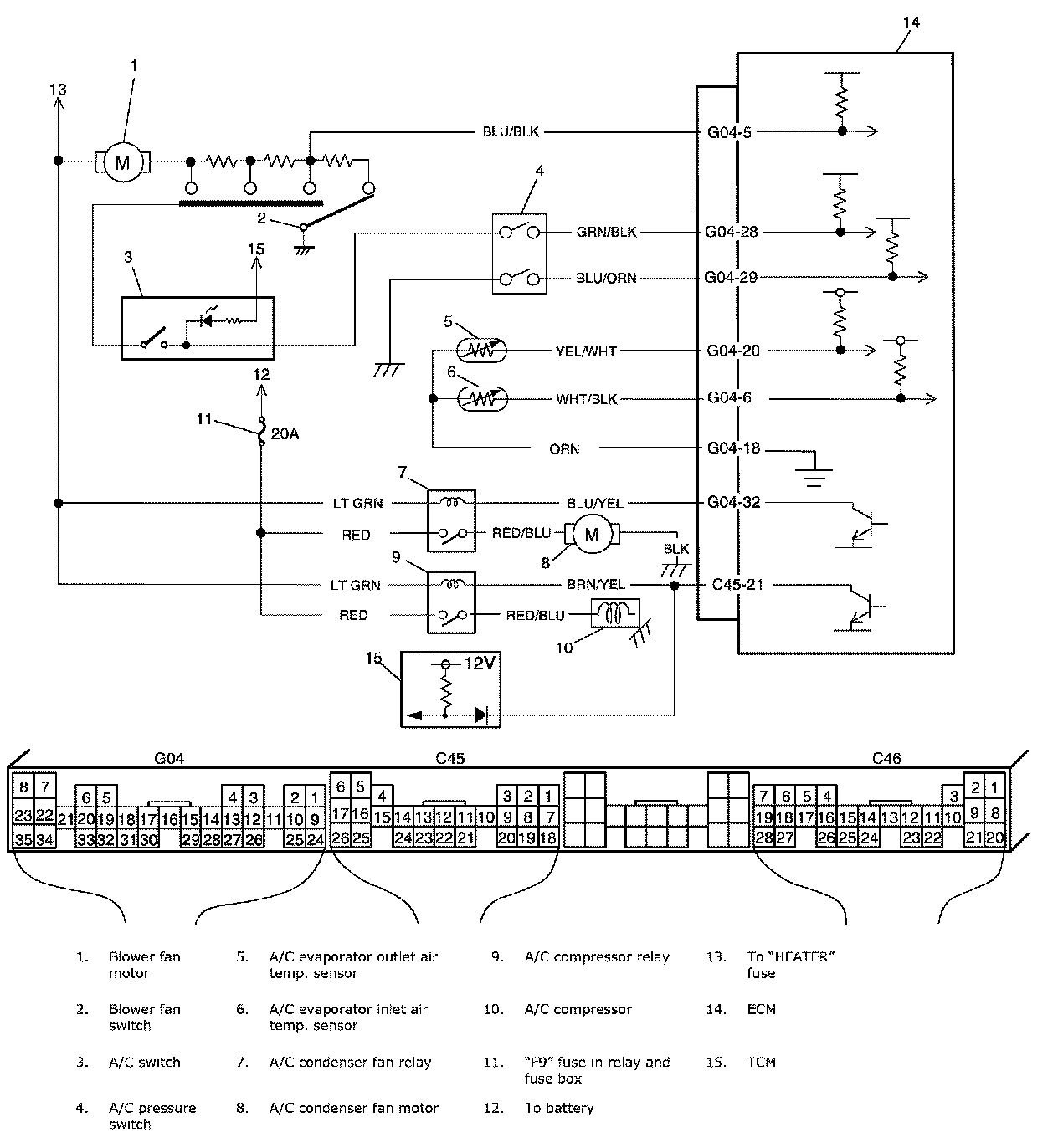

Wiring Diagram:

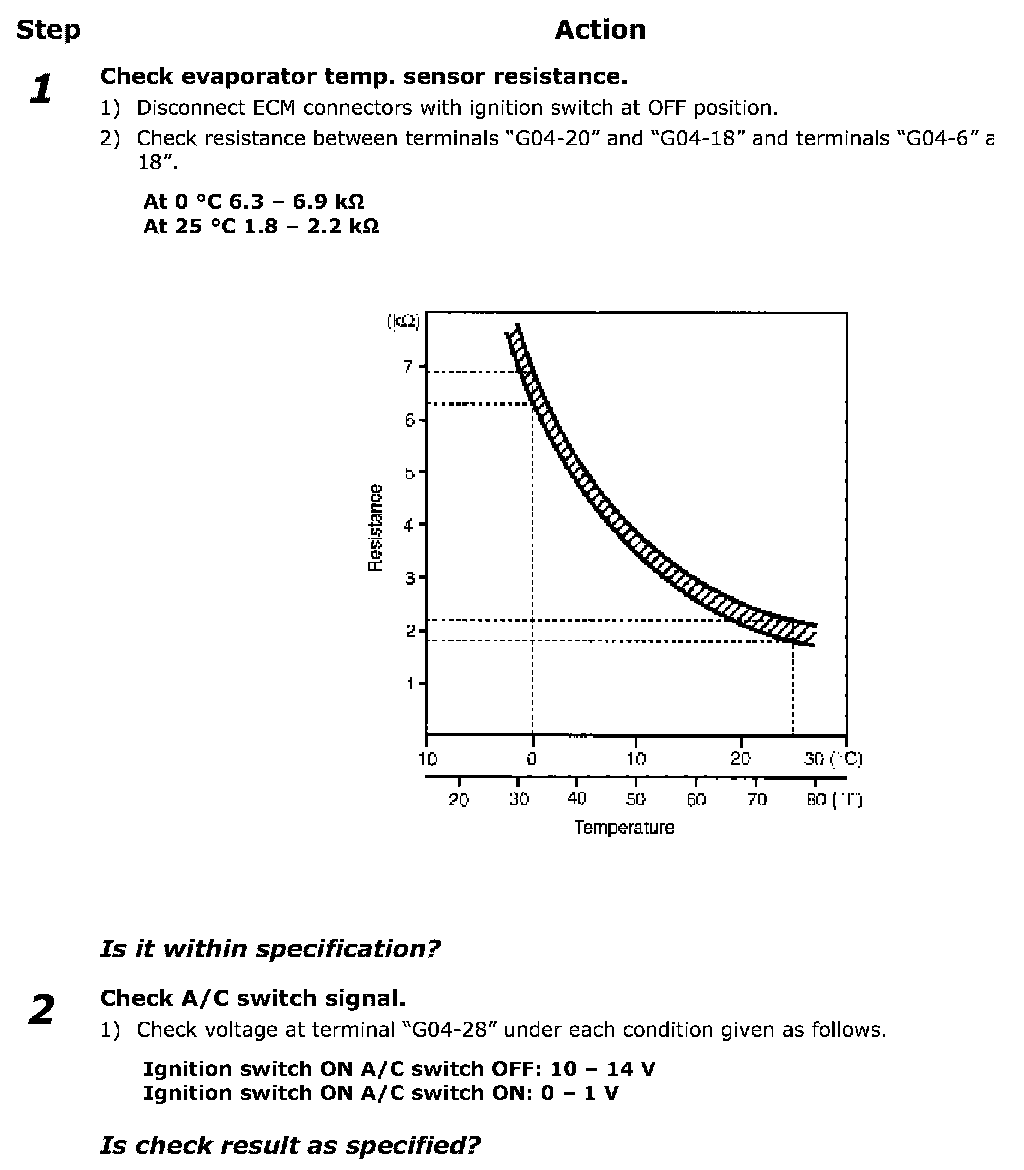

Step 1 - 2:

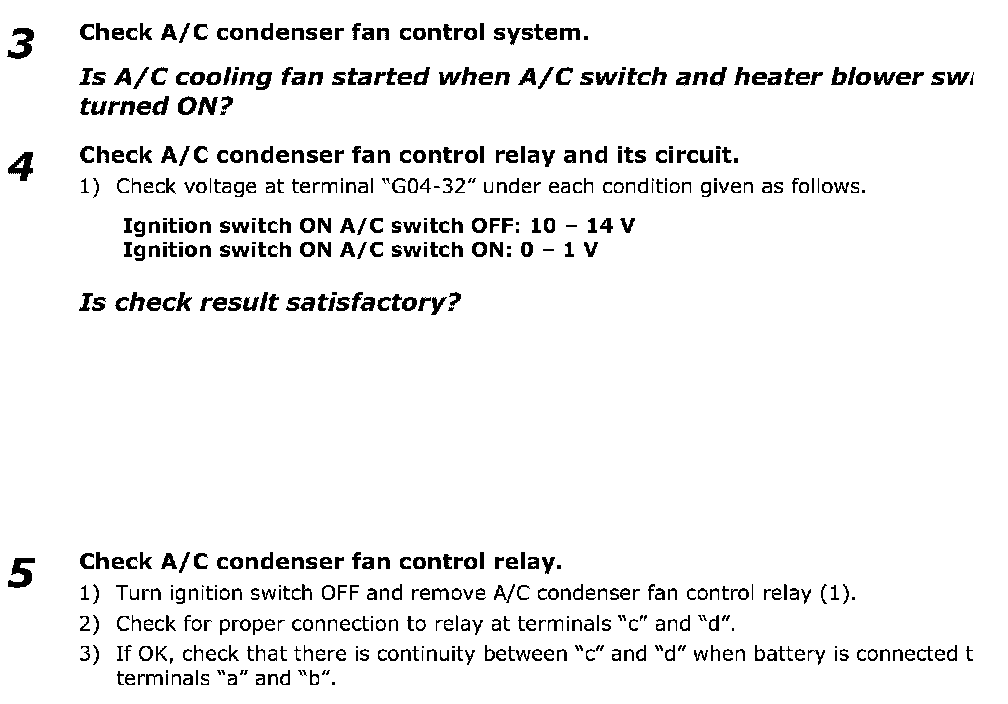

Step 3 - 5:

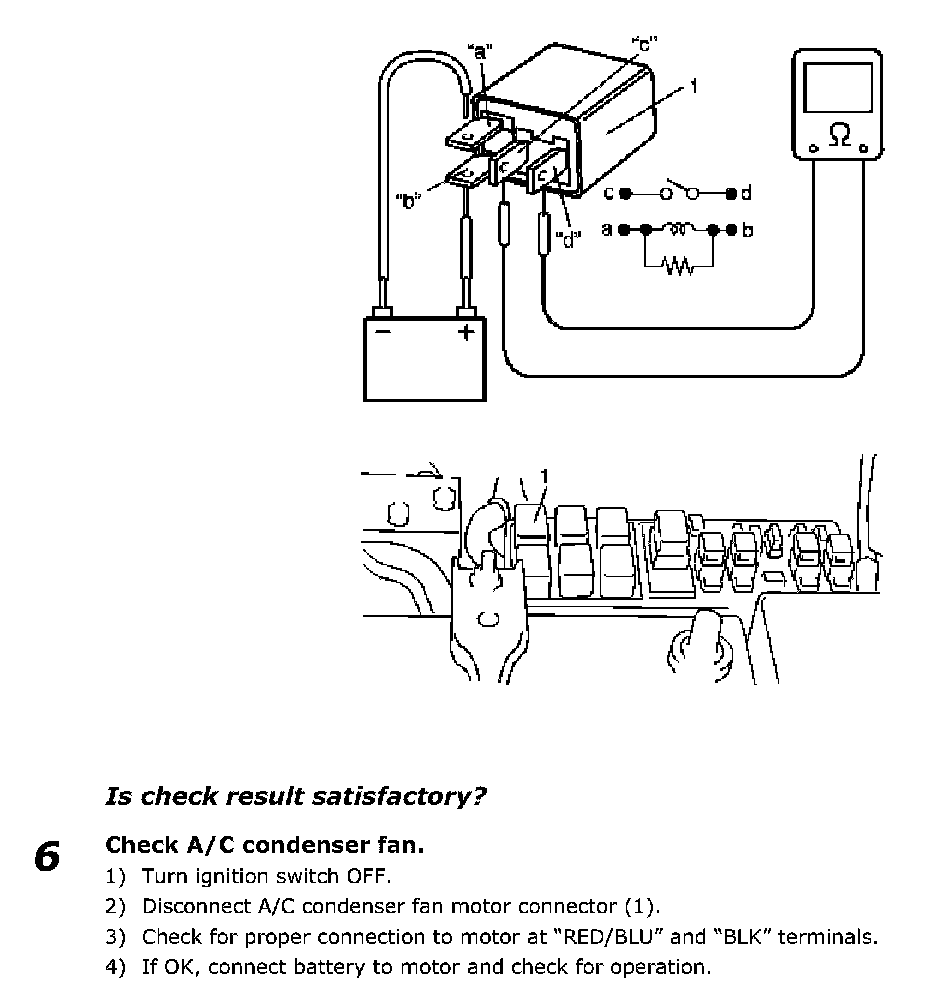

Step 5 - 6:

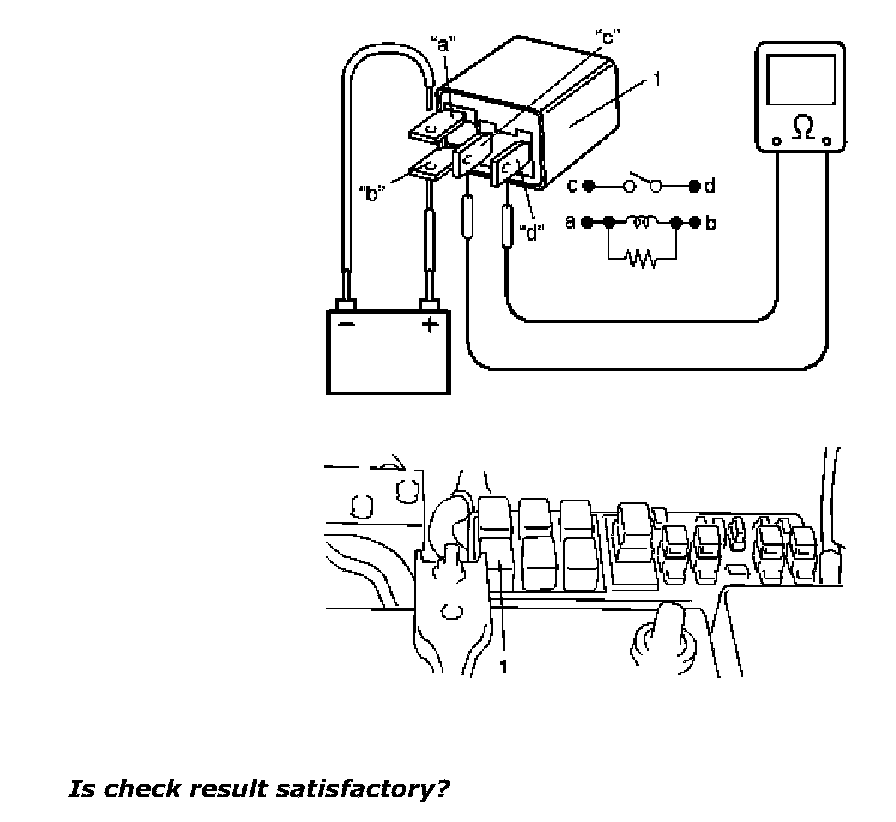

Step 6 - 9:

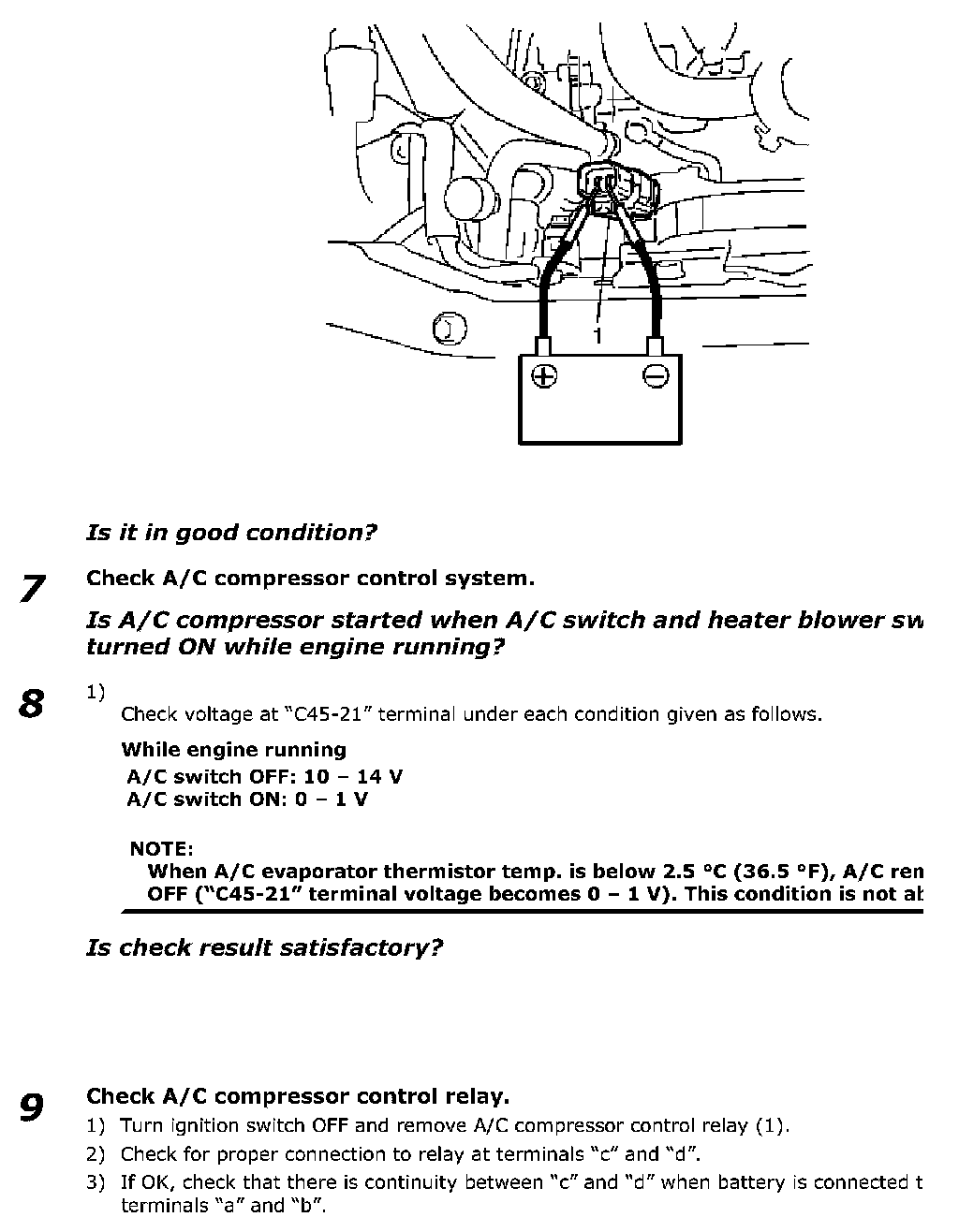

Step 9:




Troubleshooting
