Intake Air Temperature (IAT) Sensor Removal and Installation






Intake Air Temperature (IAT) Sensor Removal and Installation

Removal

1) Disconnect negative cable from battery.

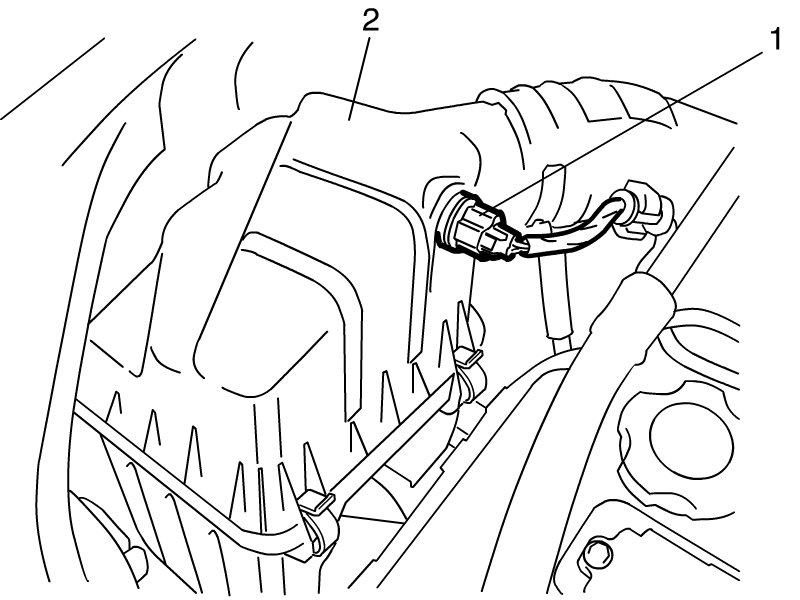

2) Disconnect lAT sensor coupler (1).
3) Remove lAT sensor from air cleaner case (2).






Installation

Intake Air Temperature (IAT) Sensor Inspection

Reverse removal procedure noting the following.

- Clean mating surface of IAT sensor and air cleaner case.
- Connect sensor coupler securely.
