Procedures
Throttle Body Cleaning Throttle Body Removal and Installation

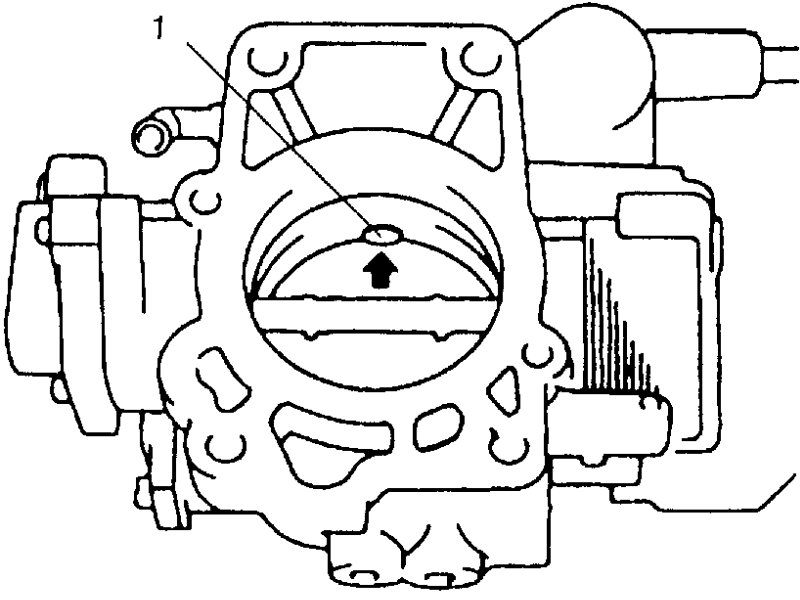

Clean passages by blowing compressed air.
CAUTION: -
MAF sensor, TP sensor, or other components containing rubber must not be placed in a solvent or cleaner both. A chemical reaction will cause these parts to swell, harden or get distorted. -
Don't put drills or wires into passages for cleaning. It causes damages in passages.
