Home >> Suzuki >> 2003 >> Grand Vitara 2WD V6-2.5L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Brake Light Switch With Pedal Position Switch Circuits Check

Brake Light Switch With Pedal Position Switch Circuits Check

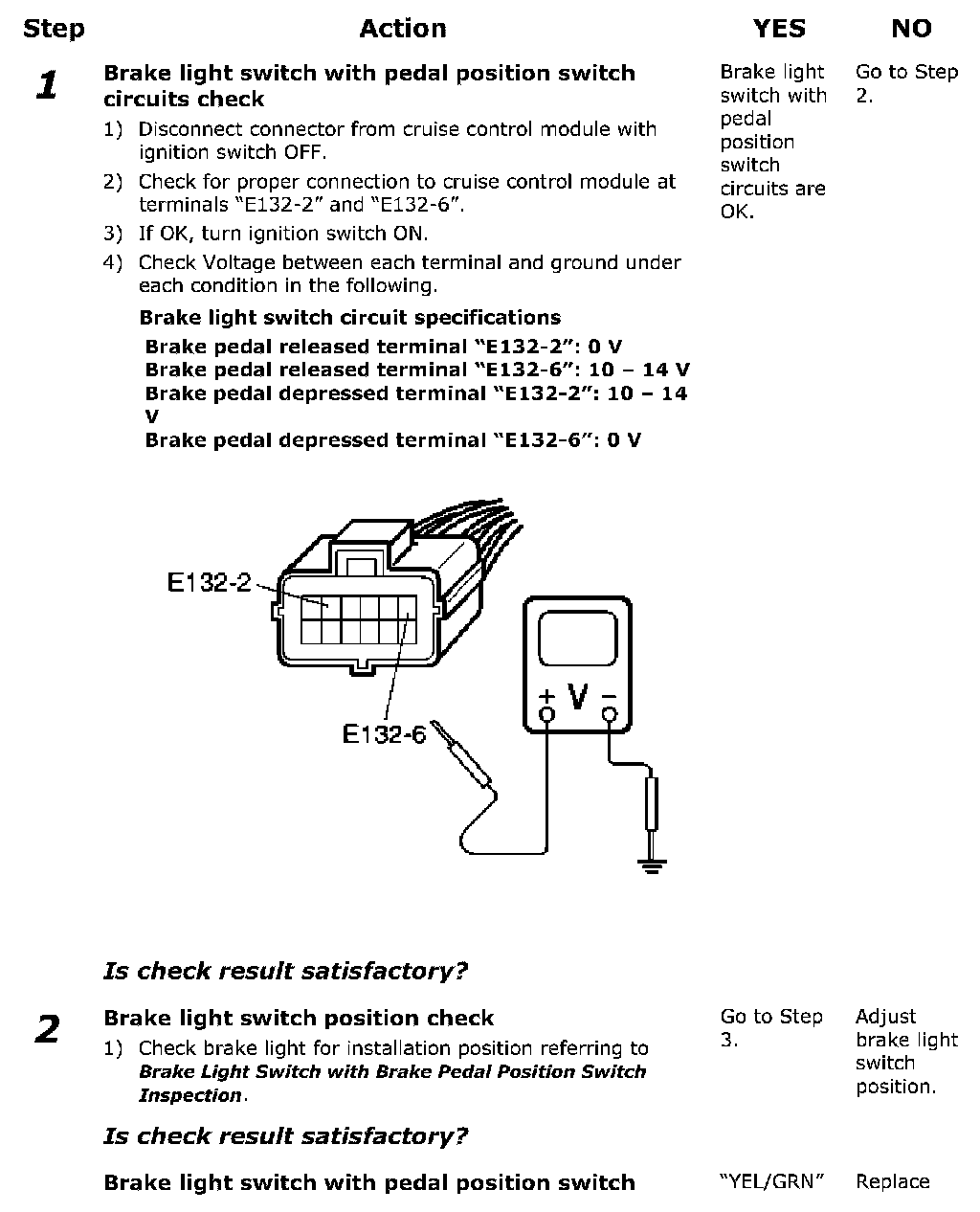

Step 1 - 2:

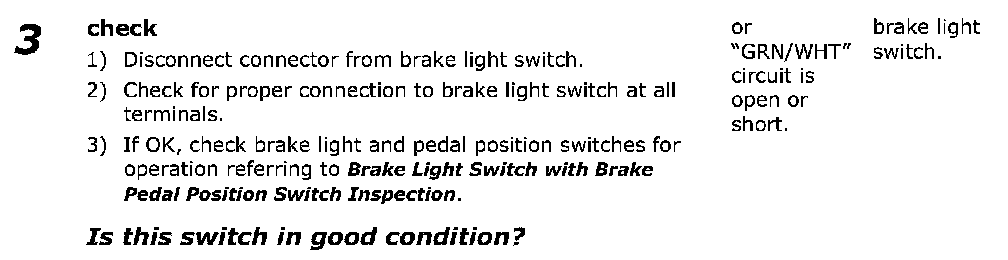

Step 3:
