Heating and Air Conditioning: Locations

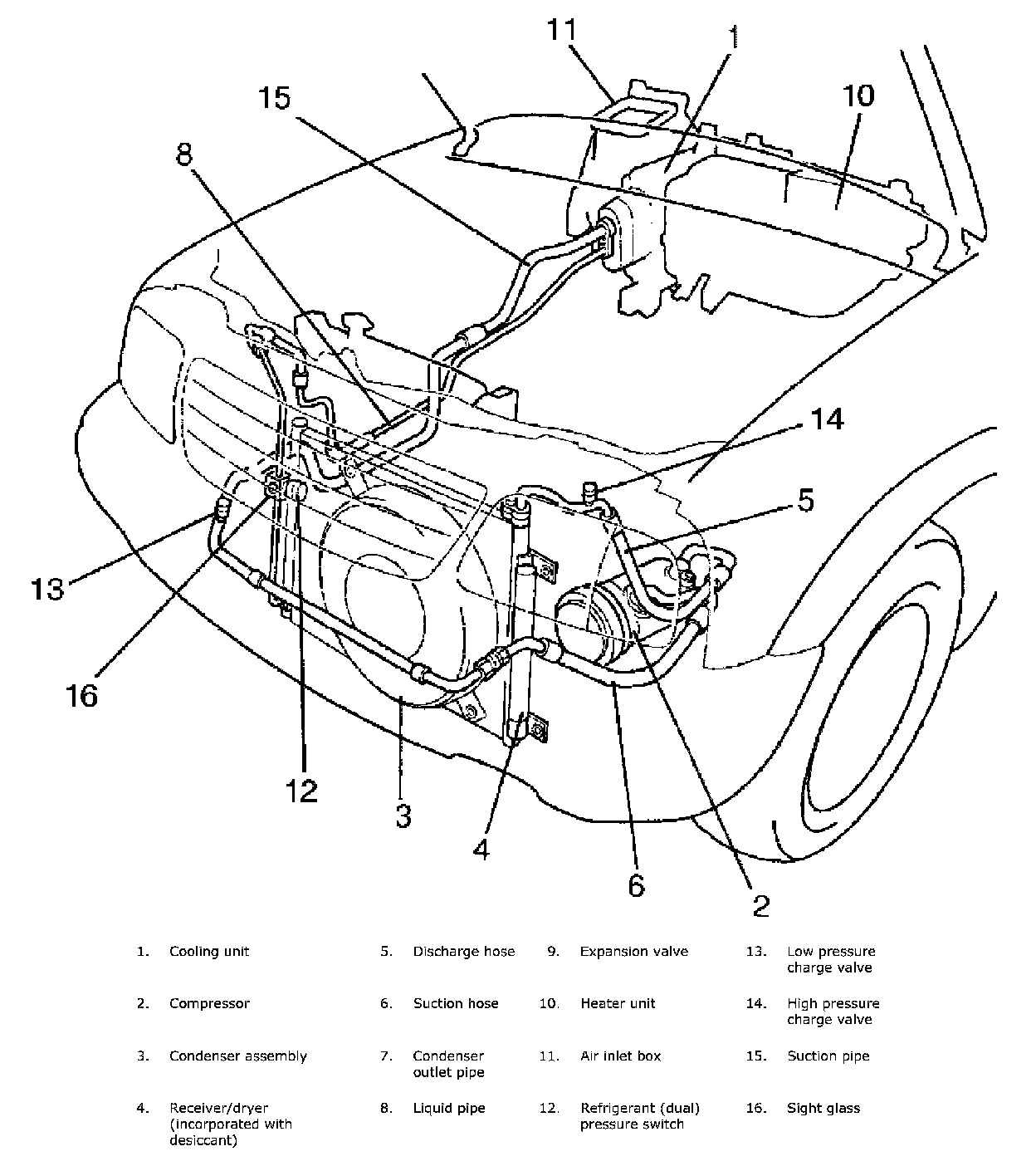

A/C Components Location:





Major Components And Location Of Air Conditioning System:
