Transmission Speed Sensor: Testing and Inspection

A/T (Output) Speed Sensor Inspection

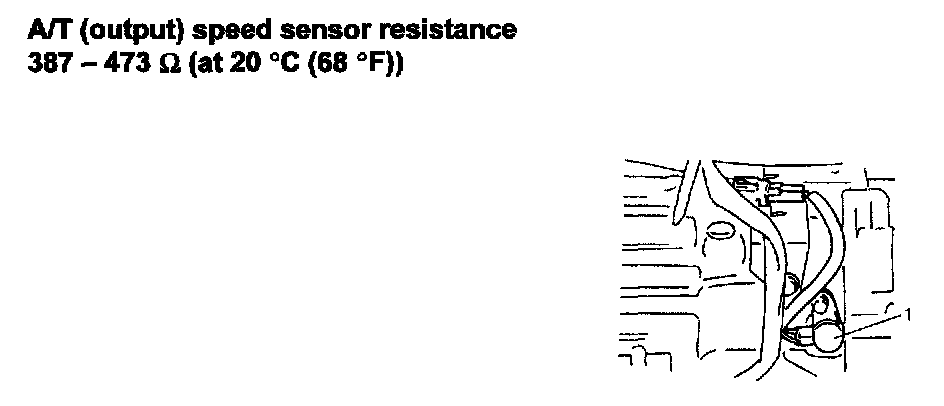

Check A/T (output) speed sensor (1) for resistance between terminals of sensor or PCM coupler.
