Front Bumper: Service and Repair

Front Bumper Impact Bar Removal and Installation

Front Bumper Impact Bar Removal

1. Remove the front bumper fascia. Refer to Front Bumper Fascia Removal.
2. Remove the front bumper energy absorber. Refer to Front Bumper Energy Absorber Removal.
3. Disconnect the electrical connector.

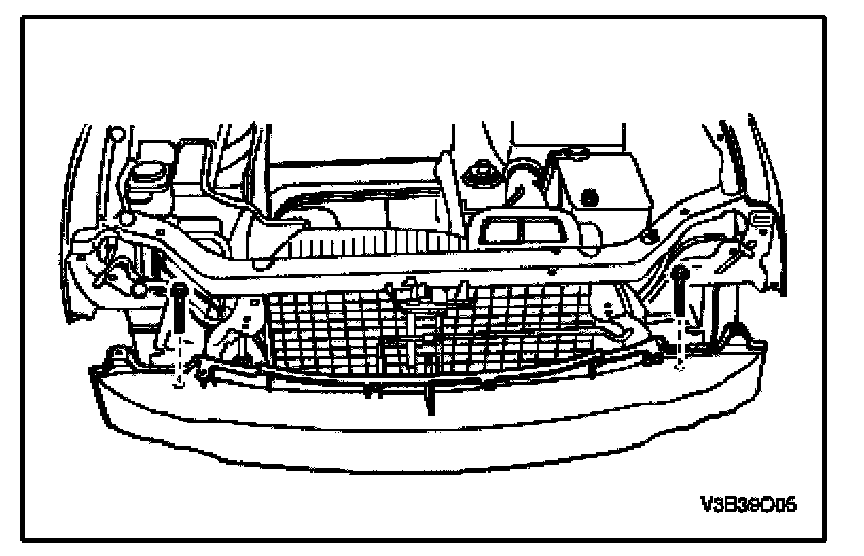

4. Remove the bolts and the front bumper impact bar.

Front Bumper Impact Bar Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the front impact bar with the bolts.

Tighten:
Tighten the front impact bar bolts to 39 N.m (29 lb.ft).

2. Connect the electrical connector.
3. Install the front bumper energy absorber. Refer to Front Bumper Energy Absorber Removal.




4. Install the front bumper fascia. Refer to Front Bumper Fascia Removal.
