Removal and Replacement

Center Member

Removal

1. Remove the engine under covers.
2. Remove the bolts and reposition the power steering return line.
3. Remove the forward engine mount through-bolt.
4. Remove the rear engine mount through-bolt.

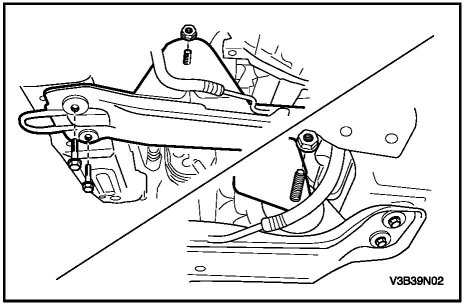

5. Remove the bolts and the center member (center member-to-crossmember bolt shown).







Installation

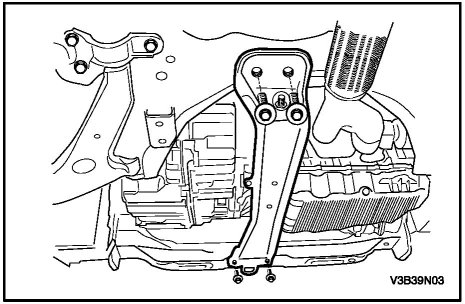

1. Install the center member with the bolts (center member-to-radiator bolt shown).

Tighten:
- Tighten the center member-to-crossmember bolt to 90 N.m (66 lb-ft).
- Tighten the center member-to-radiator bolt to 90 N.m (66 lb-ft).







2. Install the rear engine mount through-bolt.

Tighten:
Tighten the rear engine mount through-bolt to 80 N.m (59 lb-ft).

3. Install the forward engine mount through-bolt.

Tighten:
Tighten the forward engine mount through-bolt to 80 N.m (59 lb-ft).

4. Install the power steering return line to its original position and install the bolts.
5. Install the engine under covers.

Tighten:
Tighten the power steering return pipe fixing bolts to 7 N.m (62 lb-in.).
