Skid Plate: Service and Repair

Front Wheel Well Splash Shield Removal and Installation

Front Wheel Well Splash Shield Removal

1. Raise and suitably support the vehicle.
2. Remove the front wheel. Refer to Wheel Removal.
3. Remove the front mud guard. Refer to Mud Guards Removal.

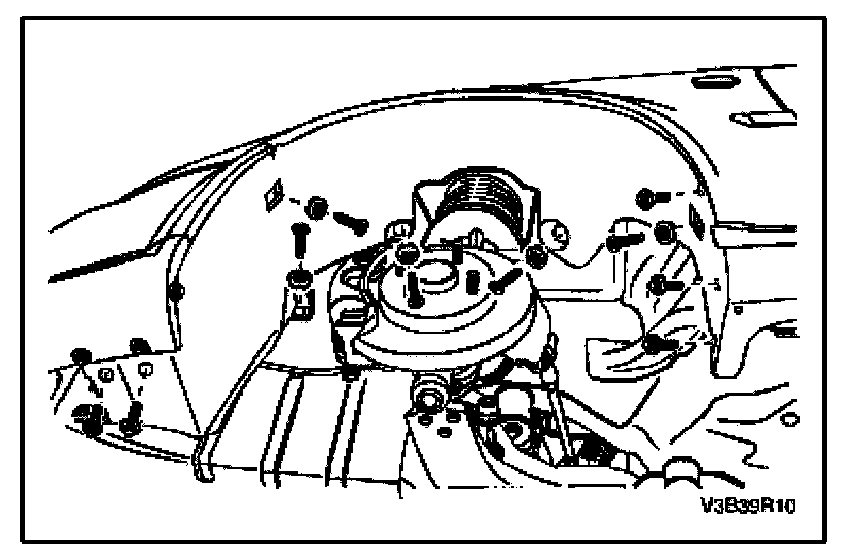

4. Remove the screws and the front wheel well splash shield.

Front Wheel Well Splash Shield Installation

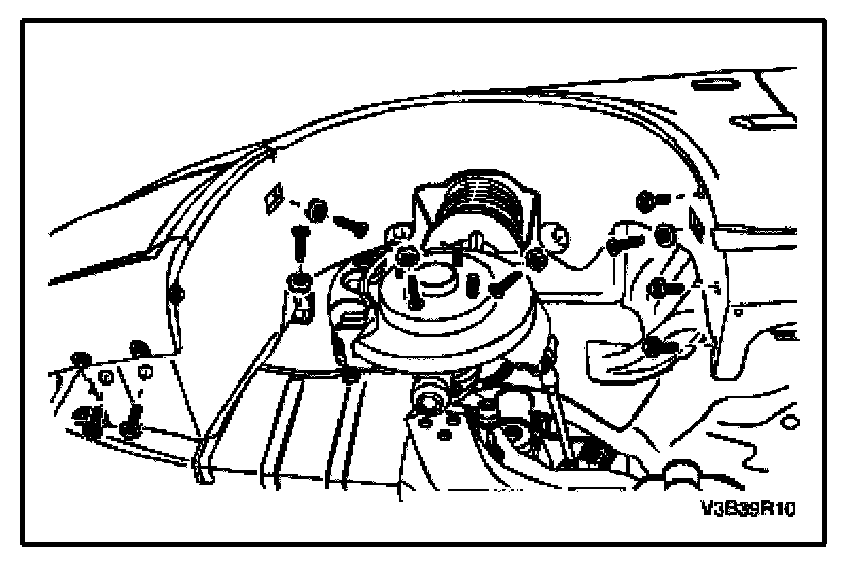

1. Install the screws and the front wheel well splash shield.

Tighten:
Tighten the front wheel well splash shield screws to 2 N.m (18 lb.in).

2. Install the front mud guard. Refer to Mud Guards Installation.
3. Install the front wheel. Refer to Wheel Installation.




4. Lower the vehicle.
