Grille: Service and Repair

Radiator Grille Removal and Installation

Radiator Grille Removal

1. Open the hood.

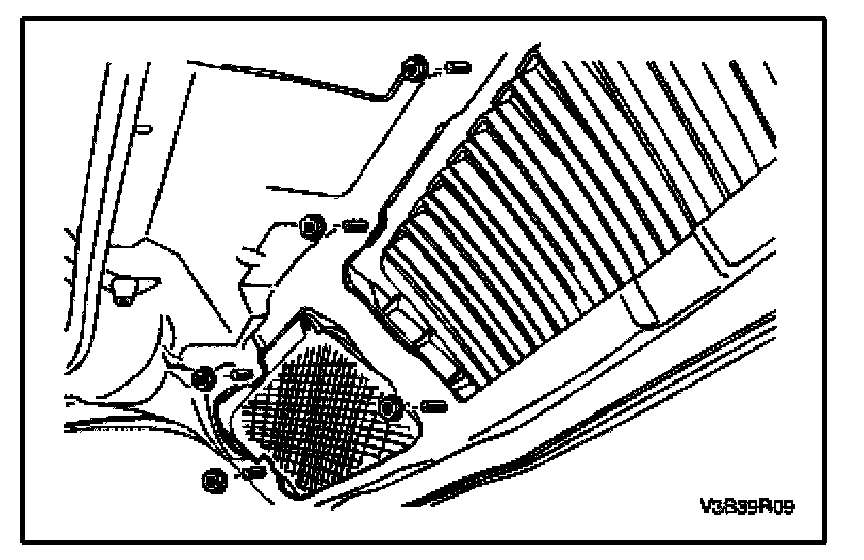

2. Remove the nuts and the radiator grille.

Radiator Grille Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

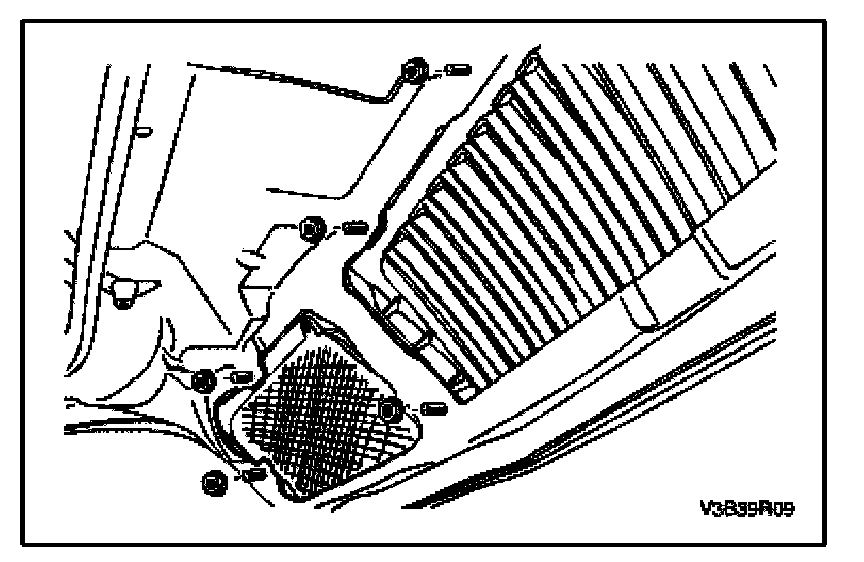

1. Install the radiator grille with the nuts.

Tighten:
Tighten the radiator grille nuts to 4 N.m (35 lb.in).

2. Close the hood.
