Door Locks: Service and Repair

Inside Lock Rod Removal and Installation

Inside Lock Rod Removal

1. Remove the door seal trim. Refer to Door Seal Trim Removal.
2. Remove the inside door handle. Refer to Inside Door Handle Removal.

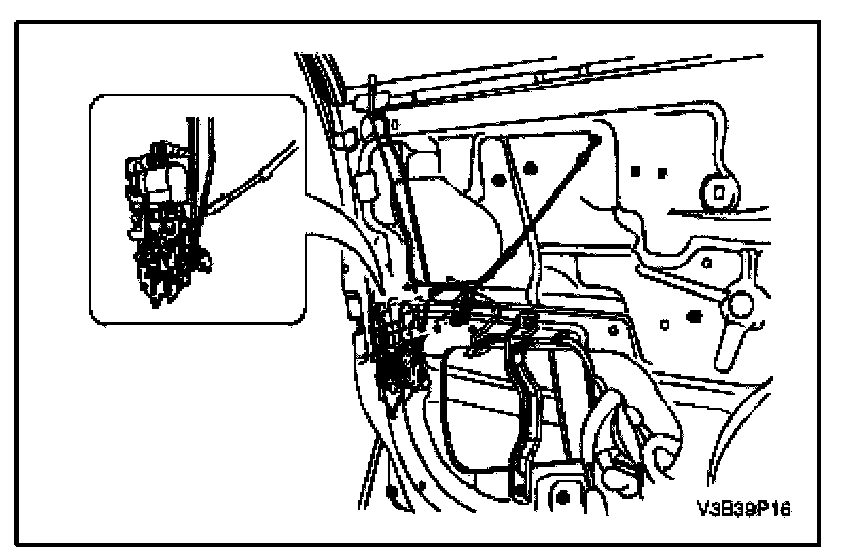

3. Disconnect the inside lock rods from the lock.

Inside Lock Rod Installation

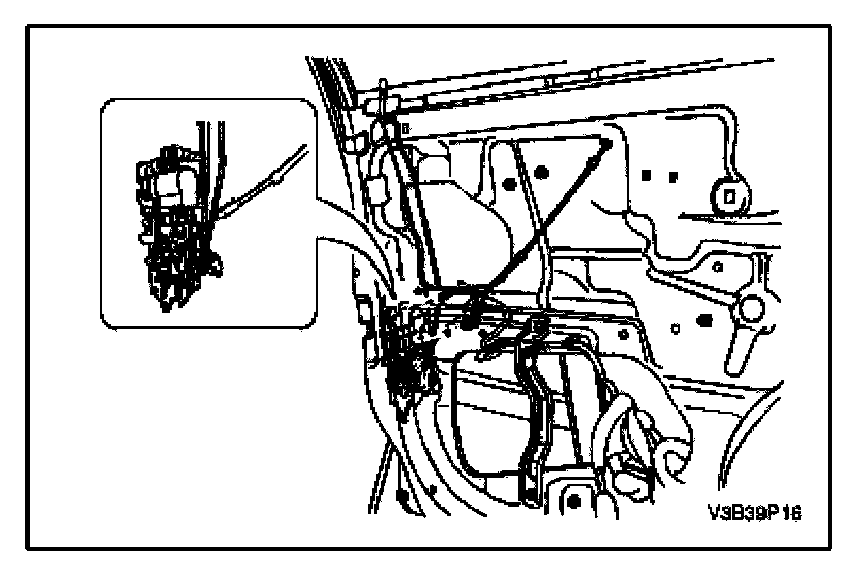

1. Connect the inside lock rods to the lock.
2. Install the inside door handle. Refer to Inside Door Handle Installation.




3. Install the door seal trim. Refer to Door Seal Trim Installation.
