Cruise Control: Testing and Inspection
Cruise Control System Diagnosis:
Cruise Control System DiagnosisTest DescriptionThe number(s) below refer to step(s) on the diagnostic table.
5.
The electromagnetic clutch in the cruise control actuator is grounded through the brake lamps.

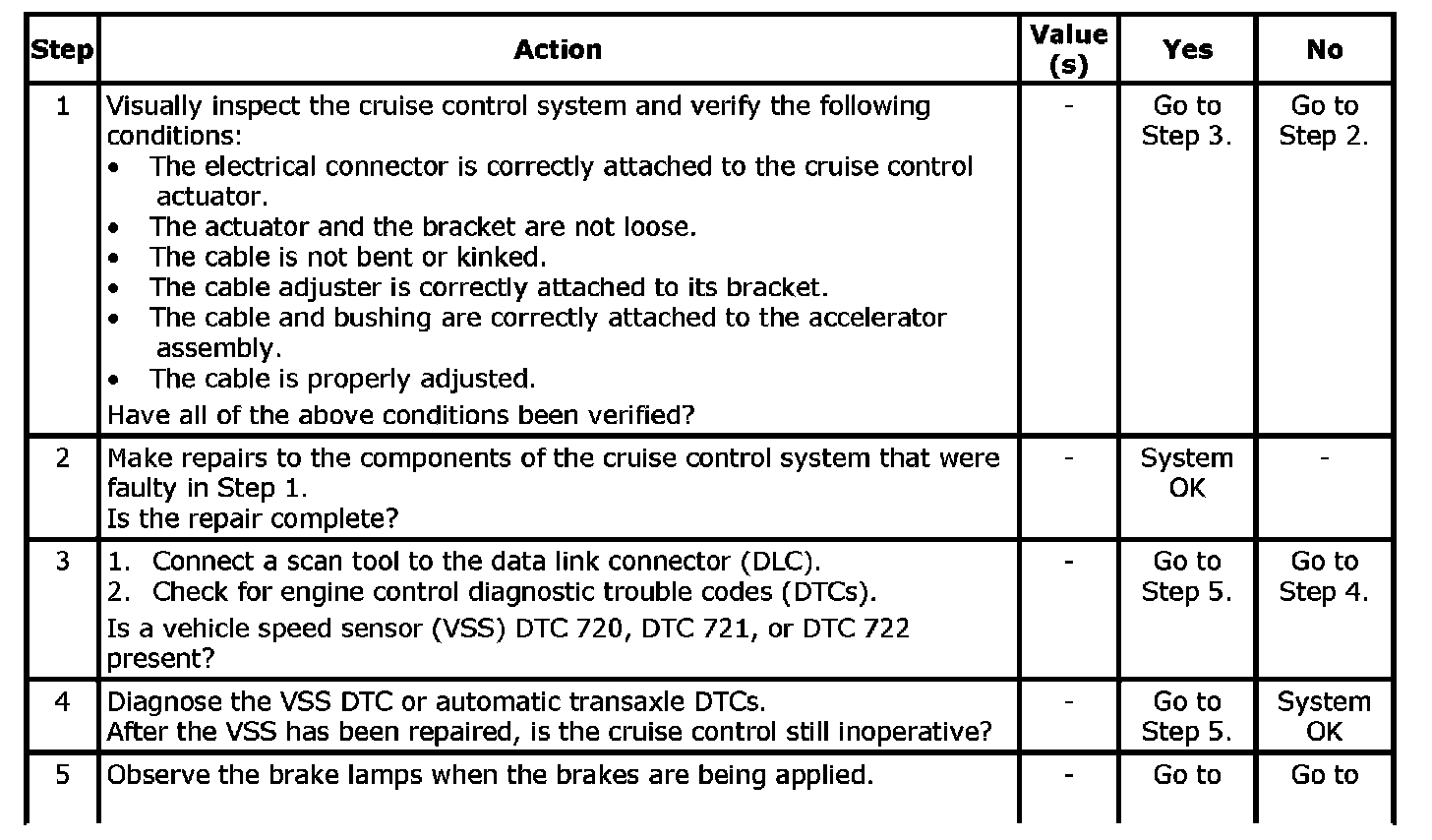

Step 1 - 5:
Step 6 - 20:

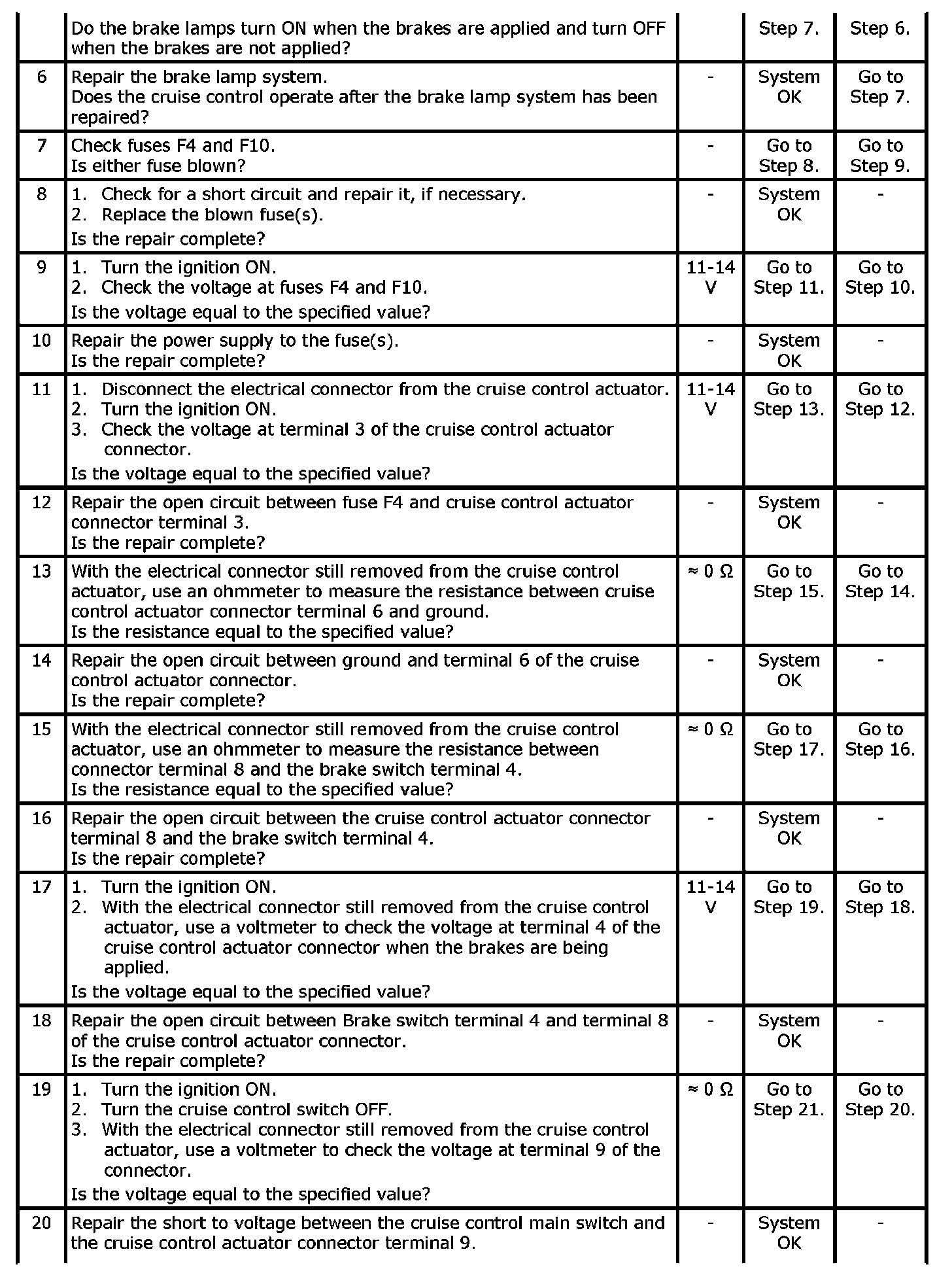

Step 21 - 31:
Cruise Control Does Not Operate
