Air Register: Service and Repair

Instrument Panel Vents Removal and Installtion

Instrument Panel Vents Removal

1. Remove the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Removal.

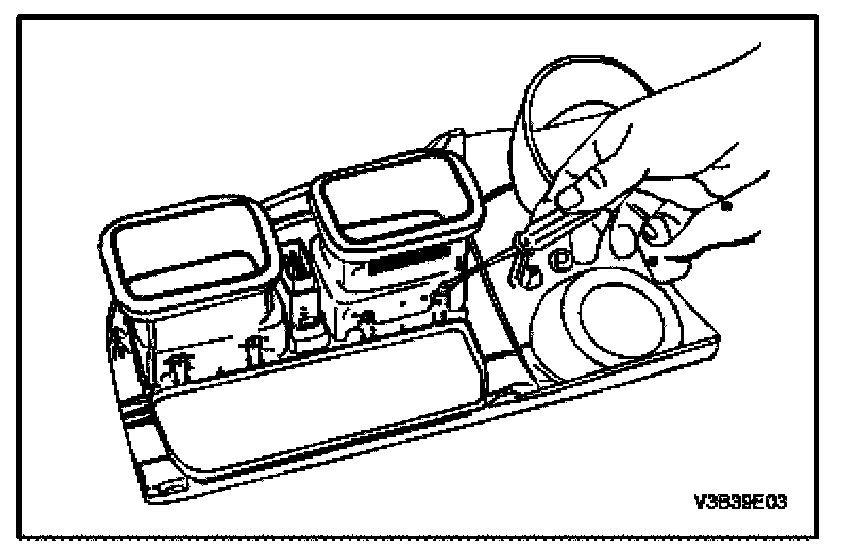

2. Pry off the vents by inserting a screwdriver.

Instrument Panel Vents Installation

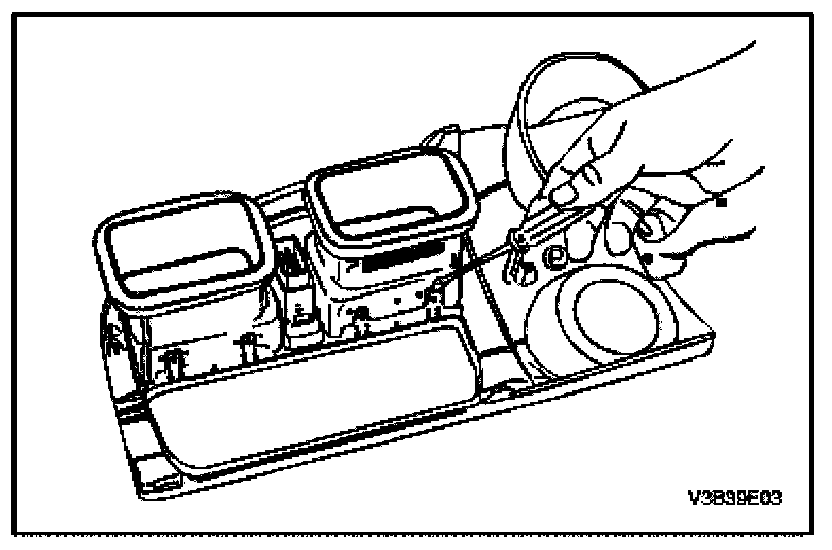

1. Press the vents onto the housing.

Tighten:
Tighten the instrument panel vent screws to 3 N.m (27 lb.in).




2. Install the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Installation.
