Clock: Service and Repair

Digital Clock Removal and Installation

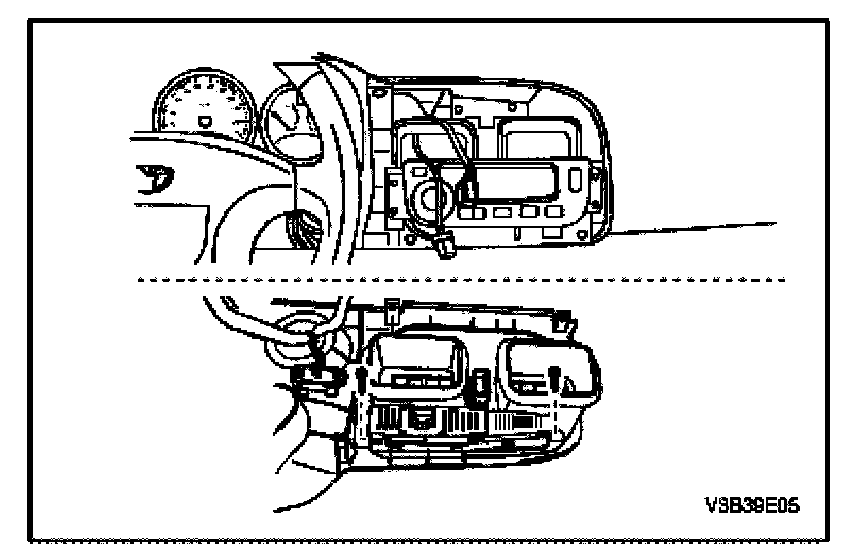

Digital Clock Removal

1. Remove the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Removal.

2. Remove the screws and the digital clock.

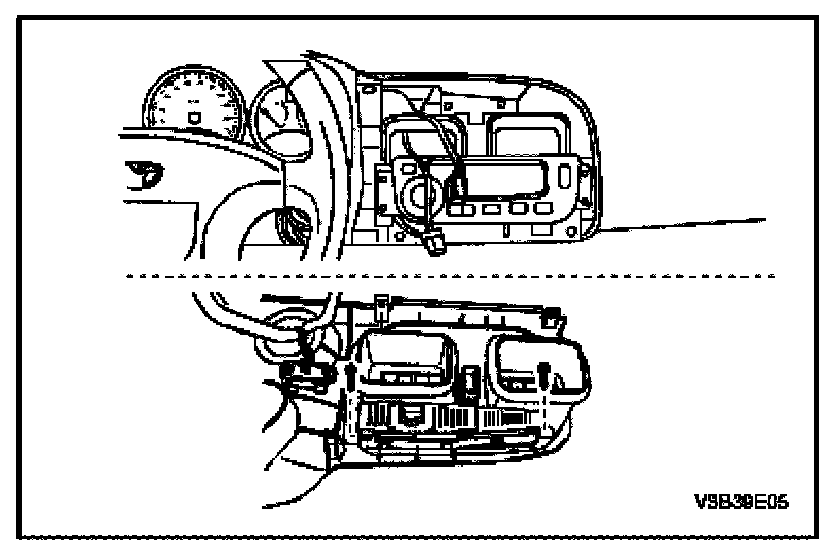

Digital Clock Installation

1. Install the digital clock with the screws.

Tighten:
Tighten the digital clock screws to 2.5 N.m (22 lb.in).

2. Install the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Installation.
