Brake Light Switch: Service and Repair

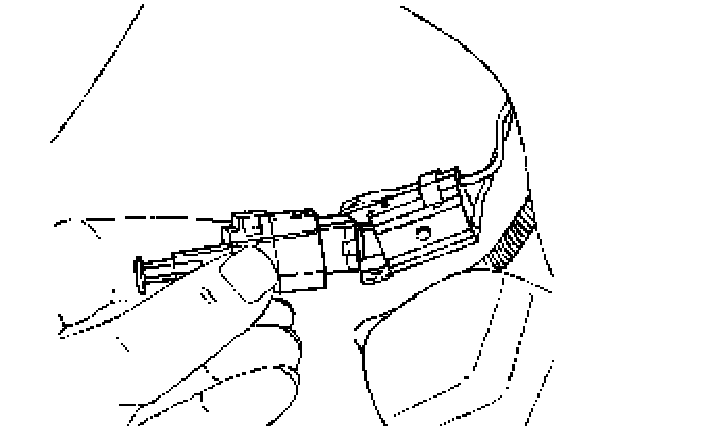

Stoplamp Switch Removal 1.
Turn the stoplamp switch connector assembly clock-wise and remove it from the brake pedal bracket.
2.
Separate the stoplamp switch from the connector.

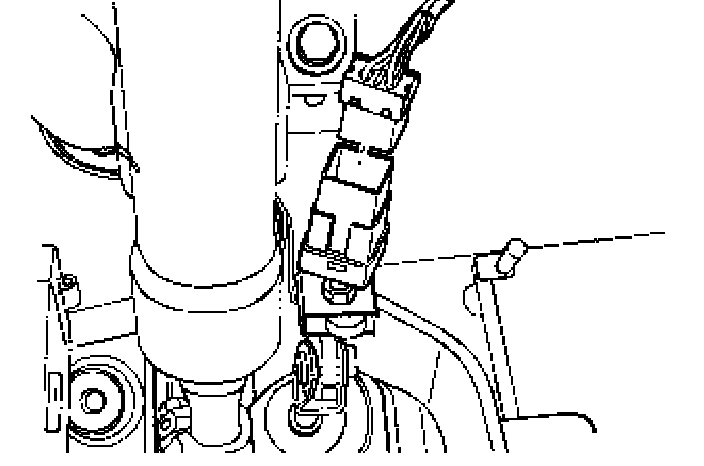

Stoplamp Switch Installation 1.
Place the stoplamp switch into the connector.
2.
Twist the stoplamp switch connector assembly into the brake pedal bracket hole.
