Fog/Driving Lamp: Service and Repair

Fog Lamps Removal and Installation

Fog Lamps Removal

1. Disconnect the negative battery cable.

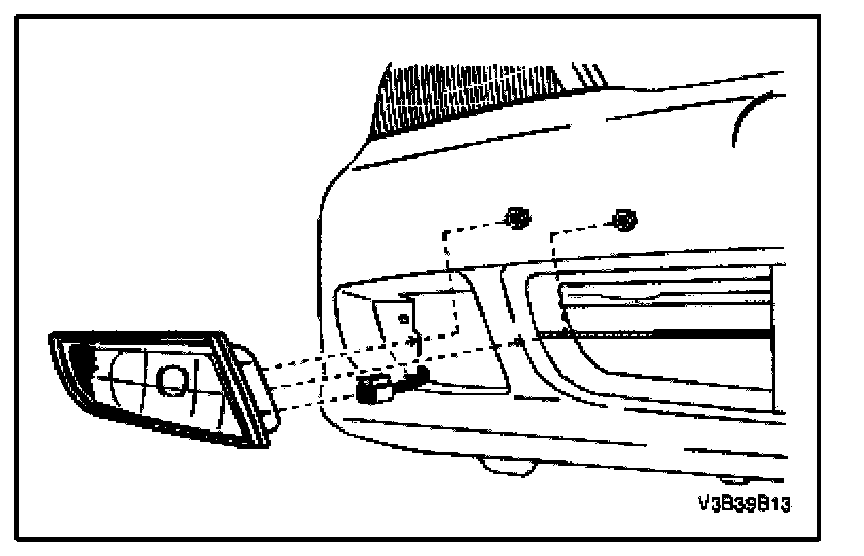

2. Remove the screws that secure the fog lamp assembly.
3. Remove the fog lamp assembly.




4. Disconnect the fog lamp assembly electrical connector.

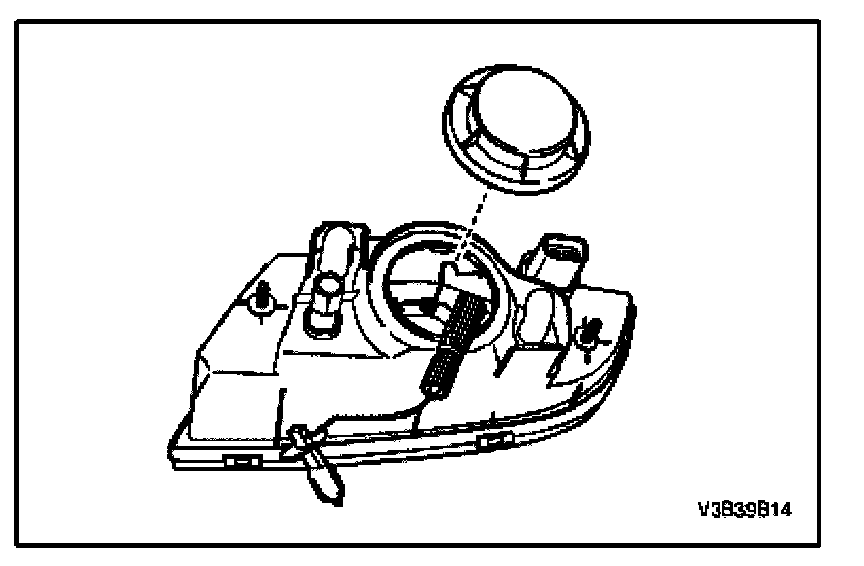

5. Remove the screws and fog lamp access cover.
6. Remove the retaining wire.
7. Remove the bulb from the fog lamp assembly.




8. Disconnect the bulb electrical connector.

Fog Lamps Installation

1. Connect the bulb electrical connector.
2. Install the bulb from the fog lamp assembly.
3. Install the retaining wire.




4. Install fog lamp access cover with the screws.
5. Connect the fog lamp assembly electrical connector.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

6. Install the fog lamp assembly.
7. Install the fog lamp assembly with the screws.




8. Connect the negative battery cable.
