Ignition Coil: Service and Repair
REMOVAL 1.
Disconnect the negative battery cable.
2.

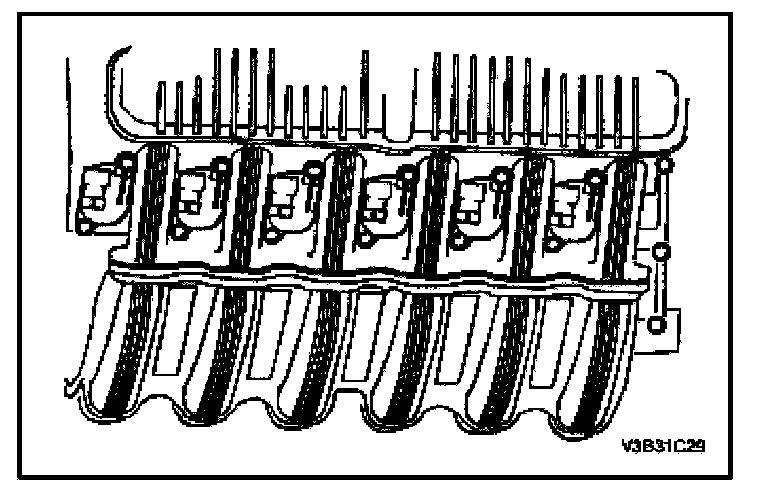

Disconnect the
ignition coil wiring harness connectors.
3.

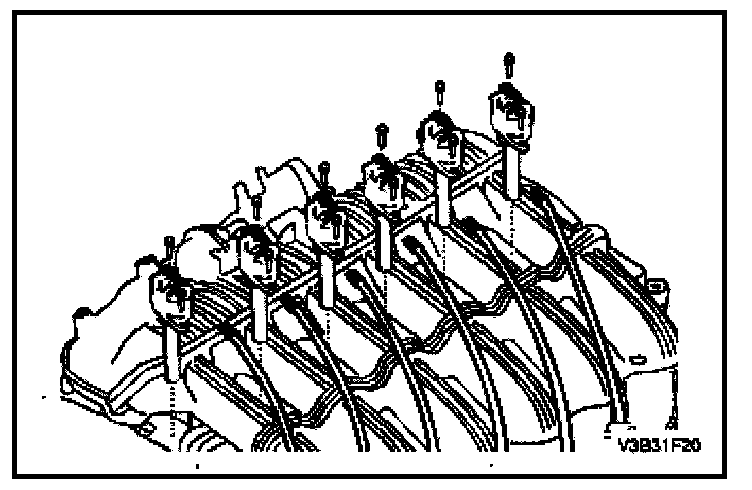

Remove the
ignition coils.
INSTALLATION 1.
Installation should follow the removal procedure in the reverse order.
2.
Install the
ignition coils.
Tighten Tighten the
ignition coil retaining bolts to
6 - 8 Nm (53 - 71 lb-in).
