Camshaft Bearing

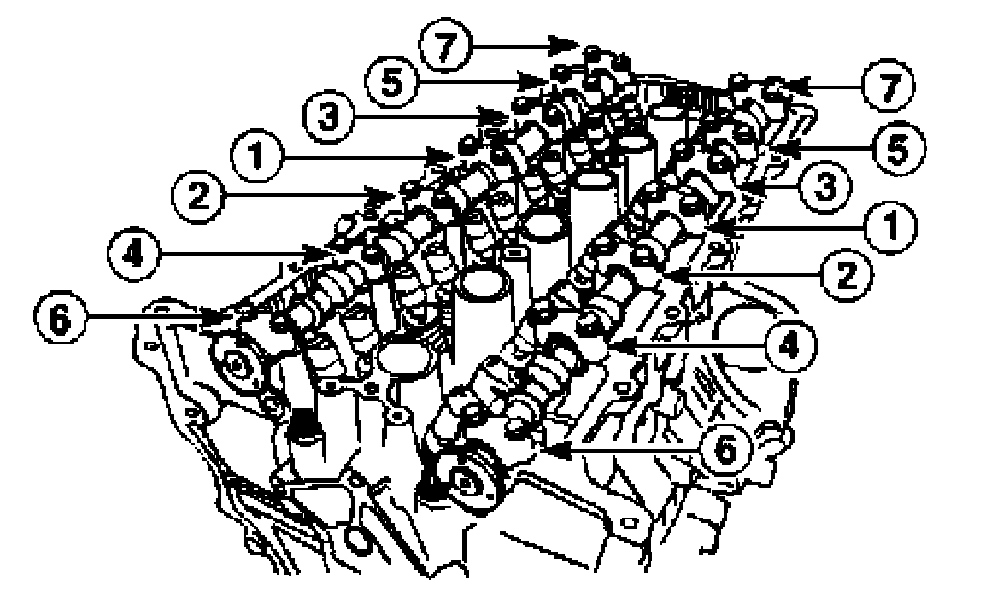

Tighten the
camshaft cap bolts in the sequence shown.
Tighten the
camshaft cap bolts
10 - 14 Nm (89 - 124 inch lbs.)
Camshaft Cap to Bearing Journal Clearance
0.03 - 0.071 mm (0.00118 - 0.00280 inch)
Bearing Journal OD
24.95 - 24.97 mm (0.98228 - 0.98307 inch)
