Air Bag System - Clockspring Replacement

Section Title: Restraints
TSB No. TS 02 02244

Division: Automotive
Category: Technical

SUBJECT:
REPLACING THE S.I.R. CLOCK SPRING.

MODEL(S):
VERONA (RP625)

YEAR:
2004





CONDITION:

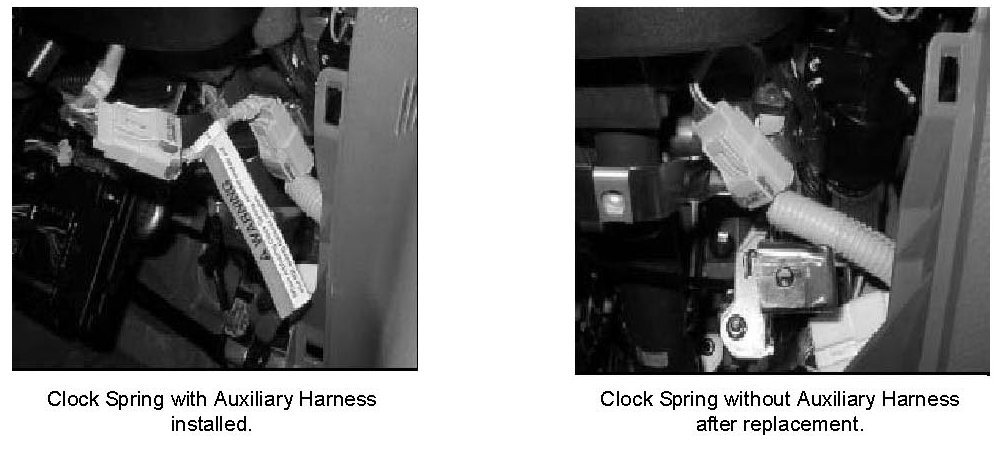

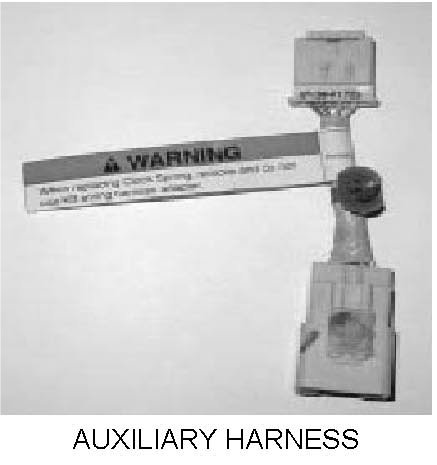

Some 2004 vehicles may have been equipped with an auxiliary harness installed between the clock spring and the main air bag wiring harness. Should the clock spring require replacement DO NOT re-install the auxiliary harness.

CAUSE:
N/A

CORRECTION:
The replacement clock spring does not require the use of the auxiliary harness.

WARNING:
IF THE VEHICLE IS EQUIPPED WITH THE AUXILIARY HARNESS, IT MUST BE REMOVED FROM VEHICLE WHEN A NEW CLOCK SPRING IS INSTALLED.








PARTS INFORMATION
