Front Door Window Glass: Service and Repair

Front Door Glass Removal and Installation

Front Door Glass Removal

1. Remove the door seal trim. Refer to Door Seal Trim Removal.
2. Remove the B-pillar molding. Refer to B-Pillar Molding Removal.

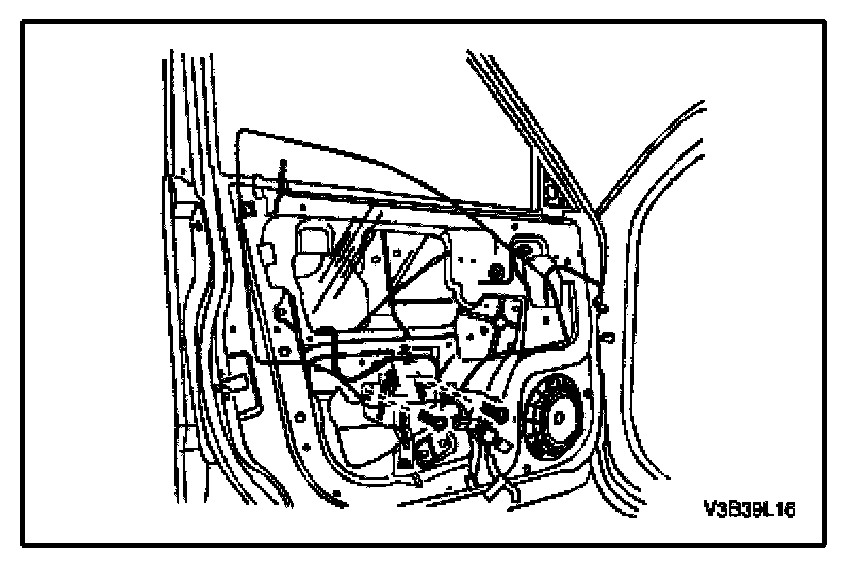

3. Remove the screws that secure the glass to the window regulator.




4. Remove the glass from the door.

Front Door Glass Installation

1. Install the glass in the door and position the glass within the window regulator.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

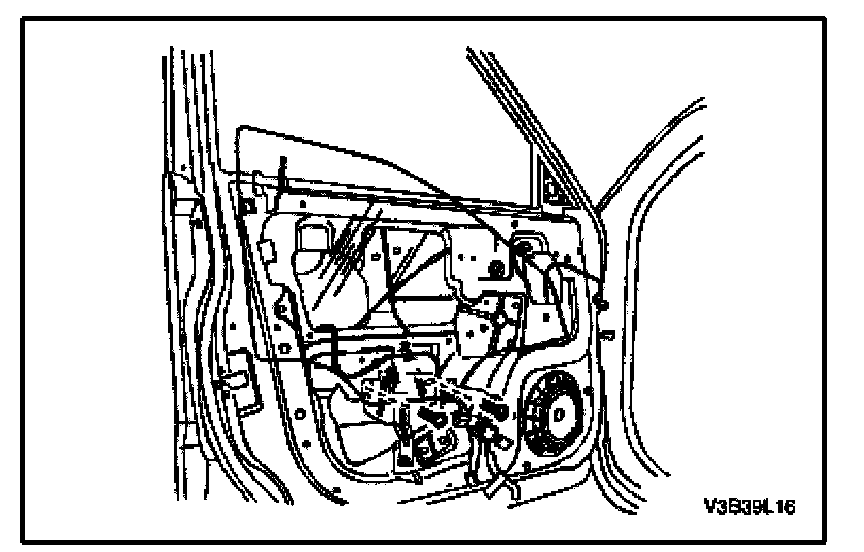

2. Install the glass to the window regulator with the screws.

Tighten:
Tighten the glass screws to 7 N.m (62 lb.in).

3. Install the B-pillar molding. Refer to B-Pillar Molding Installation.




4. Install the door seal trim. Refer to Door Seal Trim Installation.
