Windshield Washer Pump: Service and Repair

Windshield Washer Pump Removal and Installation

Windshield Washer Pump Removal

1. Disconnect the negative battery cable.
2. Remove the right front left wheel. Refer to Wheel Removal.
3. Remove the front wheel well splash shield. Refer to Front Wheel Well Splash Shield Removal.
4. Disconnect the electrical connector.
5. Disconnect the washer hose from the washer pump.

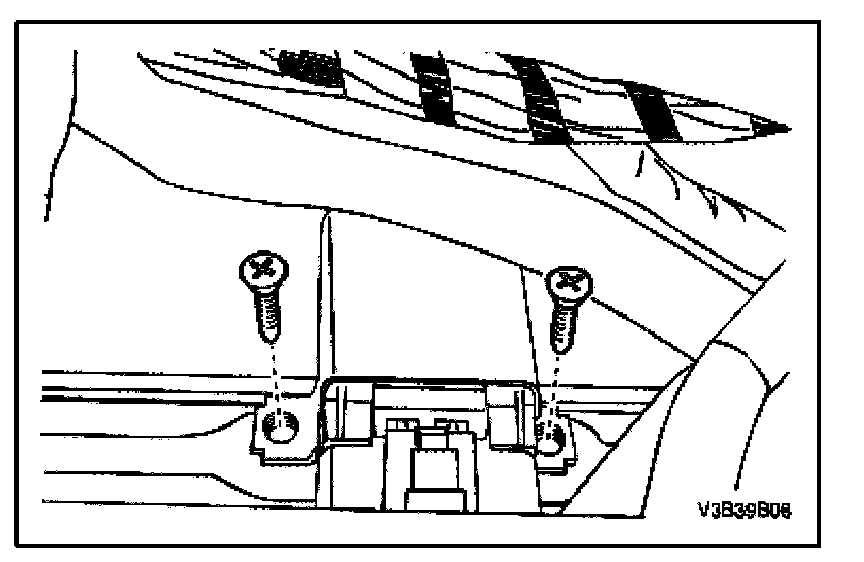

6. Remove the washer pump.

Windshield Washer Pump Installation

1. Install the washer pump.
2. Connect the washer hose to the washer pump.
3. Connect the electrical connector.
4. Install the front wheel well splash shield. Refer to Front Wheel Well Splash Shield Installation.
5. Install the right front wheel. Refer to Wheel Installation.




6. Connect the negative battery cable.
