Wiper Arm: Service and Repair

Windshield Wiper Arm Removal and Installation

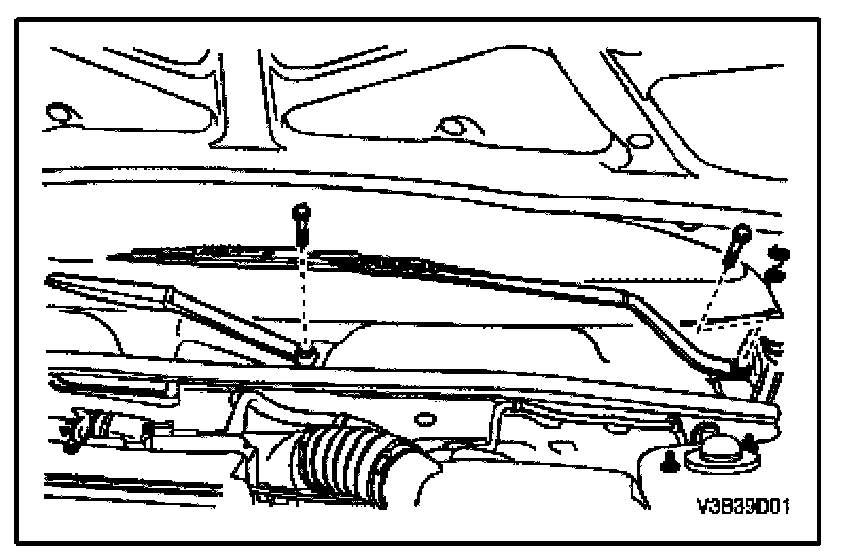

Windshield Wiper Arm Removal

1. Open the hood.
2. Remove the nut from the wiper arm.

3. Pull the wiper arm off.

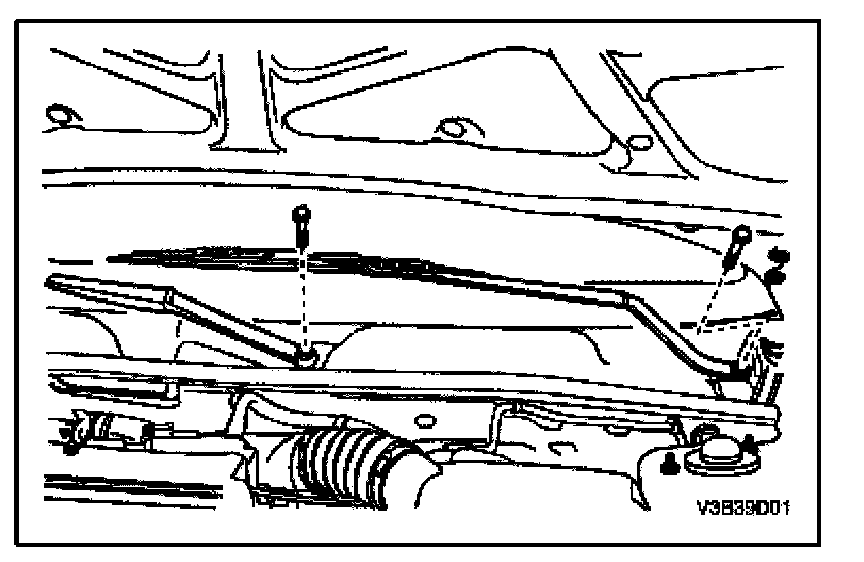

Windshield Wiper Arm Installation

1. Install the wiper arm.

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

2. Secure the wiper arm with the nut.

Tighten:
Tighten the wiper arm nut to 22 N.m (16 lb.ft).

3. Close the hood.
