Cruise Control: Service and Repair

Cruise ON/OFF, Set/Coast, Res/Acc and Cancel Switches Removal and Installation.

Removal
1. Disconnect negative (-) cable at battery.
2. Remove steering wheel referring to Steering Wheel Removal and Installation.

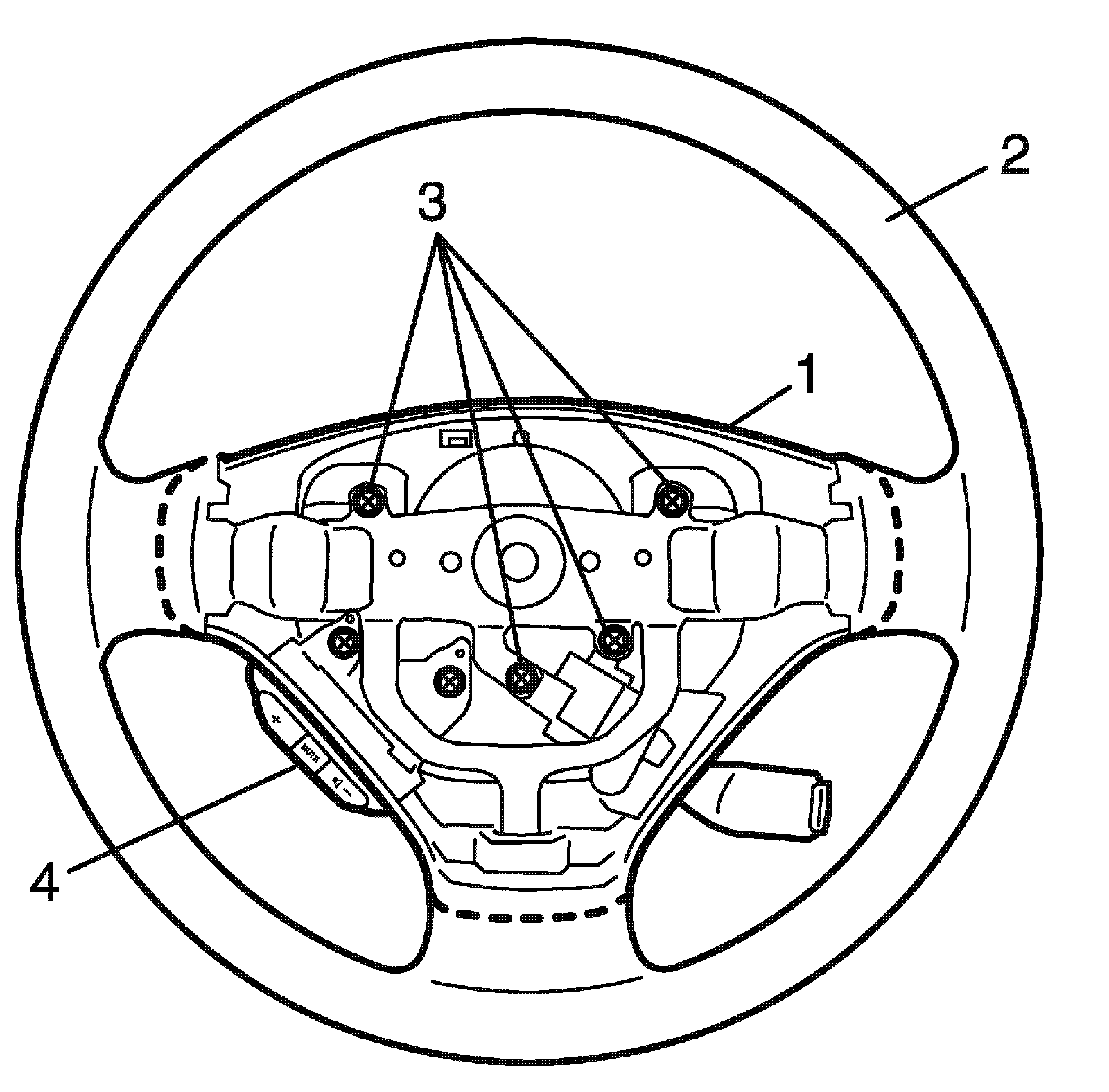

3. Remove audio control switch (if equipped) (4) from steering wheel (2).




4. Remove steering wheel lower cover (1) from steering wheel (2) removing 4 screws (3).

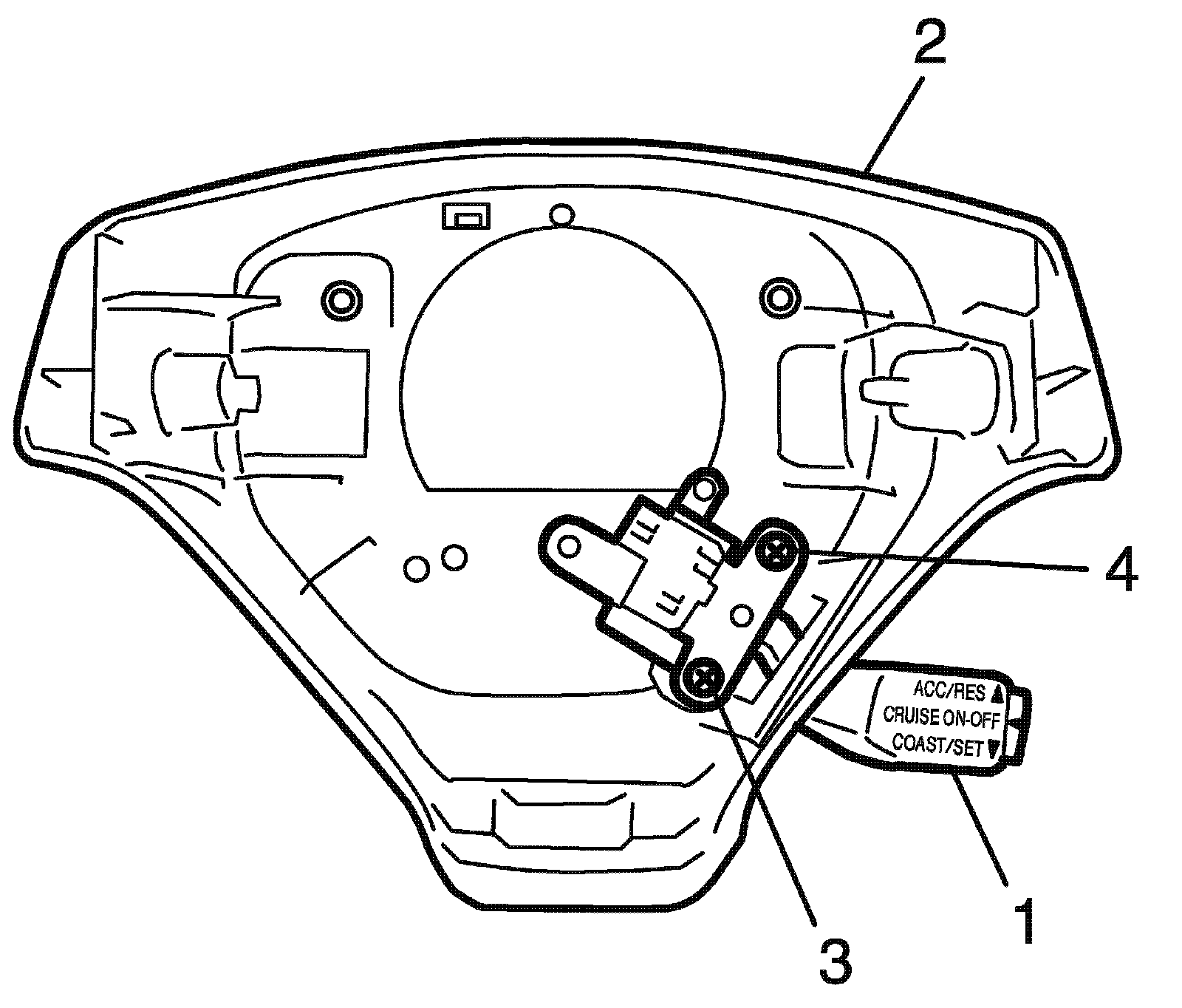

5. Remove cruise control switch assembly (1) from steering wheel lower cover (2) removing cruise control lever bolt (3) and cruise control switch assembly screw (4).




Installation

Reference: Cruise ON/OFF, Set/Coast, Res/Acc and Cancel Switches Inspection

Reverse removal procedure to install cruise control switch assembly noting the following.

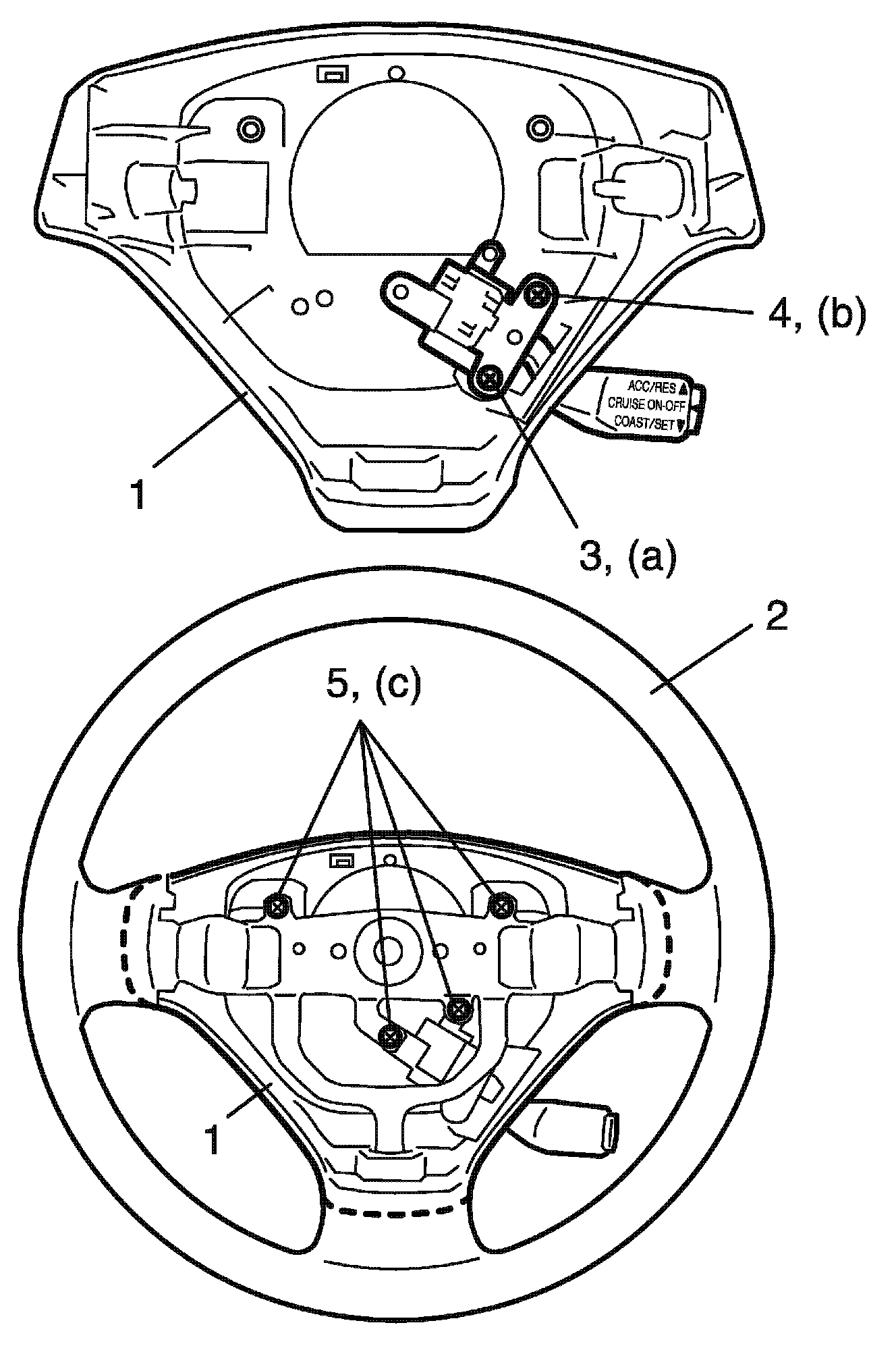

- Install new steering wheel lower cover (1) to steering wheel (2).
- Tighten cruise control switch assembly bolt (3), cruise control switch assembly screw (4) and steering wheel lower cover screws as specified torque.

Tightening torque
Cruise control switch assembly bolt a: 1.0 N.m (0.10 kg.m, 0.7 lb.ft)
Cruise control switch assembly screw and steering wheel lower cover screws b: 0.85 N.m (0.085 kg.m, 0.60 lb.ft)
