Procedures
Headlight Diode Removal and Installation 1.
Remove heater blower unit referring to Blower Unit Removal and Installation.
2.

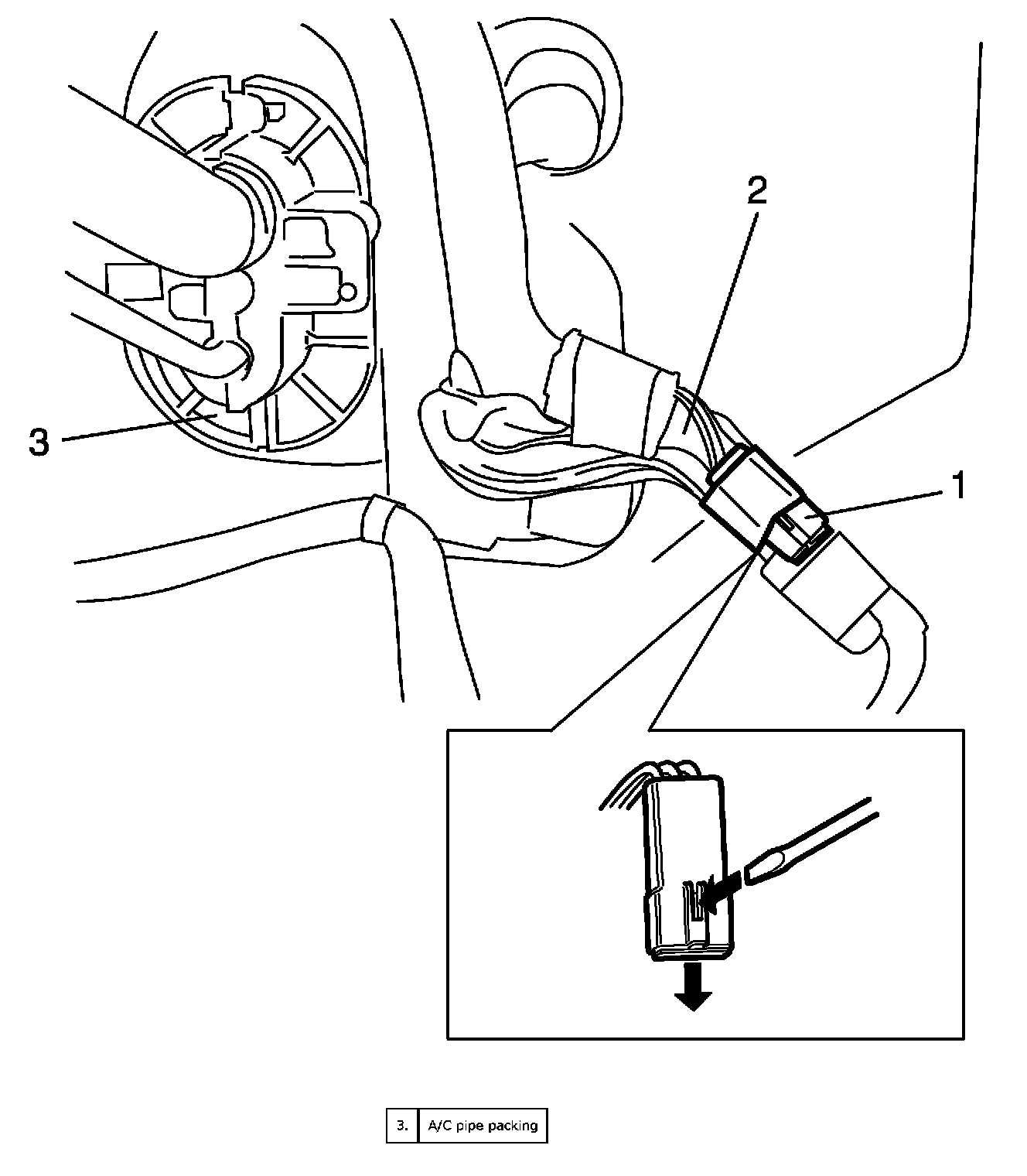

Remove headlight diode (1) from main harness (2) as shown in the figure.
InstallationReference: Headlight Diode Inspection
Reverse removal procedure for installation.
