Vehicle Speed Sensor: Service and Repair
Vehicle Speed Sensor (VSS) Removal and InstallationRemoval 1.
Hoist vehicle.
2.

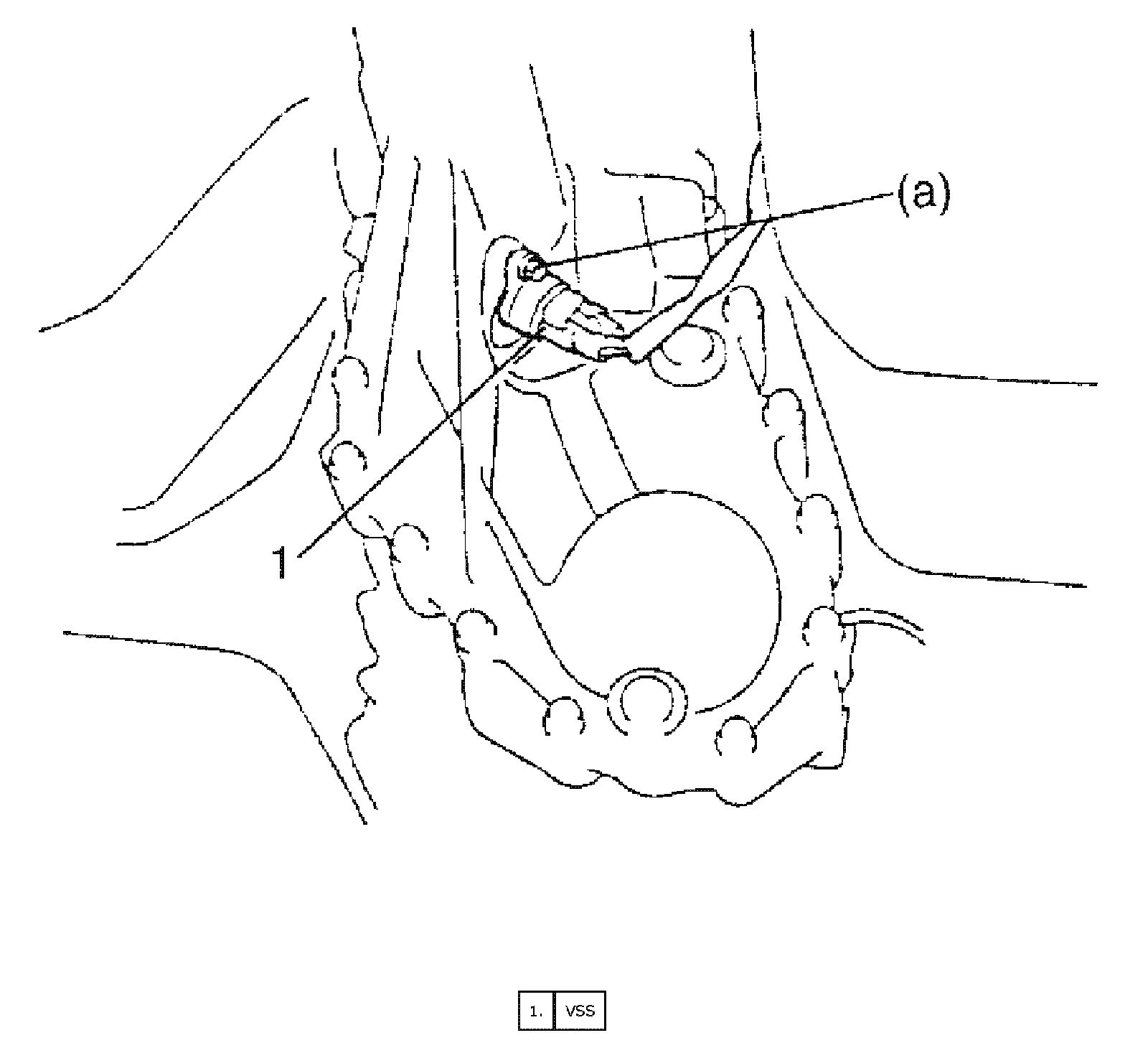

Disconnect coupler from
VSS (1).
3.

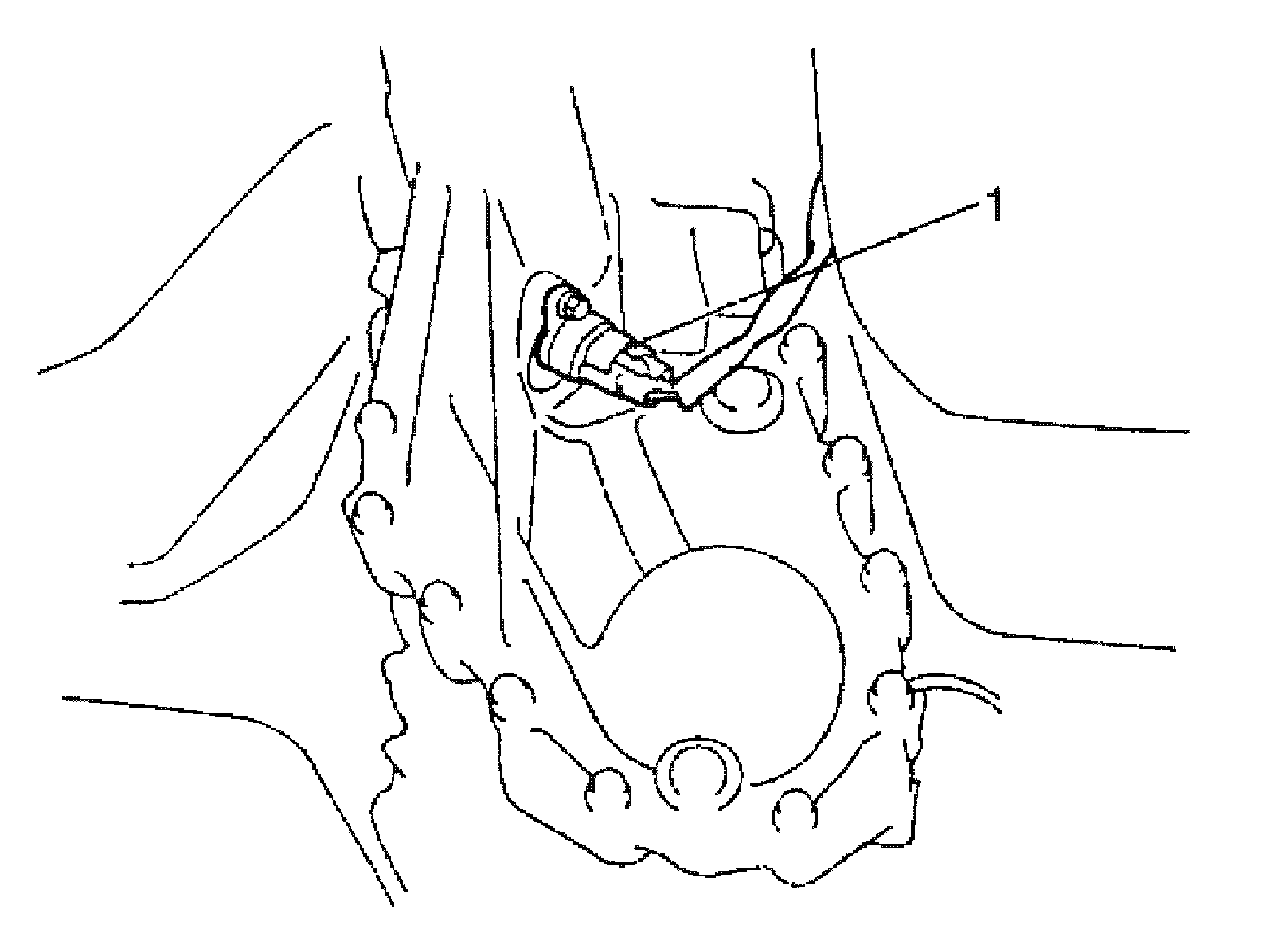

Remove
VSS (1).
InstallationReverse removal procedure for installation.
Tightening torque
Vehicle speed sensor bolt a:
5.5 N.m (0.55 kg.m, 4.0 lb.ft)
