A/C Signal Circuit Check

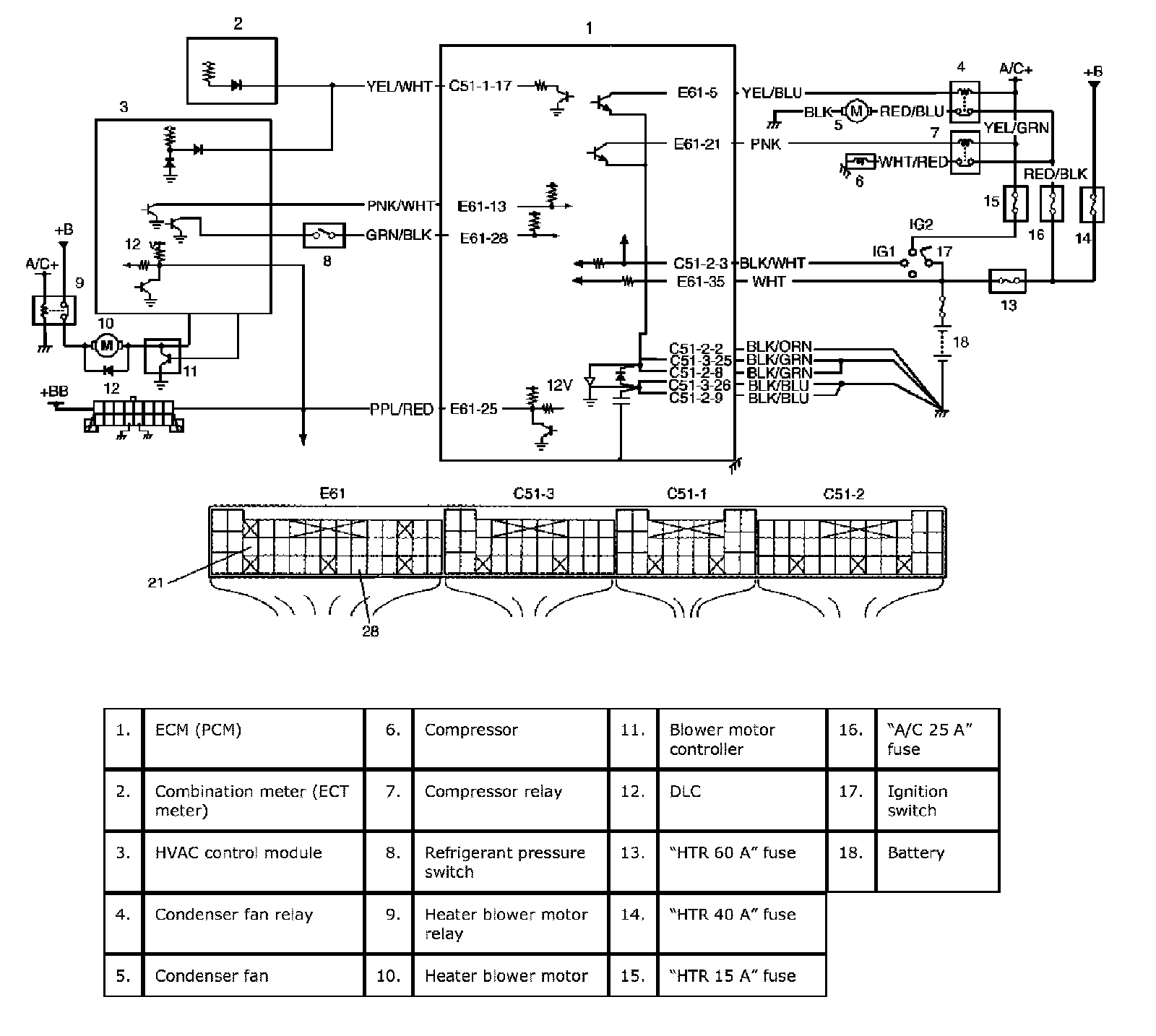

A/C Signal Circuit CheckWiring Diagram:
Wiring DiagramCircuit DescriptionHVAC control module outputs A/C ON signal to ECM (PCM) when A/C switch turned ON and heater blower motor turned ON.
Then compressor and condenser fan are turned ON by ECM (PCM) when engine conditions are as specified.
Step 1:
Troubleshooting
