Engine Control System

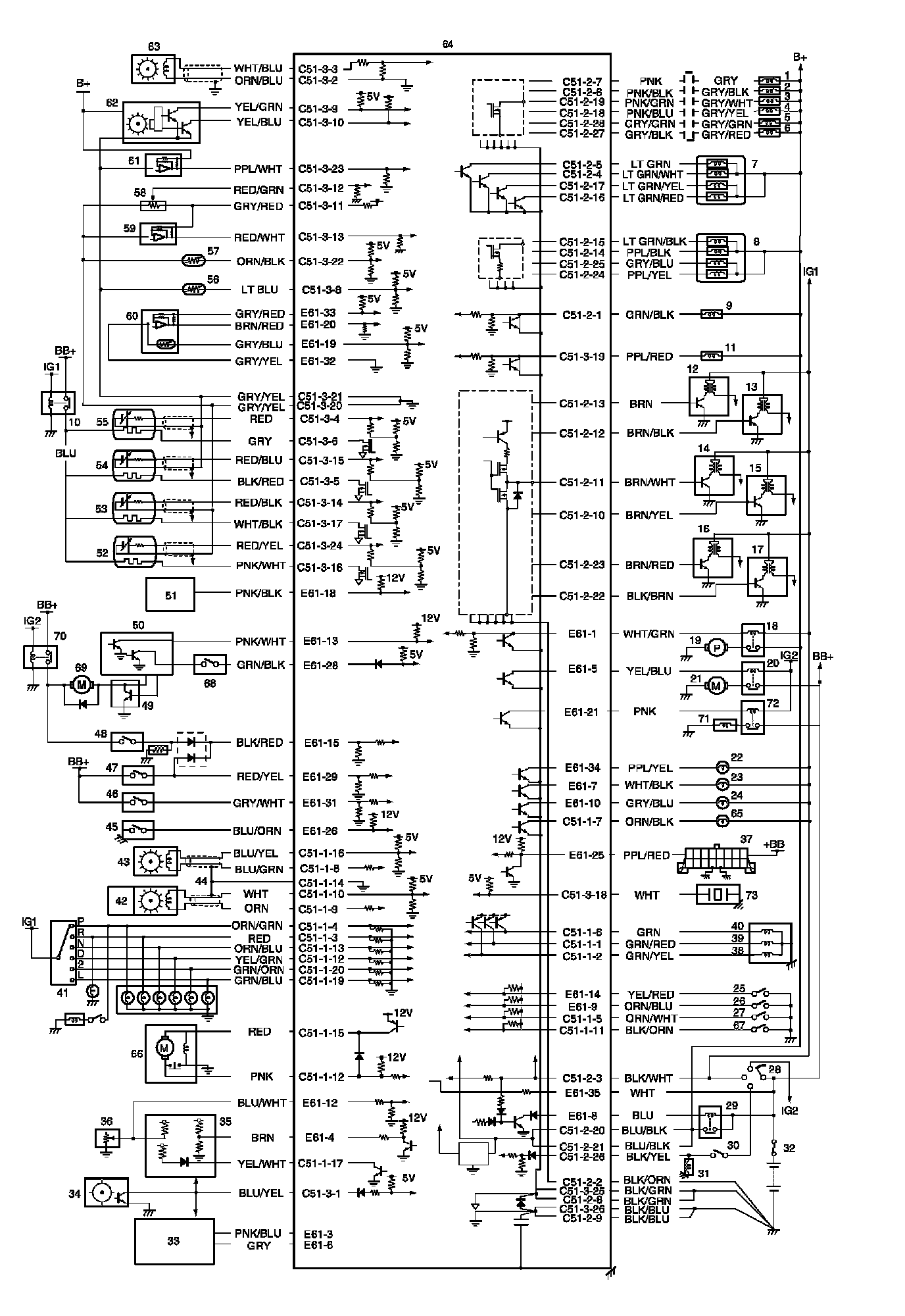

Electronic Control System Wiring Circuit Diagram:

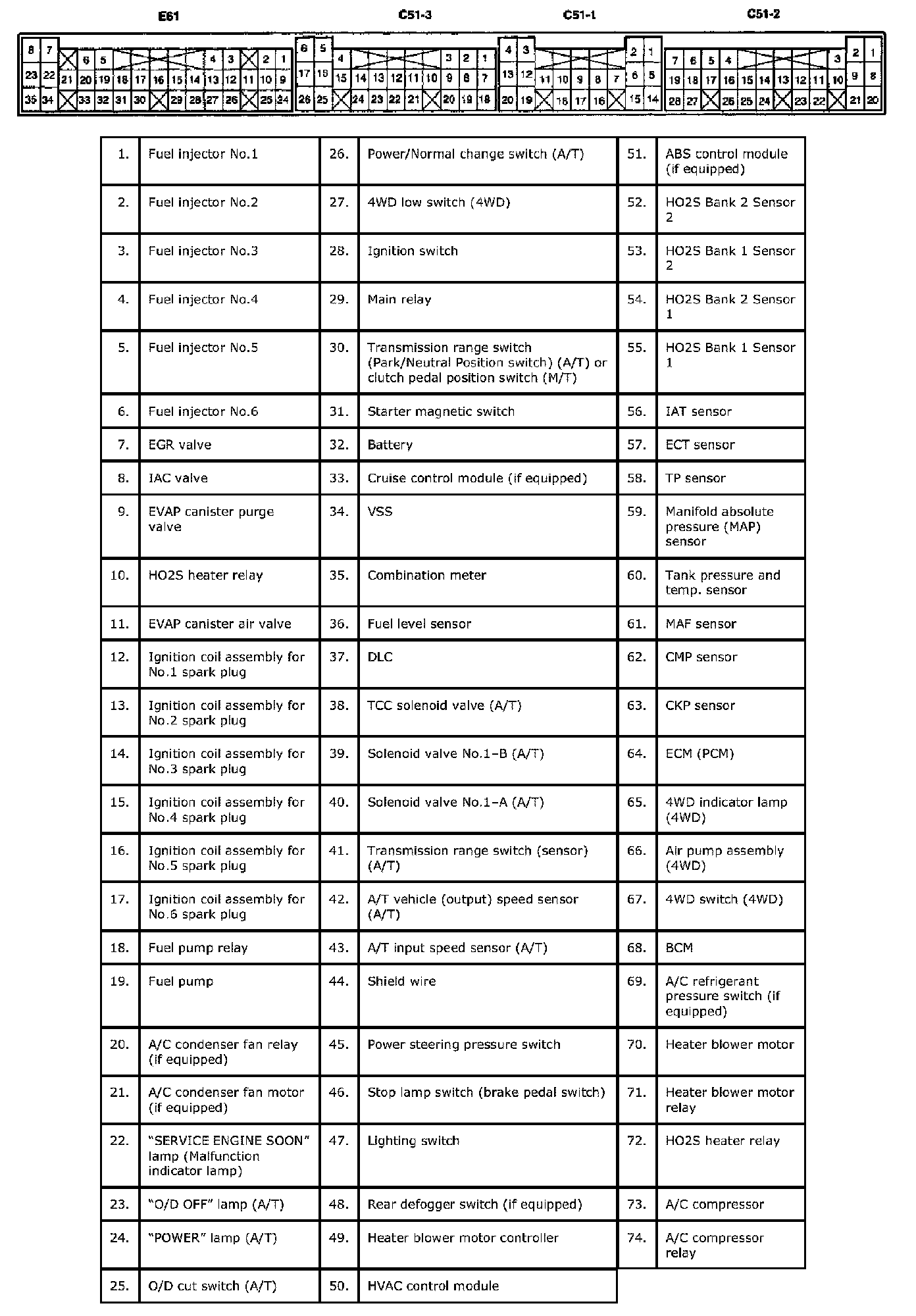

Terminal Arrangement Of ECM (PCM) Connector (Viewed From Harness Side) & Electronic Control System Wiring Circuit Diagram Components:

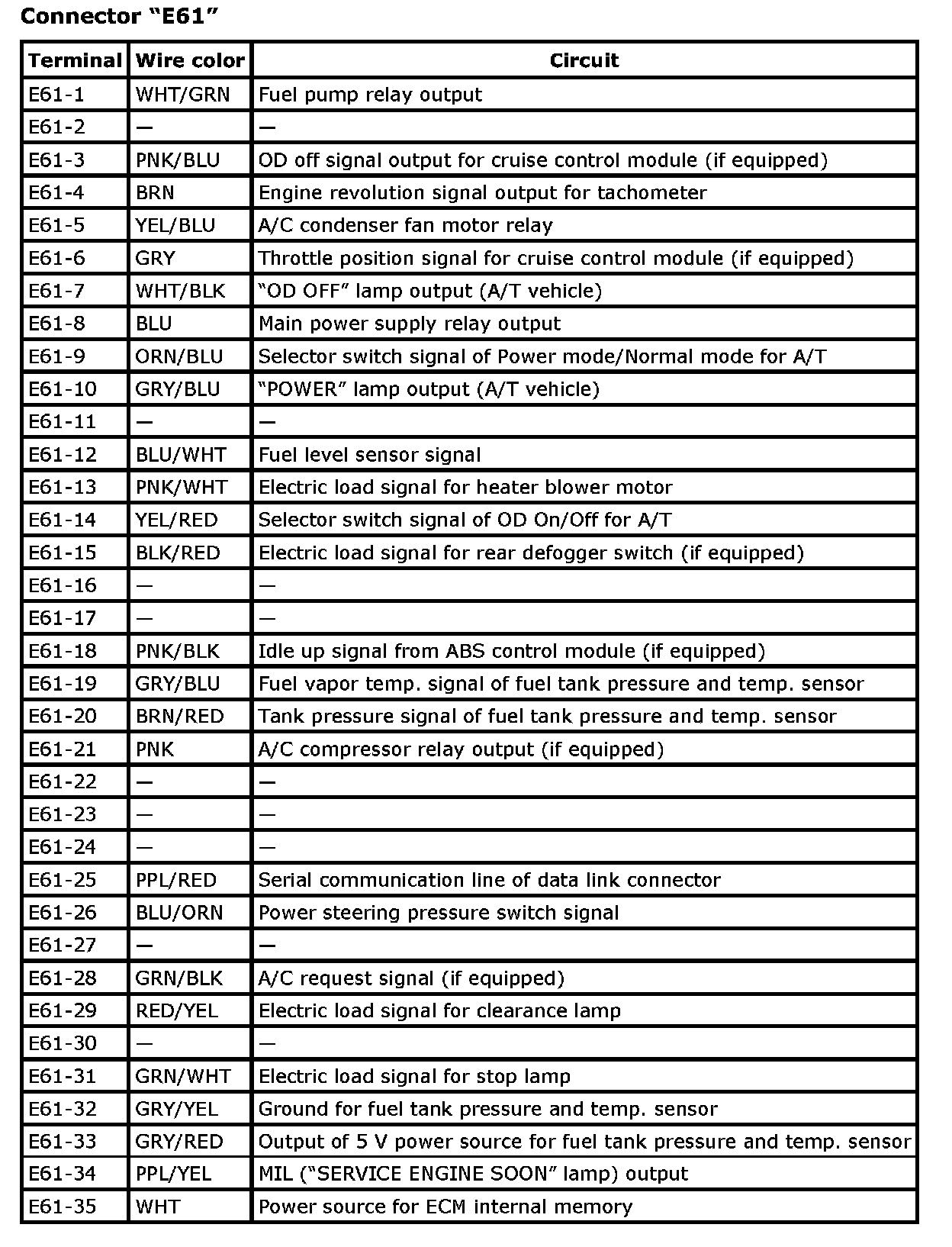

E61-1 - E61-35:

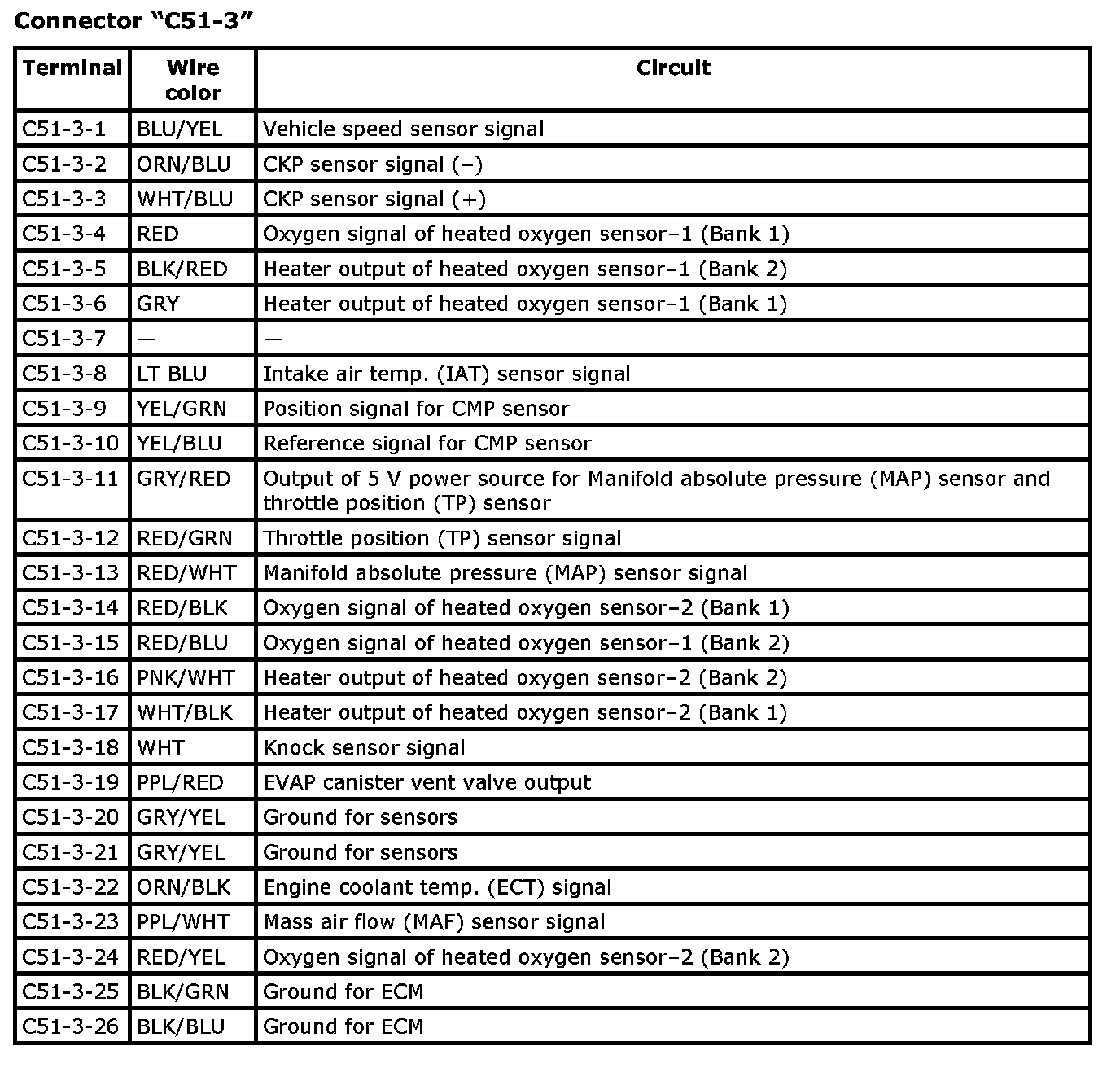

C51-3-1 - C51-3-26:

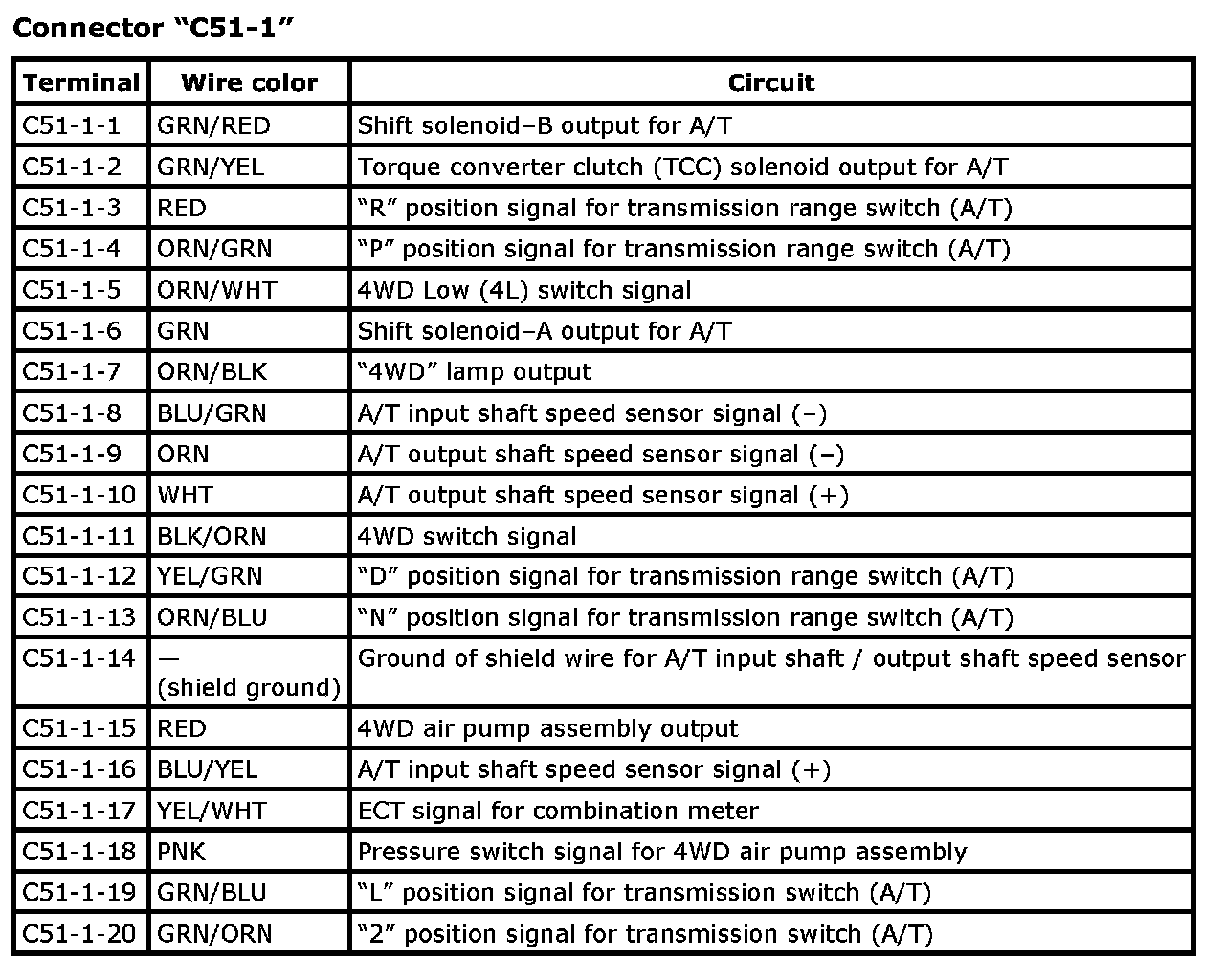

C51-1-1 - C51-1-20:

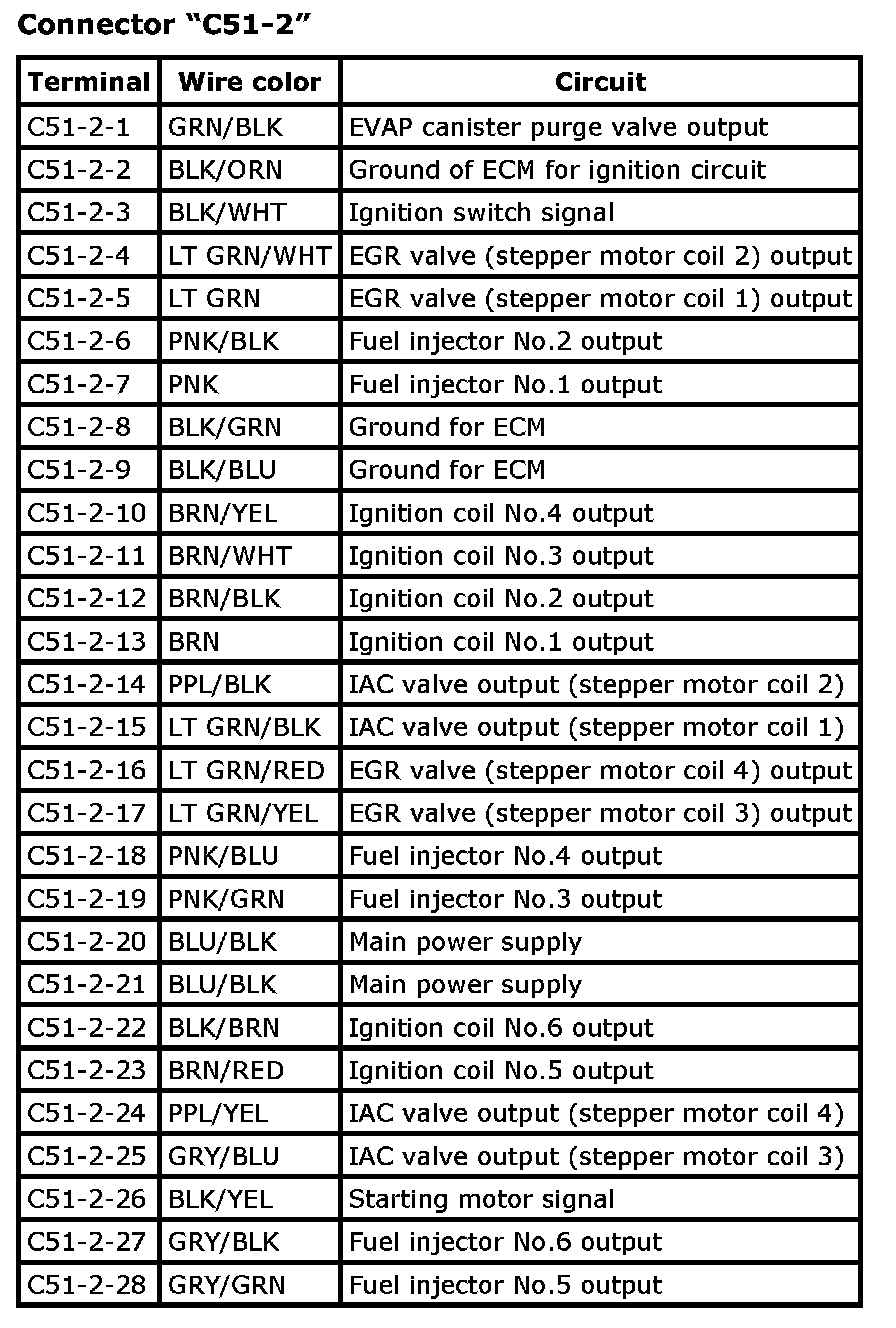

C51-2-1 - C51-2-28:
