Windshield Washer Switch: Service and Repair

Windshield Washer Level Switch Removal and Inspection

Removal
1. Remove left side front fender referring to Front Fender Removal and Installation.

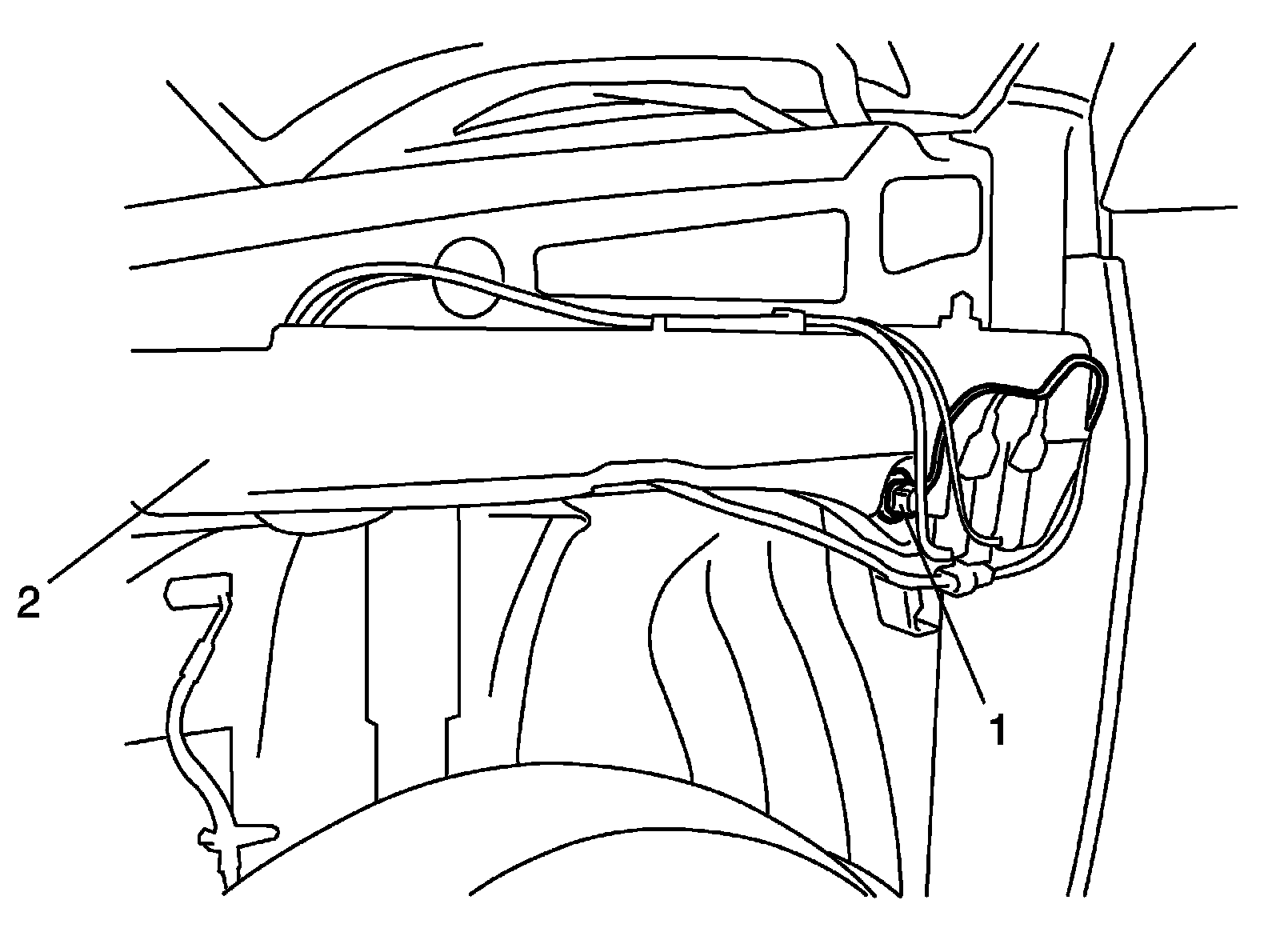

2. Remove windshield washer level switch (1) from windshield washer tank (2).

Installation
Reference: Windshield Washer Level Switch Inspection




Reverse removal procedure to install windshield washer level switch noting the following point.
Install windshield washer level switch as shown in the figure.
