Windshield Washer Switch: Testing and Inspection
Windshield Washer Level Switch InspectionReference: Windshield Washer Level Switch Removal and Inspection
Use an ohmmeter to check switch continuity. If found defective, replace switch.

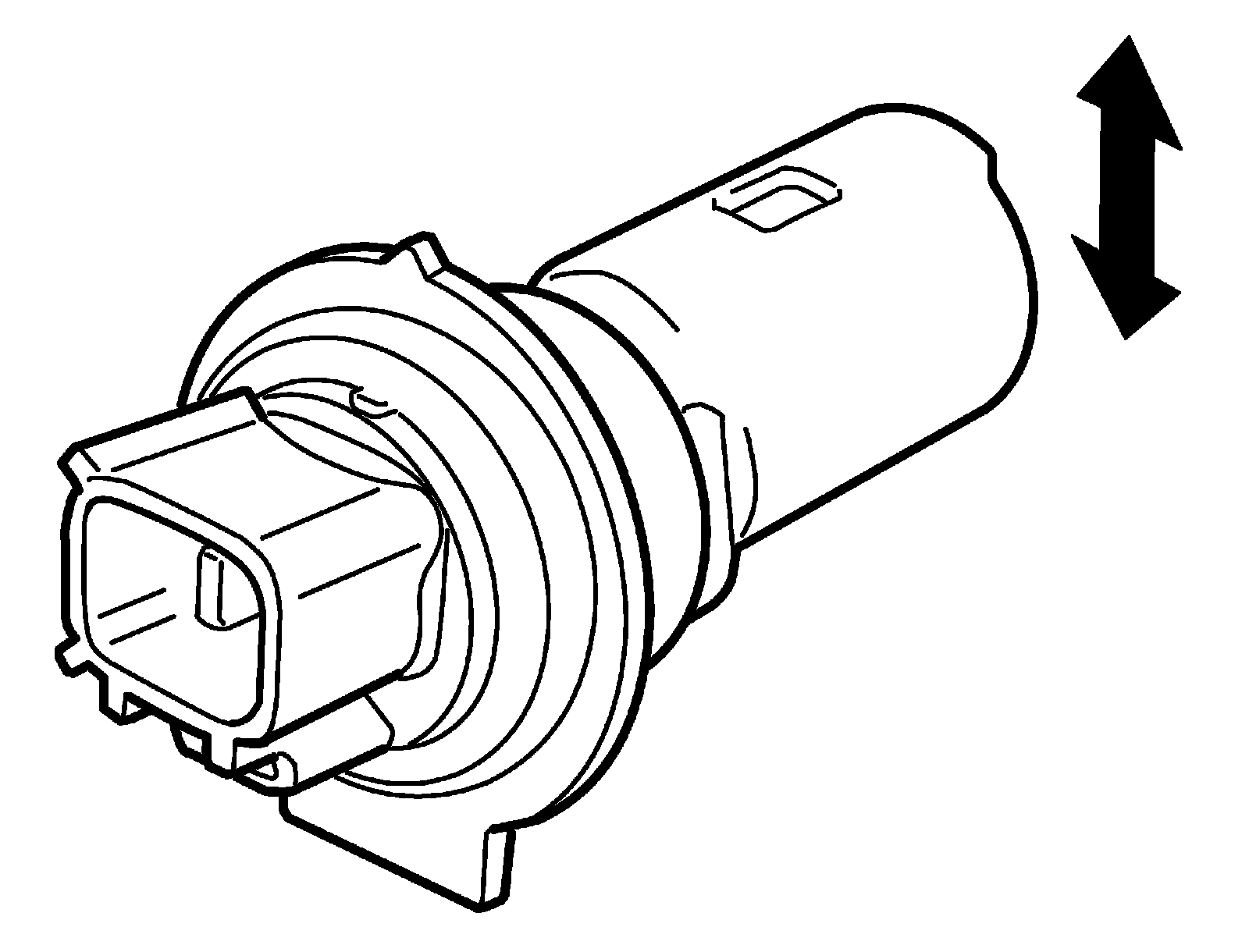

Windshield washer level switch specifications
OFF position (float up): No continuity
ON position (float down): Continuity
